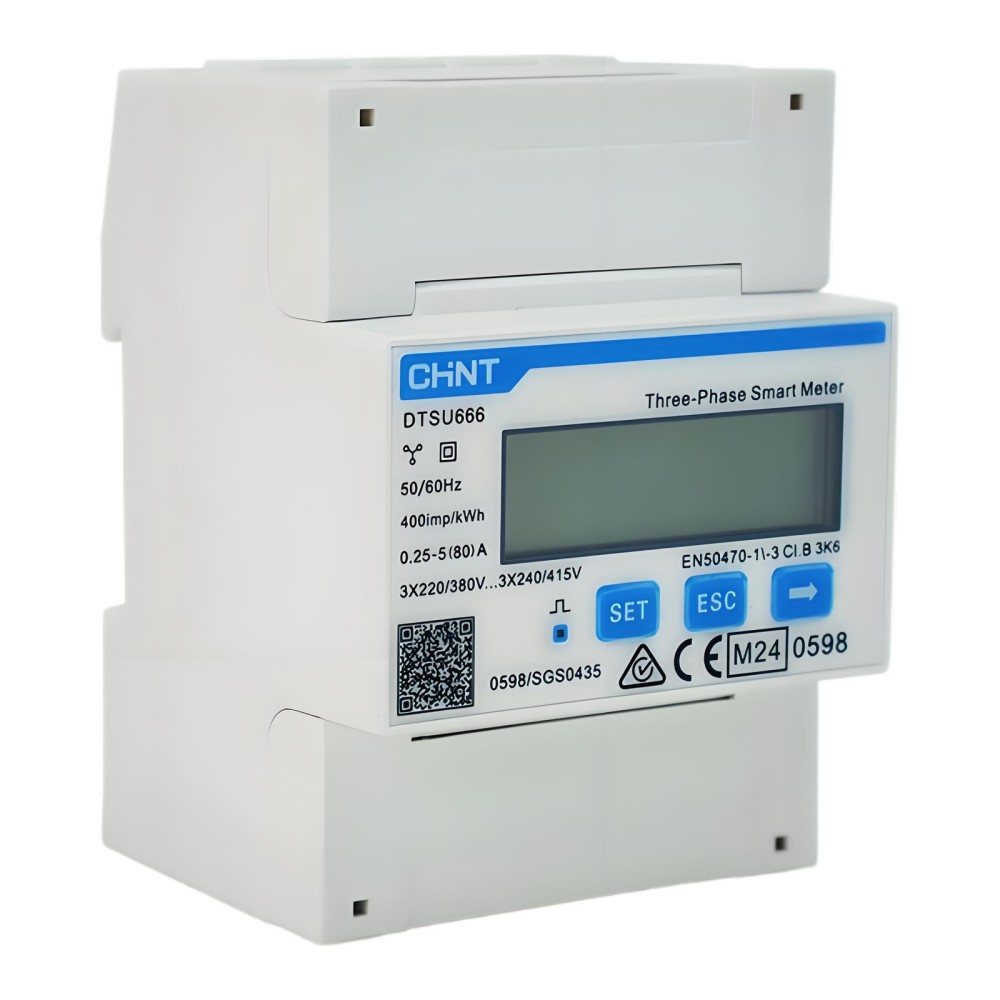

Contador CHINT trifásico, medición directa 80 A, Modbus RS485, DTSU666

Name: Contador CHINT trifásico, medición directa 80 A, Modbus RS485, DTSU666
Brand: CHINT
SKU: DTSU666
Price: 131.00 EUR
Availability: InStock

131 € Impuesto incluido

109 € Sin impuestos

DTSU666 is a CHINT three-phase (3P4W) energy meter, with direct measurement up to 80 A. It measures active and reactive energy in both directions, has accuracy class b (1.0), a current range of 0.25-5(80) A and communicates over RS485 Modbus-RTU. It mounts on a DIN rail and is used for feed-in limitation and consumption monitoring.

Referencia DTSU666

Sus derechos de garantía legal

DTSU666 - Three-phase energy meter with direct 80 A measurement

DTSU666 is a CHINT three-phase (3P4W) smart energy meter for DIN-rail mounting, with direct measurement up to 80 A. It measures imported and exported active and reactive energy, communicates over RS485 Modbus-RTU and has an LCD display.

Main features:

Type: Three-phase energy meter
Measurement: direct, up to 80 A
Current: 0.25-5(80) A
Accuracy class: B (1.0)
Communication: RS485, Modbus-RTU
Mounting: DIN rail
Certification: MID B+D

SOFAR manuals (HYD 5...20KTL-3PH, CH1000, 25-50KTLX-G3) name the CHINT DTSU666 meter for feed-in limitation and for measuring additional PV inverters.

The meter is wired directly into the measured circuit, without external current transformers; the maximum current is 80 A.

The meter measures energy and power (kW, kvar, kVA), current, voltage, frequency and power factor. The RS485 baud rate can be set from 1200 to 19200 bps (default 9600 bps); it operates from -25 to 55 °C, with IP20 protection.

Technical specifications

Manufacturer	CHINT
Model	DTSU666
Type	Smart energy meter, three-phase
Connection type	3P4W
Measurement	direct
Current range	0.25-5(80) A
Accuracy class	Class B (1.0)
Constant	800 imp/kWh
Nominal voltage	3 x 220/380 V ... 3 x 240/415 V
Operating range (voltage)	0.8 Un ... 1.15 Un
Power consumption	2 W, 10 VA
Frequency	50 Hz or 60 Hz
Communication	RS485, Modbus-RTU
Baud rate	1200, 2400, 4800, 9600 (default), 19200 bps
Measured values	import/export active and reactive energy (kWh, kvarh), instantaneous power (kW, kvar, kVA), current, voltage, frequency, power factor
Display	LCD with backlight
Pulse output	LED pulse indication
Compliance	EN 50470-1/-3, MID B+D certified
Operating temperature	-25 ... 55 °C
Storage temperature	-40 ... 70 °C
Maximum relative humidity	95 %, non-condensing
Ingress protection	IP20
Mounting	DIN rail
Dimensions (height x width x depth)	100 x 72 x 65 mm
Weight	0.33 kg (approx.)

Ficha de datos

Referencia: DTSU666
NMP: DTSU666
Tipo de producto: Sensores y contadores
Fases: Trifásico
Corriente nominal (valor exacto): 0,25-5(80) A
Tensión nominal: 3 x 220/380 V ... 3 x 240/415 V
Interfaces de comunicación: Modbus
RS485
Dimensiones (alto x ancho x fondo): 100 x 72 x 65 mm
Peso: 0,33 kg
Grado de protección (IP): IP20
Temperatura de funcionamiento: -25 ... 55 °C
Humedad relativa máxima: 95 %
Normas y conformidad: EN 50470-1/-3, MID B+D

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.

Ficha técnica (EN)
Descargar (493.79KB)
