CBS5000-BCU is the control unit of the SOFAR CBS5000 HV battery system. One unit manages 4 to 12 CBS5000-BMU modules (20.48-61.44 kWh), works at 600-1000 V and 50 A, communicates over CAN and is rated IP66. It weighs 24.5 kg, is ordered separately from the modules and contains no battery cells.

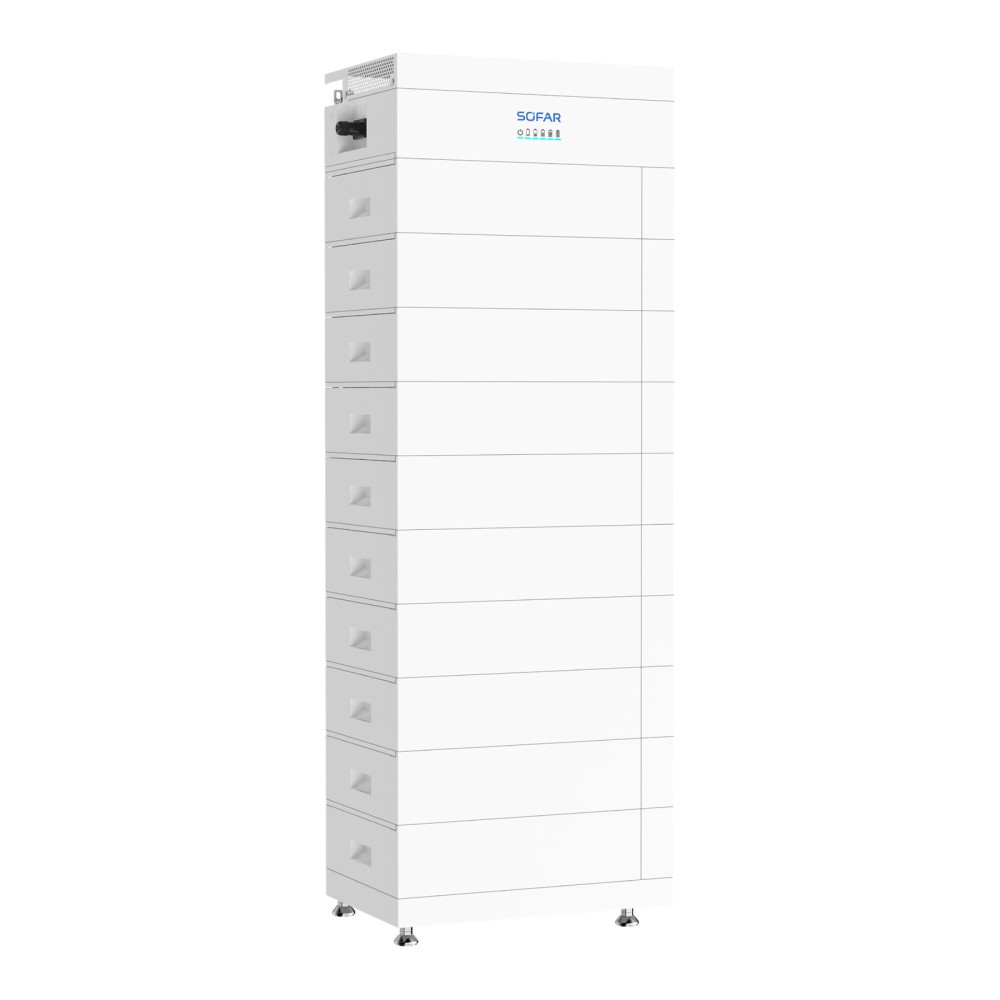

CBS5000-BCU is the control unit (BCU) of the SOFAR CBS5000 modular high-voltage battery system. One unit manages 4 to 12 CBS5000-BMU battery modules and connects to the hybrid inverter over CAN communication, at 600-1000 V.
A complete CBS5000 system consists of one control unit and 4-12 battery modules. The unit has a circuit breaker, a black start switch and the terminals that link it to the modules in the stack. The system grows in steps of 5.12 kWh and up to 4 stacks can run in parallel.
The manual of the HYD-40K...60K-T1 inverter describes the CBS5000 system as the battery for that inverter. The CBS5000-BMU modules are not included. The modules are stacked on top of each other with no cables between them, and at least two people are needed for the installation.
| Model | CBS5000-BCU |
|---|---|
| Number of units per system | 1 |
| Number of CBS5000-BMU modules managed | 4-12 |
| Operating voltage range | 600-1000 V |
| System nominal voltage | 600 V |
| Max. charging current | 50 A |
| Max. discharging current | 50 A |
| Total system energy | 20.48-61.44 kWh |
| System rated power | 10-30 kW |
| System peak output power | 20-60 kW, 10 s |
| Communication | CAN |
| Display | LED |
| Protective class | I |
| Ingress protection | IP66 |
| Installation | Floor mounted, stacked |
| Max. operating altitude | 4000 m (derating above 2000 m) |
| Max. systems in parallel | 4 |
| Dimensions (W x H x D) | 630 x 230 x 415 mm |
| Weight | 24.5 kg |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
