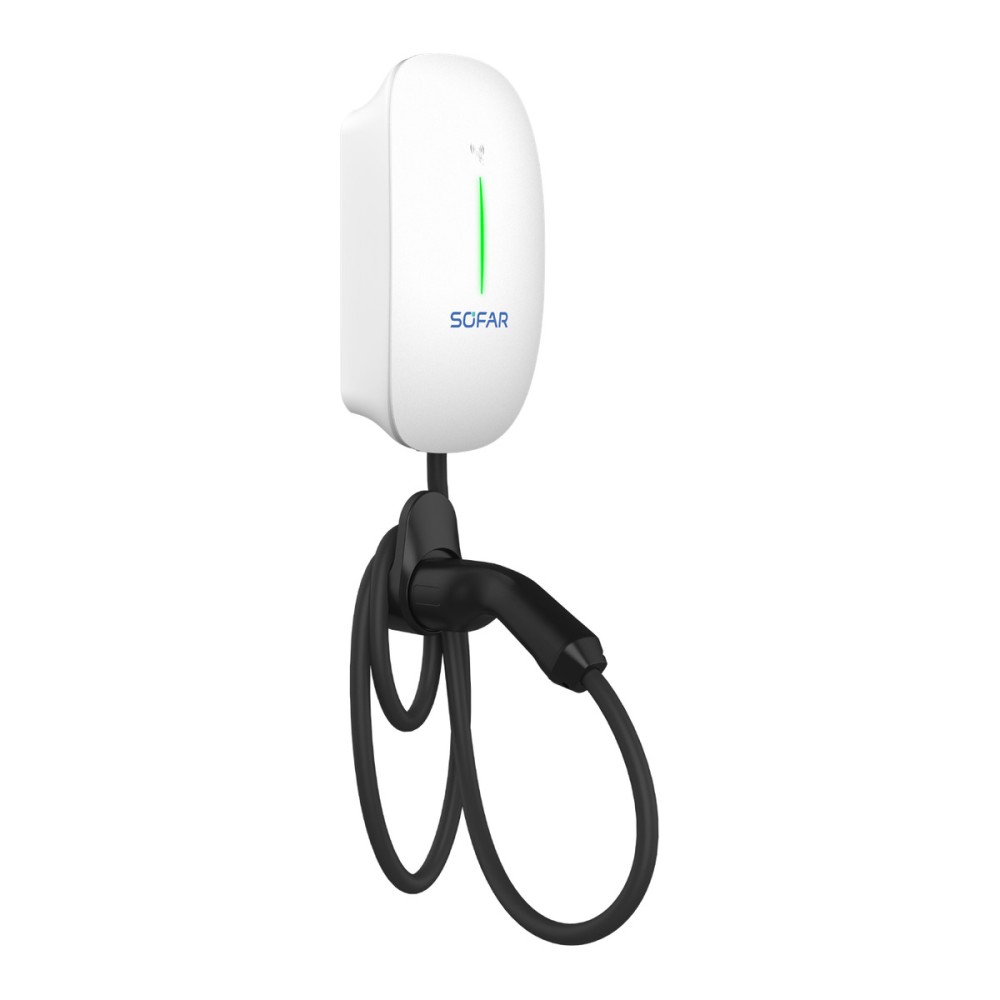

EV11K-AC-02 is an 11 kW three-phase charging station (3P/N/PE, 16 A) with a 7 m Type 2 cable, RFID card start and app control, including scheduled charging. It has a built-in meter, type A residual-current protection with 6 mA d.c. detection and IP65 protection, weighs 4.2 kg and is wall-mounted.
EV11K-AC-02 is an 11 kW three-phase AC charging station (wallbox) with a 7 m Type 2 cable, IP65 protection and wall mounting.
The charger is wall-mounted and connected to the electrical panel with a five-core cable; the RS485 link is used for communication with the SOFAR hybrid inverter. With SOFAR hybrid inverters, charging can start immediately, be scheduled (up to 4 rules) or run in ECO mode, where the charging power follows the PV production, from 6 A single-phase (1.4 kW) to 6-16 A per phase in three-phase operation (from 4.2 kW).
The charger protects against over- and under-voltage, overload, over- and under-frequency, over-temperature and surges, and supports TT and TN grounding systems. It operates from -30 to 50 °C, at 5-95% humidity and below 2000 m altitude, with natural cooling and UV resistance.
| Nominal charging power | 11 kW |
|---|---|
| Phases | 3P/N/PE |
| Nominal output voltage | 220-240 / 380-415 V c.a. |
| Max. output current | 16 A |
| Nominal AC frequency | 50 / 60 Hz |
| Vehicle connection | Type 2 cable |
| Charging cable length | 7 m |
| Protocol | OCPP 1.6 JSON |
| Communication | RS485 / Wi-Fi / BLE; optional Ethernet / 4G |
| Display | LED indicator / app |
| Metering | Integrated metering IC |
| Residual current protection | Type A + 6 mA d.c. detection |
| Over / under voltage protection | Supported |
| Overload protection | Supported |
| Over / under frequency protection | Supported |
| Over temperature protection | Supported |
| Surge protection | Supported |
| Grounding system | TT / TN |
| Dimensions (H x W x D) | 344 x 192 x 100 mm |
| Weight | 4.2 kg |
| Operating temperature range | -30 ... 50 °C |
| Ambient humidity | 5-95 % |
| Working altitude | Under 2000 m |
| Cooling mode | Natural |
| Ingress protection | IP65 |
| Installation method | Wall-mounted |
| Standards | EN IEC 61851-1, IEC 62955, IEC 61851-21-2, EN IEC 61000-6-1, EN 61000-6-3, EN 300 328, EN 300 330, EN 62311, EN 301 489-1, EN 301 489-3, EN 301 489-17 |
