CBS5000-BCU is the control unit of the SOFAR CBS5000 HV battery system. One unit manages 4 to 12 CBS5000-BMU modules (20.48-61.44 kWh), works at 600-1000 V and 50 A, communicates over CAN and is rated IP66. It weighs 24.5 kg, is ordered separately from the modules and contains no battery cells.
CBS5000-BCU is the control unit (BCU) of the SOFAR CBS5000 modular high-voltage battery system. One unit manages 4 to 12 CBS5000-BMU battery modules and connects to the hybrid inverter over CAN communication, at 600-1000 V.

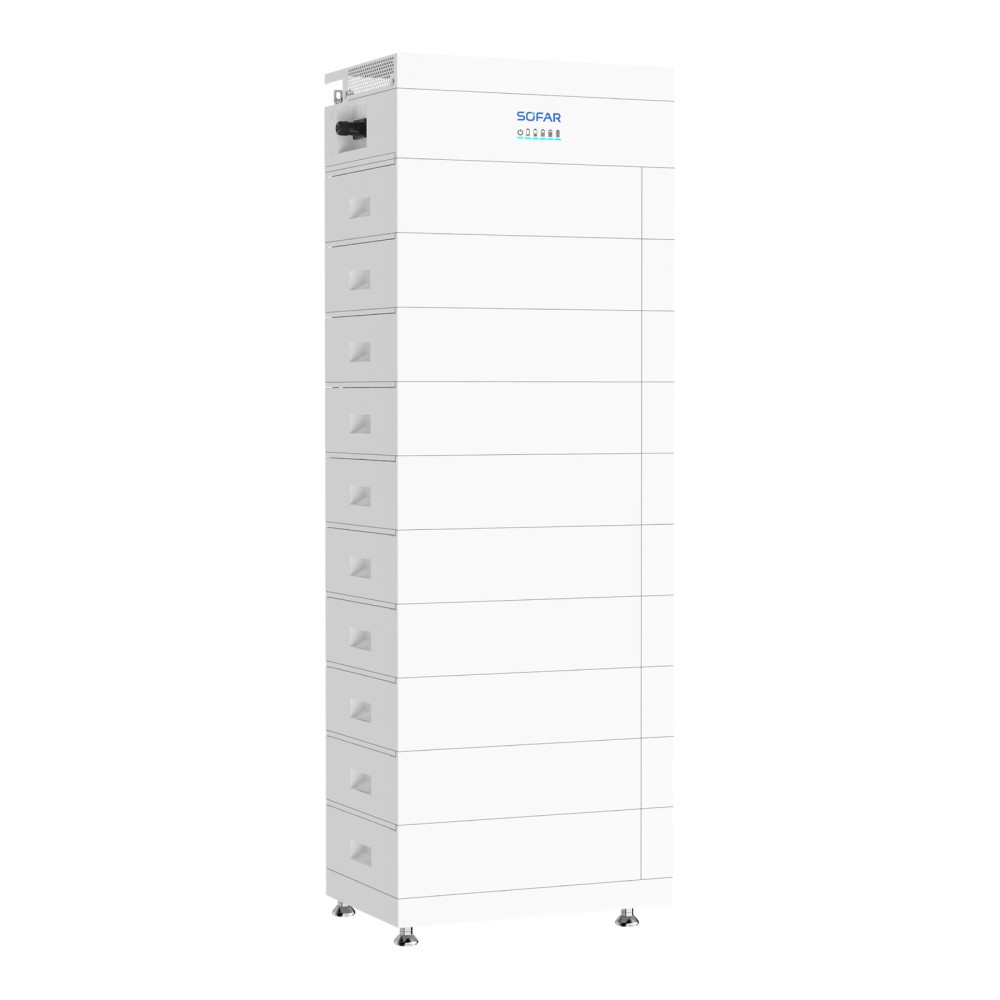

A complete CBS5000 system consists of one control unit and 4-12 battery modules. The unit has a circuit breaker, a black start switch and the terminals that link it to the modules in the stack. The system grows in steps of 5.12 kWh and up to 4 stacks can run in parallel.
The manual of the HYD-40K...60K-T1 inverter describes the CBS5000 system as the battery for that inverter. The CBS5000-BMU modules are not included. The modules are stacked on top of each other with no cables between them, and at least two people are needed for the installation.
| Model | CBS5000-BCU |
|---|---|
| Number of units per system | 1 |
| Number of CBS5000-BMU modules managed | 4-12 |
| Operating voltage range | 600-1000 V |
| System nominal voltage | 600 V |
| Max. charging current | 50 A |
| Max. discharging current | 50 A |
| Total system energy | 20.48-61.44 kWh |
| System rated power | 10-30 kW |
| System peak output power | 20-60 kW, 10 s |
| Communication | CAN |
| Display | LED |
| Protective class | I |
| Ingress protection | IP66 |
| Installation | Floor mounted, stacked |
| Max. operating altitude | 4000 m (derating above 2000 m) |
| Max. systems in parallel | 4 |
| Dimensions (W x H x D) | 630 x 230 x 415 mm |
| Weight | 24.5 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
