64.668 € Sin impuestos

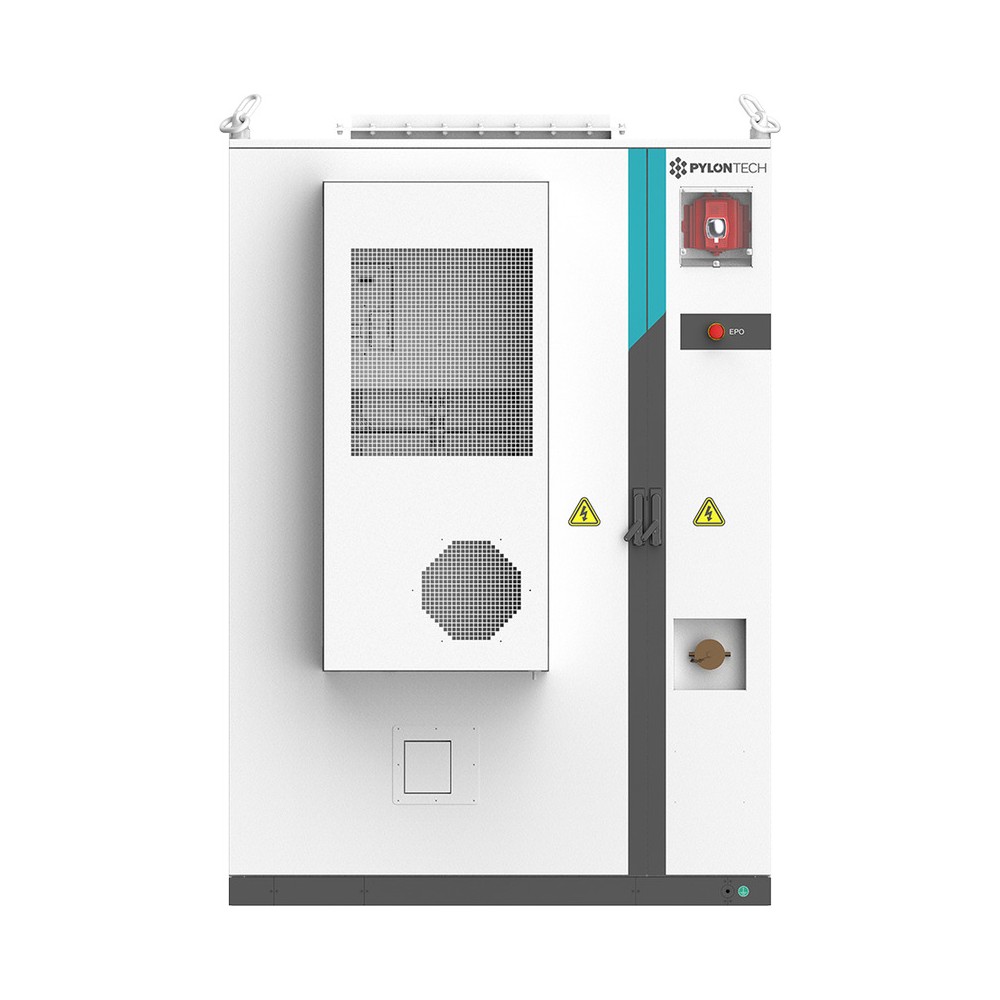

A300-HY in the 100 kW / 219 kWh configuration is a Pylontech OPTIM US hybrid cabinet with LFP batteries and two integrated 50 kW inverters, with a 400 V, 50/60 Hz AC output, IP55 protection and air cooling. The energy of one cabinet can be 219, 250 or 313 kWh, and the system extends up to 5 cabinets, from 156.8 to 1565 kWh and from 50 to 500 kW.
A300-HY 100 kW / 219 kWh is a hybrid energy storage system from the Pylontech OPTIM US series, built as a cabinet for commercial and industrial applications. It uses lithium iron phosphate (LFP) batteries and 50 kW hybrid inverters; this configuration has two inverters (100 kW) and 219 kWh of energy per cabinet.
The battery data in the datasheet refers to the nominal 313 kWh configuration with a single string: DC voltage range 560-720 V, maximum operation current 180 x 2 A, nominal operation current 122.5 x 2 A, depth of discharge 98 %, cycle life above 7000 and round-trip efficiency of 96 %.
The integrated hybrid inverter has a maximum AC current of 76 A (linear load), an overload capacity of 110 %, a power factor above 0.99 and a CEC efficiency of 97.4 %. The datasheet lists peak shaving, energy shifting, self-consumption and backup functions. Fire extinguishing is by aerosol.
| Battery type | LFP (lithium iron phosphate) |
|---|---|
| Nominal energy | 219 / 250 / 313 kWh per cabinet (nominal 313 kWh) |
| DC voltage range | 560-720 V (single string, 313 kWh configuration) |
| Maximum operation current | 180 x 2 A |
| Nominal operation current | 122.5 x 2 A |
| Depth of discharge | 98 % (single string) |
| Cycle life | >7000 |
| Round-trip efficiency | 96 % at 0.5C |
| Rated AC power | 50 kW or 100 kW (1 or 2 inverters of 50 kW per cabinet) |
| Rated AC output voltage | 400 V |
| Rated AC output frequency | 50/60 Hz |
| Maximum AC output current | 76 A (linear load) |
| Overload capacity | 110 % |
| Power factor | >0.99 (0.8 leading ... 0.8 lagging) |
| CEC efficiency | 97.4 % (max. 97.8 %) |
| Isolation type | Non-isolated |
| On/off-grid switching | <10 ms (on-grid to off-grid) |
| Communication | RS485 (Modbus RTU), LAN (Modbus TCP/IP), CAN |
| System configuration | Up to 5 cabinets: 156.8-1565 kWh, 50-500 kW |
| Working temperature range | -20 ... 55 °C (derating below 10 °C and above 40 °C) |
| Protection class | IP55 |
| Altitude | 3000 m |
| Humidity | 0-95 % |
| Fire extinguishing | Aerosol |
| Cooling system | Air cooling, 5 kW cooling / 6.4 kW heating |
| Auxiliary power consumption | 2.35 kW continuous / 4.26 kW peak (incl. HVAC) |
| Anti-corrosion | C3 |
| Certification | UN38.3, UN 3480, IEC 62619, IEC 62040-1, CE, UKCA (EMC/RED), VDE 2510-50, UL 1973, UL 9540A, G99, VDE-AR-N 4105, EN 50549-1, EN 50549-10, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 |
| Dimension (W x D x H) | 1500 x 1300 x 2200 mm (without inverter) |
| Weight | 3500 kg |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
