696 € Tasse escluse

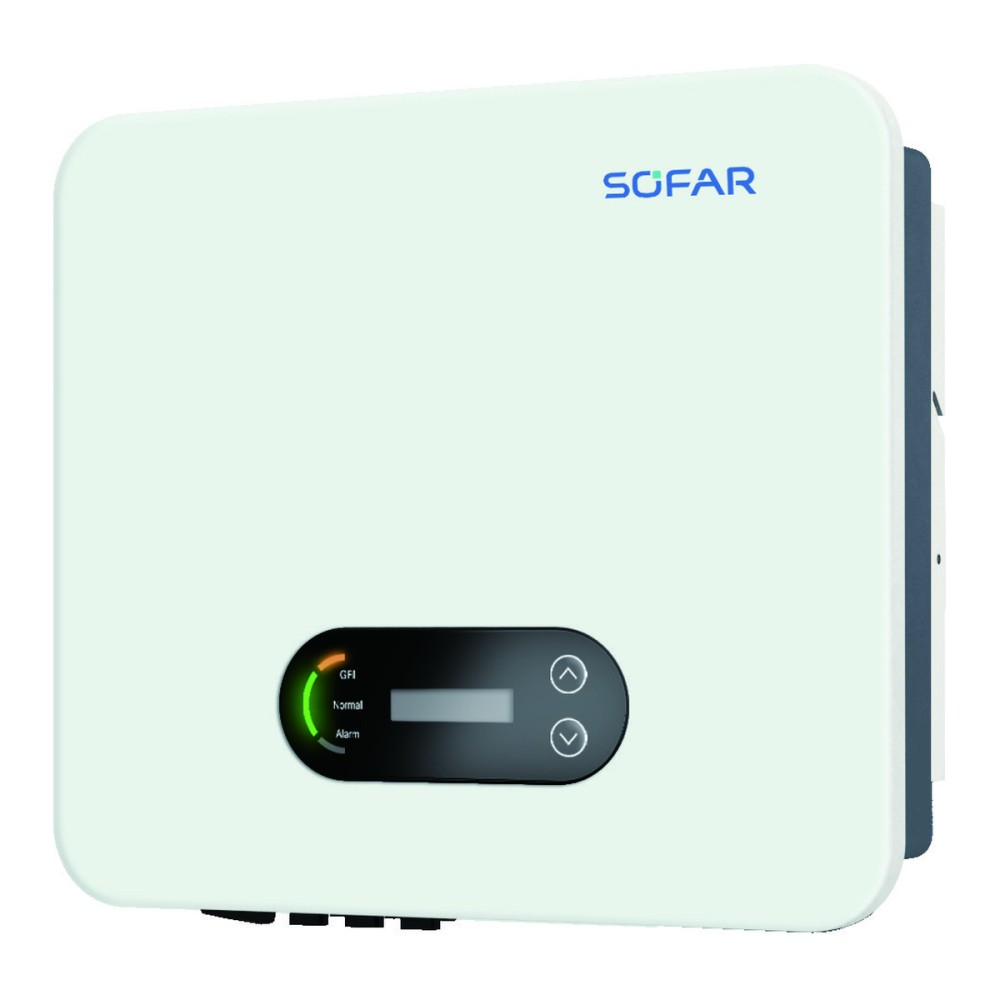

8.8KTLX-G3-A is a three-phase SOFAR on-grid inverter of 8 kW (maximum apparent power 8.8 kVA), with 2 MPPT, an MPPT range of 140-1000 V and a maximum DC input voltage of 1100 V. The maximum efficiency is 98.5%, the maximum AC output current is 13.3 A and the protection rating is IP65. The dimensions are 430 x 385 x 182 mm (width x height x depth) and the weight is 18 kg.
8.8KTLX-G3-A is a three-phase SOFAR on-grid inverter with a rated output power of 8 kW (8.8 kVA maximum apparent power), two MPPT trackers, a DC input of up to 1100 V and a maximum efficiency of 98.5%. It has IP65 protection, natural cooling without a fan and weighs 18 kg.
The inverter connects to the three-phase 230/400 V grid (310-480 V, 50/60 Hz) and has two independent MPPT trackers with a DC input of up to 1100 V, which allows longer strings. The maximum input current is 15 A / 30 A per MPPT and the PV short-circuit current is 22.5 A / 45 A. The -A version has three DC inputs (one on MPPT 1 and two on MPPT 2, with 15 A / 30 A per MPPT), against two inputs on the 8.8KTLX-G3.
The protections include DC reverse polarity, anti-islanding, leakage current, ground fault monitoring and PV string fault monitoring, a DC switch and type II surge protection on the DC and AC sides. The inverter offers string-level monitoring and remote firmware upgrade, with natural cooling and no fan; the LCD display and the Bluetooth connection with an app allow commissioning. A stick logger (Wi-Fi, GPRS or Ethernet) can be added as an option for remote monitoring. It operates between -30 and +60 °C, up to 4000 m altitude.
| Max. DC input voltage | 1100 V |
|---|---|
| Rated input voltage | 650 V |
| Start-up voltage | 160 V |
| MPPT operating voltage range | 140-1000 V |
| Number of MPP trackers | 2 |
| Number of DC inputs | 3 (MPPT 1: 1, MPPT 2: 2) |
| Max. input current per MPPT | 15 A / 30 A |
| Max. short-circuit current per MPPT | 22.5 A / 45 A |
| Rated output power | 8000 W |
| Max. apparent power | 8800 VA |
| Max. output current | 13.3 A |
| Rated output voltage | 3/N/PE, 230/400 V AC |
| Output voltage range | 310-480 V AC |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100% |
| Total harmonic distortion of current (THDi) | under 3% |
| Power factor | 1 (adjustable +/-0.8) |
| Max. efficiency | 98.5% |
| European efficiency | 98.0% |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection | type II on the DC and AC sides |
| Ambient temperature range | -30 ... +60 °C |
| Self-consumption at night | under 1 W |
| Topology | transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0-100% |
| Max. operating altitude | 4000 m |
| Cooling | natural |
| Dimensions (W x H x D) | 430 x 385 x 182 mm |
| Weight | 18 kg |
| Display | LCD and Bluetooth with app |
| Communication | RS485, Bluetooth; optional Wi-Fi |
| Standards | IEC/EN 62109-1/2, IEC 62116, IEC 61727, G98/G99, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, UNE 217002-2020 |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
Le compatibilità sono calcolate automaticamente dai dati tecnici dei produttori e hanno carattere informativo. Per impianti complessi consigliamo di far verificare la configurazione da un consulente prima dell’ordine. Dettagli nei Termini e condizioni
