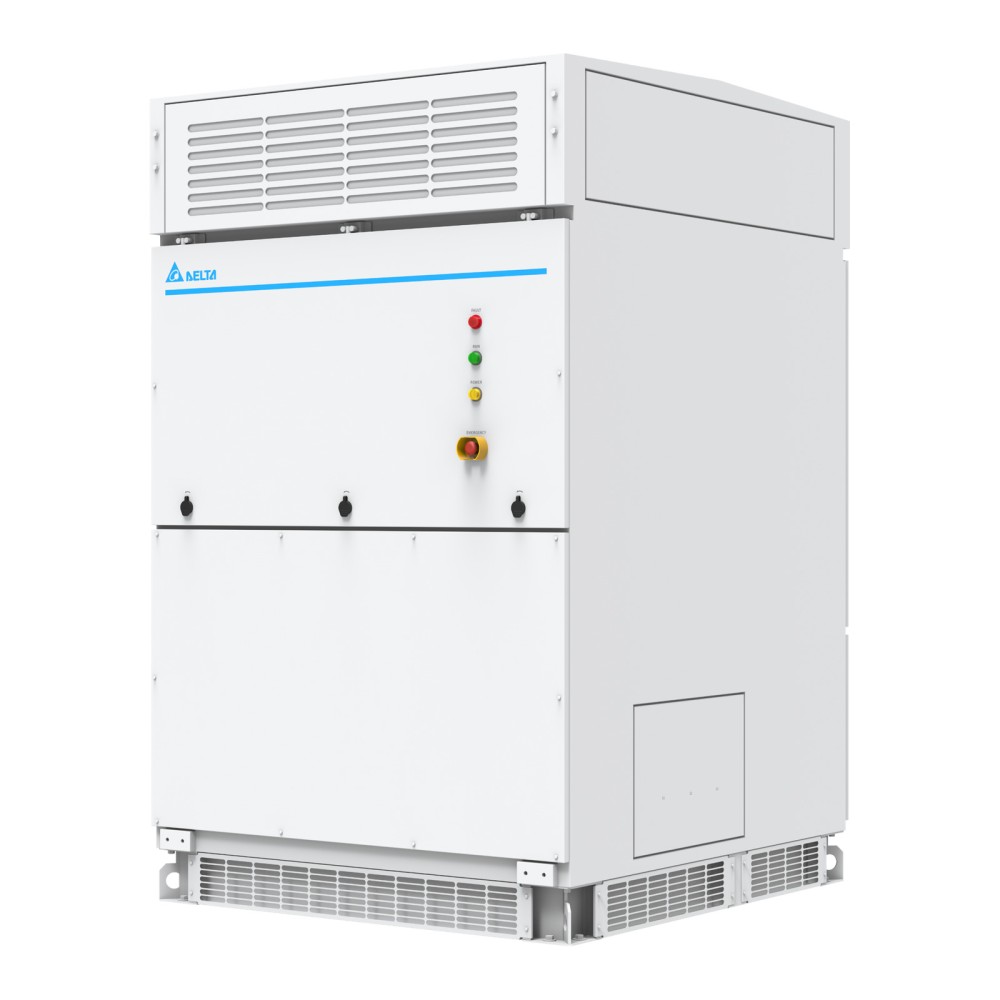

PCSC3556 is a 3556 kVA Delta bidirectional power conversion system for grid-connected energy storage systems, with a DC voltage up to 1500 V, an AC voltage of 690 V and a CEC efficiency of 98.5 %. It has a modular design, is independent of the battery technology and can be extended up to 10 MW by paralleling.
PCSC3556 is a Delta bidirectional power conversion system (PCS) for large-scale energy storage systems, with an apparent power of 3556 kVA. It works with a DC voltage up to 1500 V and an AC voltage of 690 V and is independent of the battery technology.
The manufacturer page describes PCSC2782 / PCSC3556 as a bidirectional inverter for grid applications: power backup, peak shaving, PV self-consumption and PV smoothing. The series covers powers from 2782 to 3556 kVA.
The converter offers advanced P/Q and frequency / voltage control, automatic voltage and frequency regulation, utility-grade protection for harsh environments and operation in DC and AC-coupled systems.
| Nominal AC power | 3556 kVA |
|---|---|
| Rated AC output voltage | 690 V |
| DC voltage range | up to 1500 V |
| CEC efficiency | 98.5 % |
| Nominal power | PCSC2782 / PCSC3556 series: 2782-3556 kVA |
| System configuration | Extendable to 10 MW via paralleling |
| Battery compatibility | Battery technology independent |
| Applications | Power backup, peak shaving, energy shifting, PV self-consumption, PV smoothing |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica del produttore.
