L5000-BAT is a 20 ft Pylontech battery container with a system capacity of 5016 kWh, a DC voltage of 1164-1497 V, liquid cooling (38 kW HVAC), IP55 protection, aerosol fire extinguishing and RS485, CAN and Ethernet communication. The configurations in the datasheet range from 3344 to 5016 kWh, with system power between 1000 and 2500 kW at 0.5C.

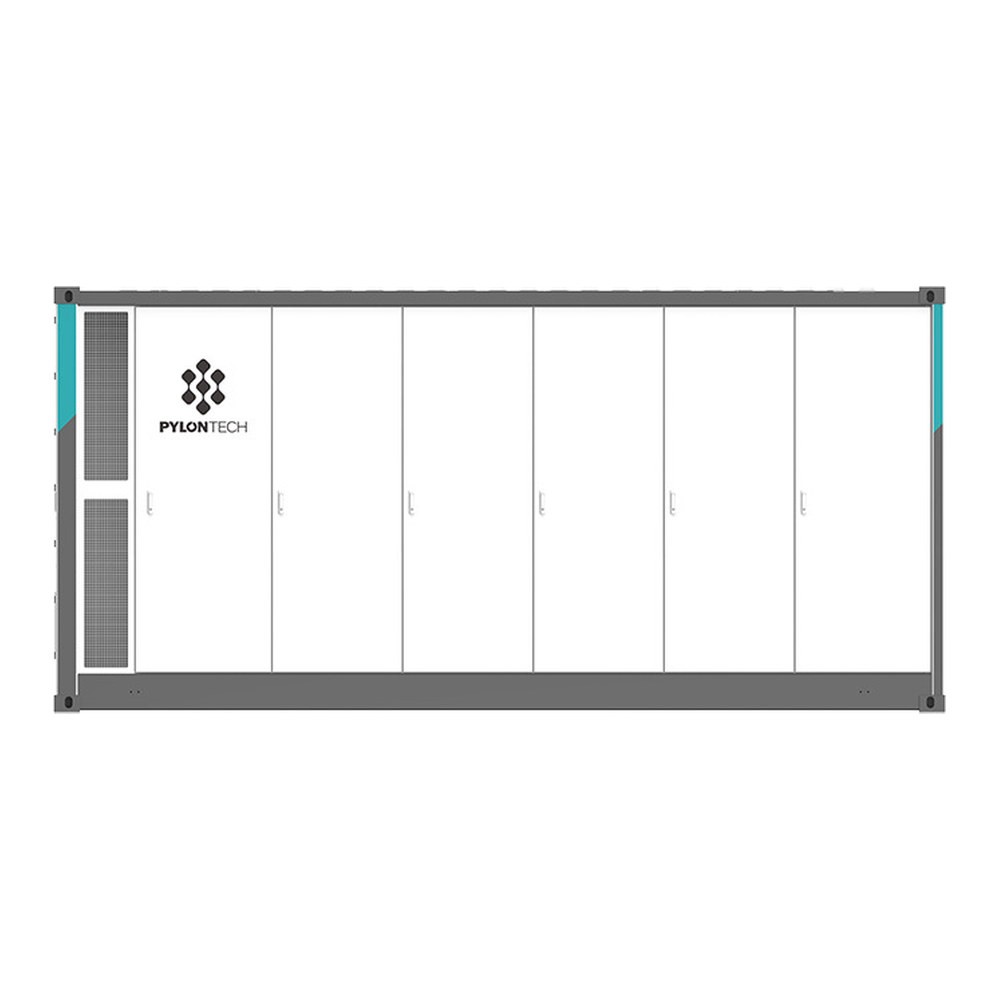

L5000-BAT 5016 kWh is a 20 ft lithium iron phosphate (LFP) battery container from the Pylontech range, with a system capacity of 5016 kWh and liquid cooling. Its operating voltage is DC, 1164-1497 V, and it is designed for peak shaving, energy shifting, self-consumption and electricity arbitrage.
The datasheet gives this container a depth of discharge of 98 % for a single string and a cycle life above 8500. The auxiliary consumption, including HVAC, is 40 kW and the anti-corrosion class is C3H (C5 optional).
The container has a DC output voltage and the datasheet contains no converter data; the system power of 1000-2500 kW refers to the 3344-5016 kWh configurations at 0.5C. The dimensions are those of the 20 ft container.
| System capacity | 5016 kWh |
|---|---|
| Depth of discharge | 98 % (single string) |
| Cycle life | >8500 |
| DC voltage range | 1164-1497 V |
| System configuration | Configurations: 3344-5016 kWh; 1000-2500 kW at 0.5C |
| Communication | RS485, CAN, Ethernet |
| Operation logic | Peak shaving, energy shifting, self-consumption, electricity arbitrage |
| Working temperature range | -20 ... 50 °C (derating below 10 °C and above 40 °C) |
| Protection class | IP55 |
| Altitude | 4000 m |
| Humidity | 5-95 % |
| Fire extinguishing | Aerosol |
| Cooling system | Liquid cooling, HVAC 38 kW |
| Auxiliary power consumption | 40 kW (incl. HVAC) |
| Anti-corrosion | C3H (C5 optional) |
| Certification | IEC 62619, IEC 62040-1, CE, VDE 2510-50, UL 1973, UL 9540A (partial application in progress) |
| Dimension (W x D x H) | 6058 x 2438 x 2896 mm |
| Weight | 43000 kg |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
