A1000-OMNI is a 10 ft Pylontech storage container with a system capacity of 1034.88 kWh, an integrated 500 kW converter, a 400 V AC (±15 %) output at 50/60 Hz, air cooling (15 kW HVAC), IP54 protection and aerosol fire extinguishing. The configurations in the datasheet are 690, 862 and 1035 kWh, between 250 and 500 kW.

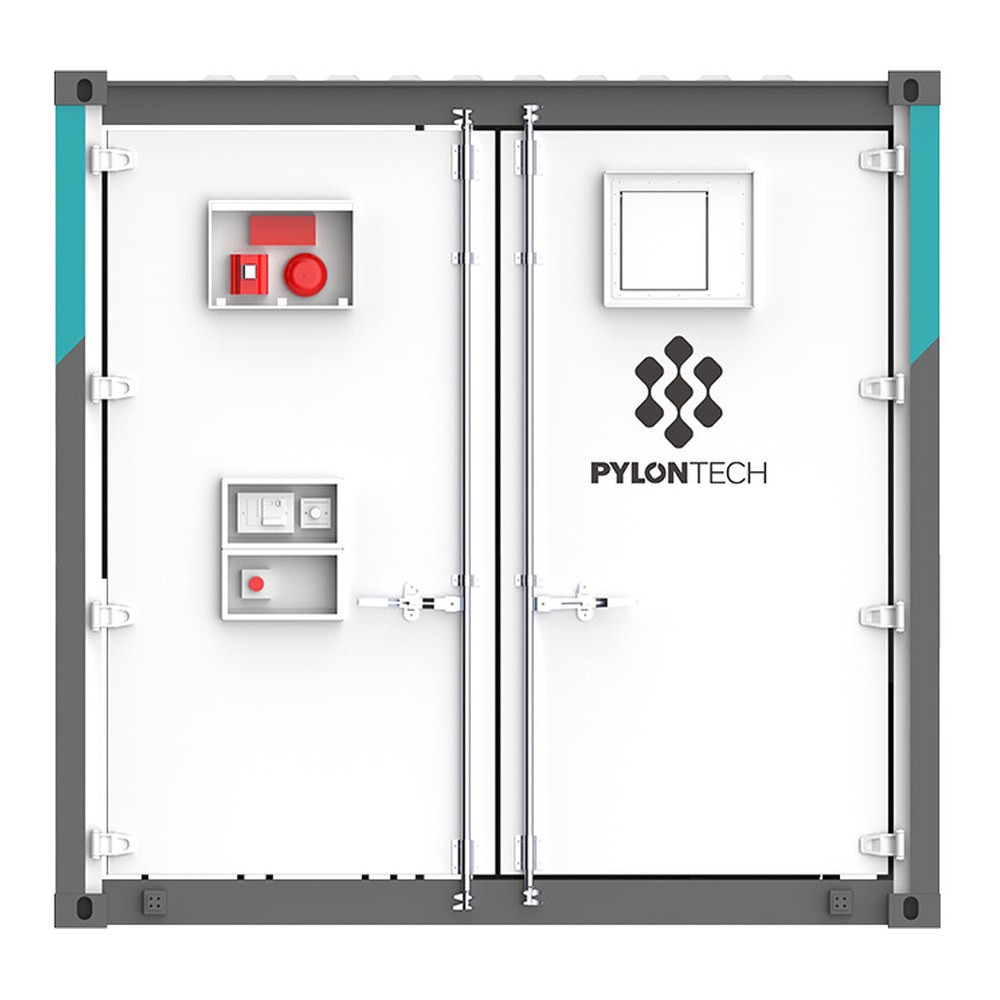

A1000-OMNI 500 kW / 1034.88 kWh is a 10 ft energy storage container from the Pylontech range, with an integrated power conversion system (PCS). It has a system capacity of 1034.88 kWh with lithium iron phosphate batteries and a rated AC power of 500 kW at 400 V, in an all-in-one air-cooled solution.
The datasheet gives a depth of discharge of 98 % for a single string, a cycle life above 7000, a maximum AC current of 760 A, an overload of 125-150 % for 200 ms, a power factor of 0.8-1 (leading or lagging) and a CEC efficiency of 97 %.
The listed functions are peak shaving, energy shifting and self-consumption. The auxiliary consumption, including HVAC, is 16 kW and the anti-corrosion class is C3H (C5 optional). The dimensions are those of the container without inverter.
| System capacity | 1034.88 kWh |
|---|---|
| Depth of discharge | 98 % (single string) |
| Cycle life | >7000 |
| DC voltage range | 638-781 V (single string) |
| Rated AC power | 500 kW |
| Rated AC output voltage | 400 V ±15 % |
| Rated AC output frequency | 50/60 ±2.5 Hz |
| Maximum AC output current | 760 A |
| Overload capacity | 125-150 % for 200 ms |
| Power factor | 0.8-1 (leading or lagging) |
| CEC efficiency | 97 % |
| Isolation type | Non-isolated |
| System configuration | Configurations: 690 / 862 / 1035 kWh; 250-500 kW |
| Working temperature range | -20 ... 50 °C (derating below 10 °C and above 40 °C) |
| Protection class | IP54 |
| Altitude | 4000 m |
| Humidity | 5-95 % |
| Fire extinguishing | Aerosol |
| Cooling system | Air cooling, HVAC 15 kW |
| Auxiliary power consumption | 16 kW (incl. HVAC) |
| Anti-corrosion | C3H (C5 optional) |
| Certification | UN38.3, UN 3480, IEC 62619, IEC 62040-1, CE, UKCA (EMC/RED), VDE 2510-50, UL 1973, UL 9540A, CE LVD, IEC 62477, CE EMC, IEC 61000, EN 50549-1:2019, G99, AS4777 |
| Dimension (W x D x H) | 2991 x 2438 x 2896 mm (without inverter) |
| Weight | 13000 kg |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
