Batteria Dyness 10,24 kWh, 51,2 V LiFePO4, a parete, PowerBox G2

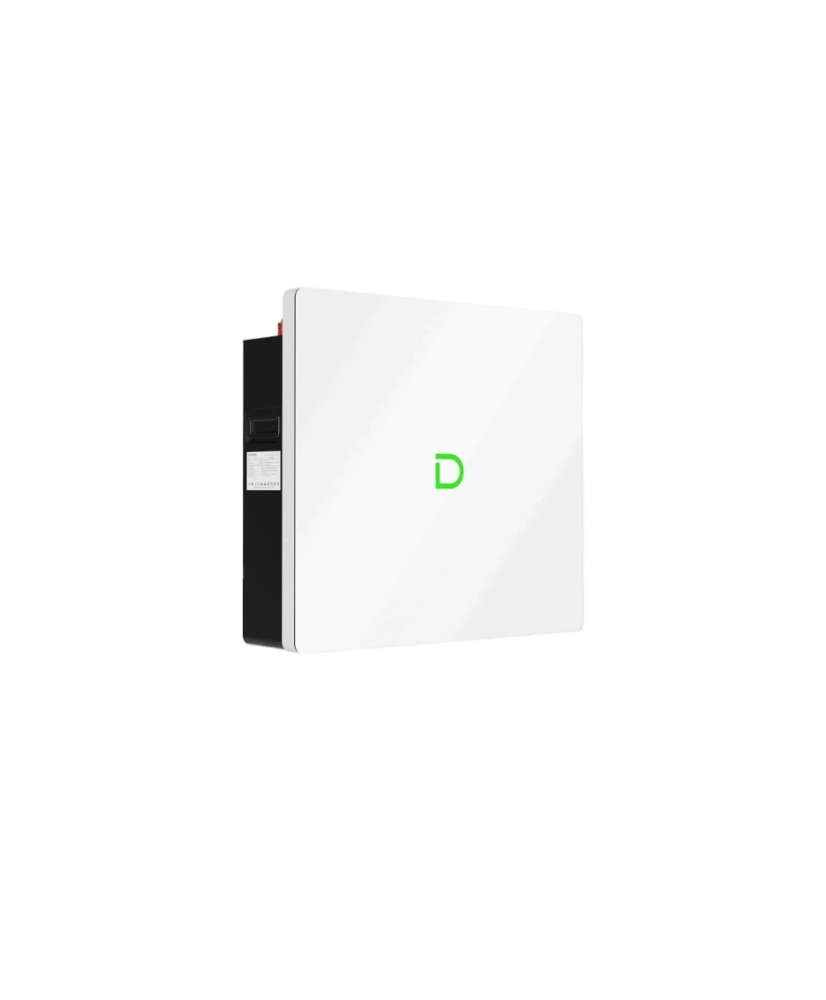

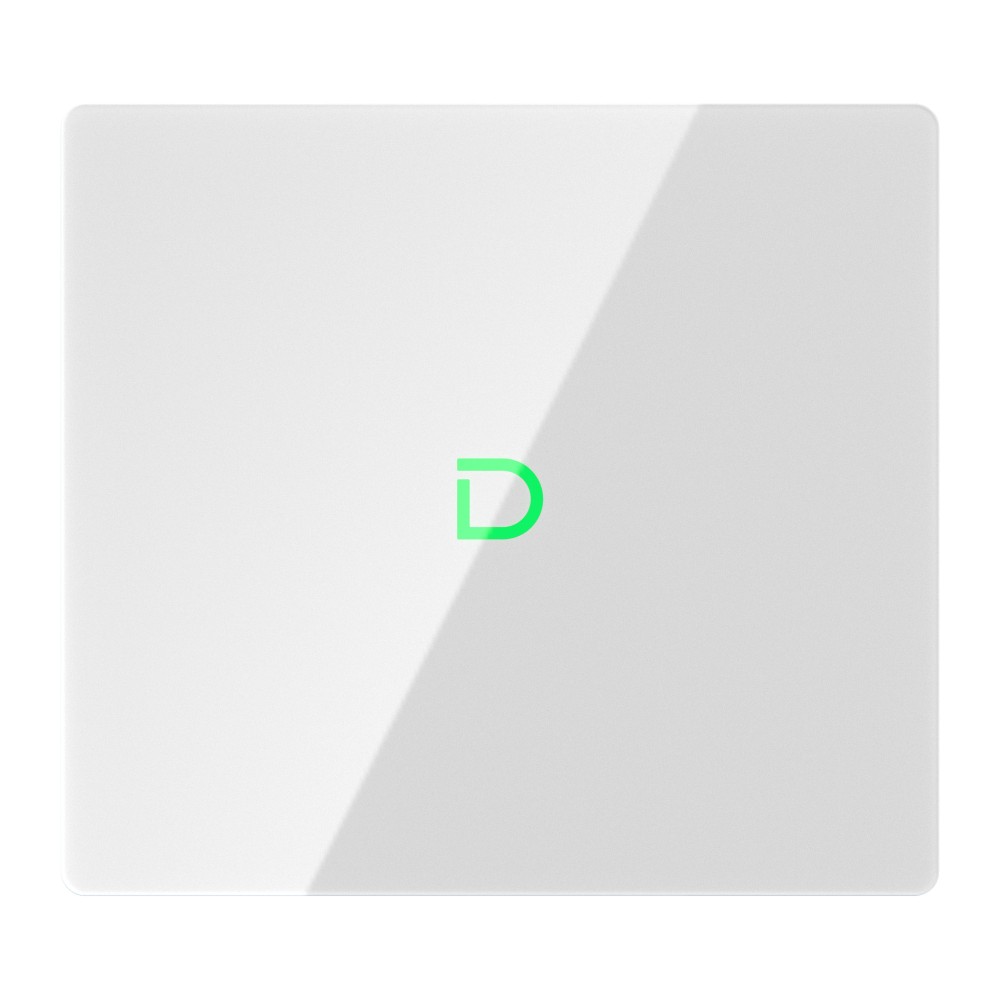

Dyness PowerBox G2 - wall-mounted LiFePO4 battery, 10.24 kWh, 51.2 V

Dyness PowerBox G2 is a low-voltage LiFePO4 battery (51.2 V, 200 Ah, 10.24 kWh) for wall mounting, designed for residential energy storage. It has built-in Wi-Fi and a built-in aerosol fire extinguisher, and can be expanded by connecting up to 50 units in parallel.

Main features:

• Nominal energy: 10.24 kWh (9.728 kWh usable)
• Discharge current: 200 A maximum (1C)
• Nominal power: 5.12 kW (maximum 10.24 kW)
• Mounting: wall, bracket supplied
• Communication: CAN, RS485, built-in Wi-Fi
• Cycle life: at least 8000 (95 % DoD)
• Safety: built-in aerosol extinguisher, IP65

The PowerBox G2 is a low-voltage product for residential energy storage. Connecting up to 50 units in parallel gives a capacity from 10.24 kWh to 512 kWh. The recommended depth of discharge is 95 %, the recommended charge and discharge current is 100 A (0.5C) and the peak discharge current is 300 A (2 minutes, 25 °C). The app allows remote (OTA) updates through the built-in Wi-Fi module.

The temperature range is 0 ... 55 °C for charging (-20 ... 55 °C with the optional heating function) and -20 ... 55 °C for discharging. The white housing is fixed to the wall with the supplied bracket. The package contains the battery, the 1 AWG power cables of 2050 mm (red and black), the parallel communication cable (RJ45, 2000 mm), the communication cable to the inverter (RJ45, 2000 mm), the wall bracket, the fixing bracket, the mounting screws and expansion bolts and the positioning cardboard.

The manufacturer states compatibility with SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye and Apsystem inverters. The official Dyness list of compatible inverters, attached to the page, includes the Solis S6-EH1P3K~8K-L-PRO/PLUS and S6-EH3P(8-15)K02-NV-YD-L series.

Technical specifications
