  • Nuovo

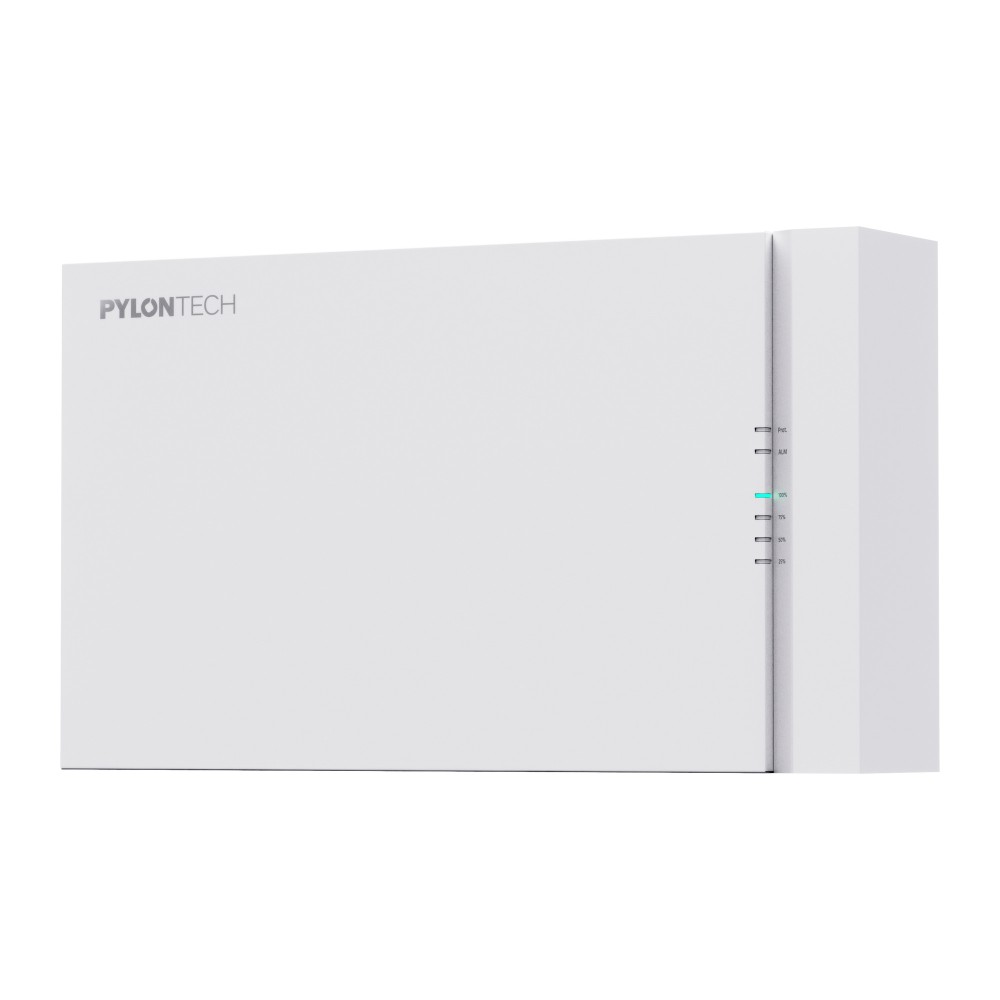

Batteria Pylontech Fidus 5,12 kWh, 51,2 V LiFePO4, con riscaldamento, FB-L-5.12-EU-Pro
  • Batteria Pylontech Fidus 5,12 kWh, 51,2 V LiFePO4, con riscaldamento, FB-L-5.12-EU-Pro
  • Batteria Pylontech Fidus 5,12 kWh, 51,2 V LiFePO4, con riscaldamento, FB-L-5.12-EU-Pro

Batteria Pylontech Fidus 5,12 kWh, 51,2 V LiFePO4, con riscaldamento, FB-L-5.12-EU-Pro

51,2 V
1.279 € Tasse incluse

1.066 € Tasse escluse

Pylontech Fidus FB-L-5.12-EU-Pro is a 51.2 V LiFePO4 battery with a nominal energy of 5.12 kWh (4.86 kWh usable, 95 % depth of discharge) and automatic cell heating for low temperatures. Continuous current of 100 A, CAN and RS485 communication, ingress protection IP65, weight 45 kg.

Riferimento FB-L-5.12-EU-Pro

I suoi diritti di garanzia legale

Garanzia legale

Avviso armonizzato dell’UE sulla garanzia legale di conformità

Maggiori informazioni: europa.eu/youreurope/garanzie
Apri l’avviso a grandezza intera

Pylontech Fidus FB-L-5.12-EU-Pro - self-heating LiFePO4 battery, 5.12 kWh, 51.2 V

Pylontech Fidus FB-L-5.12-EU-Pro is a low-voltage LiFePO4 battery (51.2 V, 5.12 kWh) with automatic cell heating, for residential energy storage. It can be mounted on a wall, on the floor or in a rack, communicates over CAN or RS485 and has ingress protection IP65.

Main features:

  • Nominal energy: 5.12 kWh (4.86 kWh usable)
  • Nominal voltage: 51.2 V
  • Continuous current: 100 A charge and discharge
  • Heating: automatic, from -20 °C
  • Communication: CAN, RS485
  • Ingress protection: IP65
  • Weight: 45 kg

The maximum continuous charge and discharge current is 100 A, and the peak current is 103-120 A for 2 minutes and 121-200 A for 15 seconds. One group can have up to 20 batteries (19 in multi-group setups) and the system up to 6 groups. For paralleling several groups, the datasheet requires an LV-HUB. The manufacturer states scalability from 5 kWh to 583 kWh (1-114 modules).

The self-heating version (Pro) works between -20 and 55 °C. Heating activates between -20 and -10 °C, and charging and discharging are allowed only above -10 °C; the BMS limits the current at extreme temperatures. The enclosure has ingress protection IP65 and corrosion resistance class C5-M, and the design life is 15 years, with 8000 cycles at 25 °C, 0.5C and 5-95 % SOC. The interfaces include LEDs, Bluetooth and Wi-Fi (optional).

The official Pylontech list of compatible inverters (version 2.46, updated 7 July 2026) has one shared column for familia Fidus (FB-L-5.12), which lists Victron Energy inverters (Multiplus and Quattro 48 V, via Venus OS, CAN communication), Solis (S6-EH1P-L, S6-EH1P-L-PLUS, S6-EH3P-NV-YD-L) and Deye (SUN-SG01LP1, SUN-SG03LP1, SUN-SG04LP1, SUN-SG04LP3 and SUN-SG05LP3 series), among other manufacturers. Firmware V1586 is stated for the Deye SG01LP1 and SG03LP1 series, and firmware 422 with Venus OS V2.15 or newer for Victron. In off-grid use with Victron, a Victron MPPT or another Victron-compatible PV inverter is required.

Technical specifications

Product typeBattery
Battery chemistryLiFePO4 (lithium iron phosphate)
Battery voltage class48 V
Nominal voltage51.2 V
Rated capacity100 Ah
Nominal energy5.12 kWh
Usable energy4.86 kWh
Capacity class2.5-6 kWh
Discharge voltage range42.5-56.8 V
Charge voltage range56-56.8 V
Max. continuous charge / discharge current100 A / 100 A
Peak charge / discharge current103-120 A (2 min), 121-200 A (15 s)
Depth of discharge95 %
Cycle life8000 cycles (25 °C, 0.5C, SOC 5-95 %)
Design life15 years
Parallel connectionup to 20 units per group (19 with several groups), up to 6 groups
Communication interfacesCAN, RS485
Built-in BMSYes
Heating functionautomatic (activates between -20 and -10 °C)
Display and connectivityLED, Bluetooth, Wi-Fi (optional)
Ingress protection (IP)IP65
Corrosion resistance classC5-M
Protection classI
Operating temperature-20 ... 55 °C (charging and discharging only above -10 °C)
Storage temperature-20 ... 60 °C
Relative humidity5-95 % (non-condensing)
Max. operating altitude4000 m
Short-circuit current< 1000 A / 1 ms
Coolingnatural
Installationwall, floor or rack
Standards and complianceIEC 62619, IEC 63056, VDE 2510-50, IEC 62477-1, UN 38.3, RoHS, REACH, WEEE, EMC/CE
Dimensions (height x width x depth)363 x 630 x 170 mm
Weight45 kg

Scheda dati

Riferimento
FB-L-5.12-EU-Pro
MPN
FB-L-5.12-EU-Pro
Tipo di prodotto
Batteria
Tecnologia batteria
LiFePO4 (litio-ferro-fosfato)
Tensione batteria
48 V
Tensione nominale (valore esatto)
51,2 V
Capacità nominale
100 Ah
Classe di capacità
2,5-6 kWh
Energia nominale
5,12 kWh
Corrente di scarica continua massima
100 A
BMS integrato
Sì
Corrente di carica massima
100 A
Interfacce di comunicazione
CAN-bus
RS485
Dimensioni (A x L x P)
363 x 630 x 170 mm
Peso
45 kg
Grado di protezione (IP)
IP65
Temperatura di esercizio
-20 ... 55 °C (carica e scarica solo sopra -10 °C)
Umidità relativa massima
95 %
Norme e conformità
IEC 62619, IEC 63056, VDE 2510-50, IEC 62477-1, UN 38.3, RoHS, REACH, WEEE, EMC/CE

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
