Nuovo

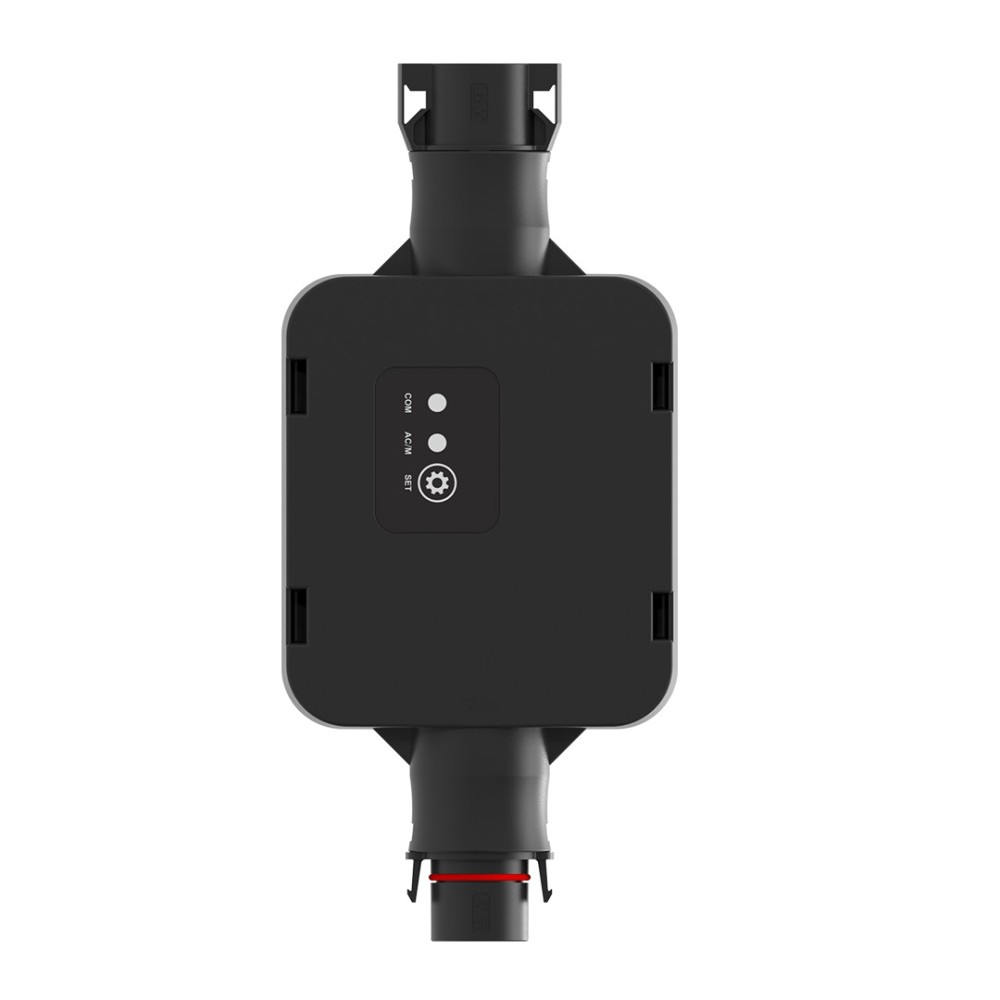

Interruttore intelligente Deye LoRa, 25 A, SUN-SMART-SWITCH01P3

Name: Interruttore intelligente Deye LoRa, 25 A, SUN-SMART-SWITCH01P3
Brand: Deye
SKU: SUN-SMART-SWITCH01P3
Price: 115.00 EUR
Availability: InStock

115 € Tasse incluse

96 € Tasse escluse

SUN-SMART-SWITCH01P3 is a Deye smart switch with LoRa communication, for currents up to 25 A per phase, compatible with single-phase and three-phase systems. It allows monitoring and control via Deye Cloud, strategies by time, SOC and grid status, and has a flame-retardant housing, Class I protection and IP65 rating.

Riferimento SUN-SMART-SWITCH01P3

I suoi diritti di garanzia legale

SUN-SMART-SWITCH01P3 - 25 A LoRa smart switch

SUN-SMART-SWITCH01P3 is a Deye smart switch with LoRa communication, for controlling loads in single-phase and three-phase systems. It allows real-time power monitoring and control via Deye Cloud, with strategies defined by time, battery level (SOC) and grid status.

Main features:

Voltage range: 94-238 V AC (phase voltage)
Maximum current: 25 A AC (phase current)
Systems: Single-phase (L1/N) and three-phase (L1/L2/L3/N)
Communication: LoRa, about 200 m without obstacles
Protection degree: IP65, Class I
Dimensions: 96.7 x 204.7 x 37.7 mm

The switch is compatible with single-phase and three-phase systems and uses a plug-in connector. Custom strategies can be defined by time, SOC and grid status, and critical and non-critical loads are easy to define.

LoRa communication offers low latency and long range, and the system can also work offline. The device complies with IEC/EN 61010-1 and operates from -40 to 45 °C.

Technical specifications

Voltage range (phase voltage)	94-238 V AC
Connection type	L1/N (single phase), L1/L2/L3/N (three phase)
Maximum current (phase current)	25 A AC
Frequency and range	50 Hz (45-55 Hz) / 60 Hz (55-65 Hz)
Connection	Connector plug-in type
Communication type	LoRa
LoRa communication distance	About 200 m (barrier free)
Working temperature range	-40 ... 45 °C
Permissible ambient humidity	0-100% RH
Ingress protection (IP) rating	IP65
Protection level	Class I
Allowable altitude	Max. 4000 m
Product size (width x height x depth)	96.7 x 204.7 x 37.7 mm
Weight	0.4 kg
Standard	IEC/EN 61010-1
LoRa frequency range	863-870 MHz
Antenna	Internal antenna, gain 1.58 dBi at 868 MHz

Scheda dati

Riferimento: SUN-SMART-SWITCH01P3
MPN: SUN-SMART-SWITCH01P3
Tipo di prodotto: Accessorio
Corrente nominale (valore esatto): 25 A
Interfacce di comunicazione: LoRa
Dimensioni (A x L x P): 204,7 x 96,7 x 37,7 mm
Peso: 0,4 kg
Grado di protezione (IP): IP65
Temperatura di esercizio: -40 ... 45 °C

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
