96 € Ohne Steuern

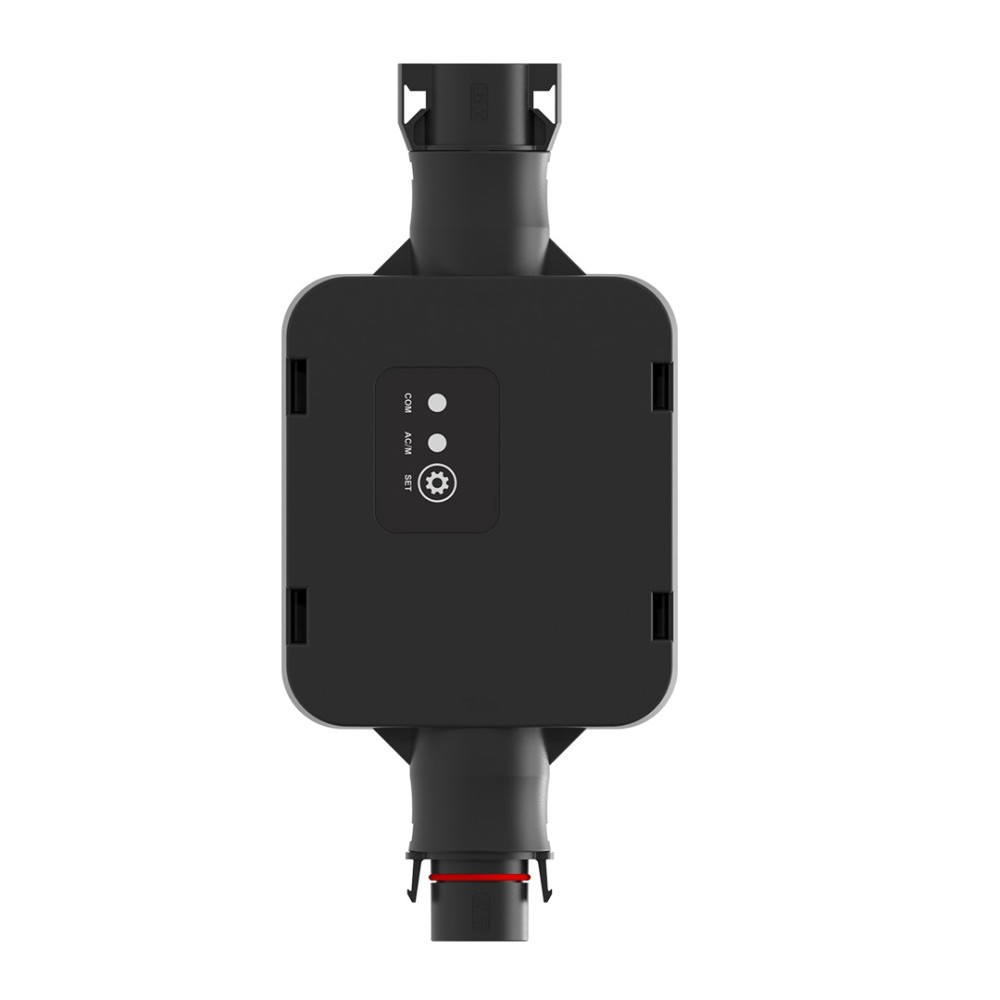

SUN-SMART-SWITCH01P3 is a Deye smart switch with LoRa communication, for currents up to 25 A per phase, compatible with single-phase and three-phase systems. It allows monitoring and control via Deye Cloud, strategies by time, SOC and grid status, and has a flame-retardant housing, Class I protection and IP65 rating.
SUN-SMART-SWITCH01P3 is a Deye smart switch with LoRa communication, for controlling loads in single-phase and three-phase systems. It allows real-time power monitoring and control via Deye Cloud, with strategies defined by time, battery level (SOC) and grid status.
The switch is compatible with single-phase and three-phase systems and uses a plug-in connector. Custom strategies can be defined by time, SOC and grid status, and critical and non-critical loads are easy to define.
LoRa communication offers low latency and long range, and the system can also work offline. The device complies with IEC/EN 61010-1 and operates from -40 to 45 °C.
| Voltage range (phase voltage) | 94-238 V AC |
|---|---|
| Connection type | L1/N (single phase), L1/L2/L3/N (three phase) |
| Maximum current (phase current) | 25 A AC |
| Frequency and range | 50 Hz (45-55 Hz) / 60 Hz (55-65 Hz) |
| Connection | Connector plug-in type |
| Communication type | LoRa |
| LoRa communication distance | About 200 m (barrier free) |
| Working temperature range | -40 ... 45 °C |
| Permissible ambient humidity | 0-100% RH |
| Ingress protection (IP) rating | IP65 |
| Protection level | Class I |
| Allowable altitude | Max. 4000 m |
| Product size (width x height x depth) | 96.7 x 204.7 x 37.7 mm |
| Weight | 0.4 kg |
| Standard | IEC/EN 61010-1 |
| LoRa frequency range | 863-870 MHz |
| Antenna | Internal antenna, gain 1.58 dBi at 868 MHz |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
