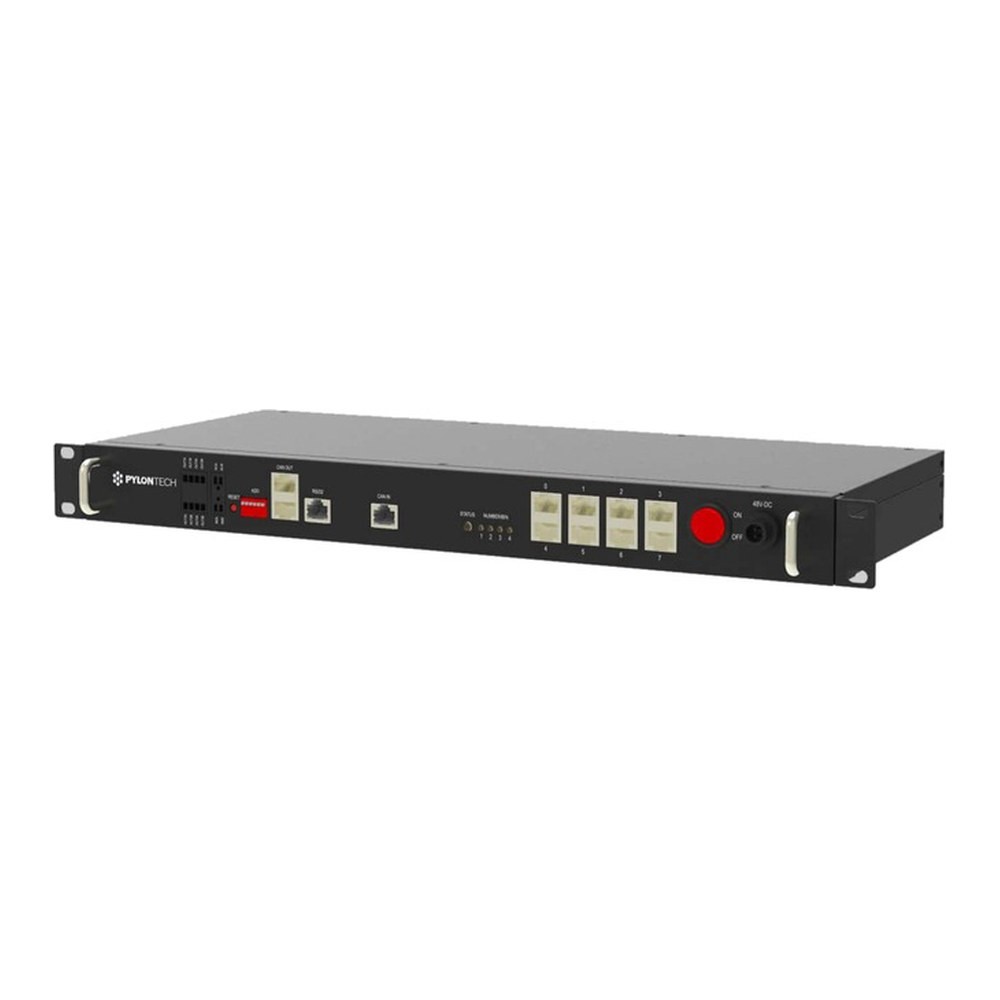

Pylontech LV-HUB is a CAN / RS485 communication hub for connecting several groups of 48 V Pylontech batteries (US2000, US3000, US2000C, US3000C, UP5000, US5000) in parallel. One hub connects up to 6 groups over CAN with US5000 batteries. Powered at 48 V DC from an external adaptor, dimensions 442 x 190 x 44 mm, weight 3 kg.
Pylontech LV-HUB is a CAN / RS485 communication hub for energy storage systems with several groups of 48 V Pylontech batteries connected in parallel. It is powered at 48 V DC from an external adaptor, has the format of 19-inch rack equipment (44 mm high) and ingress protection IP20.
Over CAN, one hub connects up to 6 groups of US2000C, US3000C, UP5000 or US5000 batteries, each group having at most 16 modules. For the US2000 and US3000, each group can have at most 8 modules and the hub connects at most 5 groups. With several hubs on CAN, the manual states up to 25 groups; with US2000 and US3000, up to 200 modules can be reached.
Connecting several US5000 groups over RS485 does not require an LV-HUB. Each pair of power cables carries at most 100 A continuously, and a suitable protection device is required between the battery system and the inverter. The protocols are Pylon low-voltage V1.2 on CAN (500 kbps) and V3.1 on RS485 (9600 or 115200 bps).
The hub has an on/off switch, an RJ45 CAN input port, eight RJ45 ports numbered 0 to 7 for the battery groups, an RS232 debug port, the 48 V DC power input, LED indicators for the number of connected groups and a reset button. The working temperature is -20 ... 60 °C and the service life is 15 years. For paralleling several Fidus groups, the datasheet requires an LV-HUB.
| Product type | BMS and BMS accessories |
|---|---|
| Manufacturer | Pylontech |
| Model | LV-HUB |
| Battery voltage class | 48 V |
| Supply voltage | 48 V DC (external adaptor) |
| Self-consumption | 2 W |
| Communication interfaces | CAN, RS485 |
| Number of groups | up to 6 on CAN with US5000 (16 modules per group); up to 5 with US2000 / US3000 (8 modules per group) |
| Protocols | CAN: Pylon low-voltage V1.2; RS485: Pylon low-voltage V3.1 |
| Ingress protection (IP) | IP20 |
| Operating temperature | -20 ... 60 °C |
| Storage temperature | -40 ... 80 °C |
| Service life | 15 years |
| Dimensions (height x width x depth) | 44 x 442 x 190 mm |
| Weight | 3 kg |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
