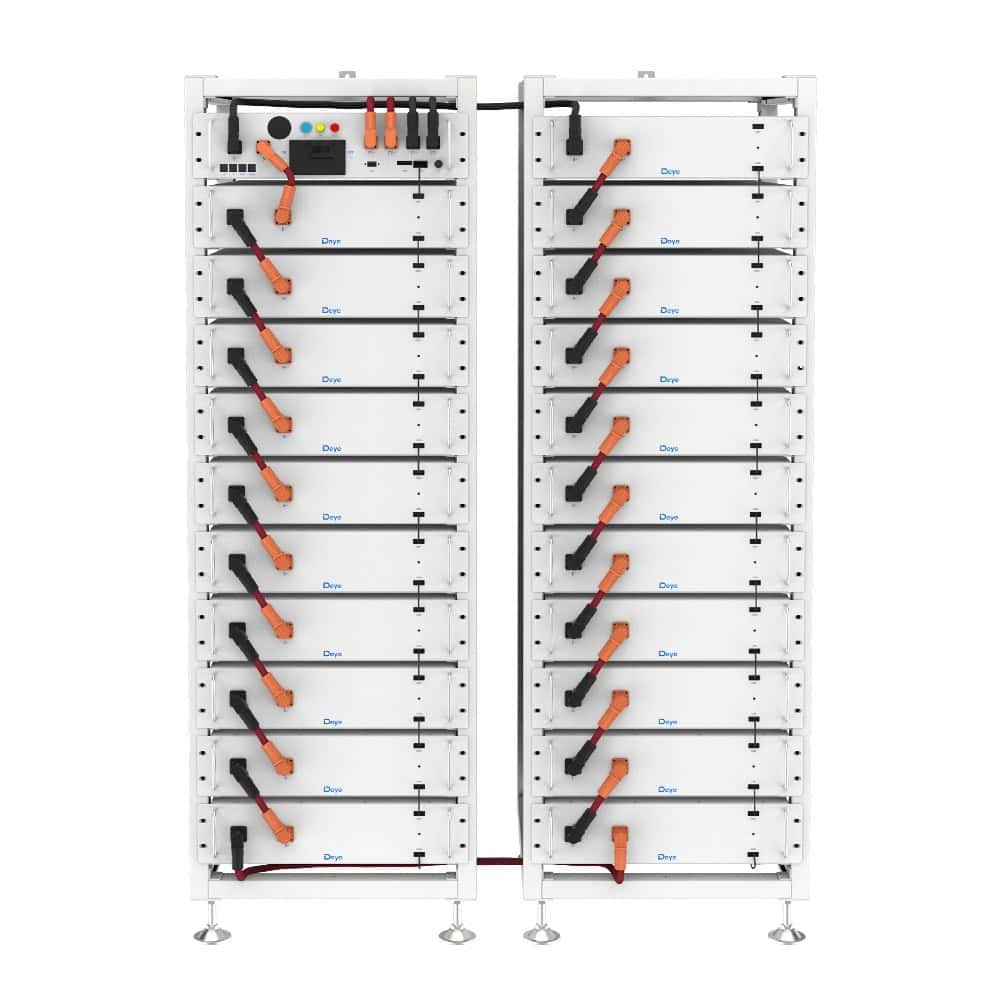

Rack Deye per BOS-A, 13 moduli, BOS-A-Rack14

BOS-A-Rack14 - Rack for BOS-A systems, 13 modules

BOS-A-Rack14 is a 14 position 3U rack for the Deye BOS-A battery series. It holds 13 BOS-A-Pack7.68 battery modules and one high voltage control box, which corresponds to a 99.84 kWh system such as the BOS-A95.

Main features:

• Type: 14 position 3U rack
• Capacity: 13 battery modules and one control box
• Compatibility: Deye BOS-A series
• Dimensions: 610 x 610 x 2350 mm
• Weight: 55 kg, empty rack

The rack is empty: the BOS-A-Pack7.68 modules and the BOS-A-PDU-2 control box are separate products. Systems with 7 to 10 modules use the 11 position rack (BOS-A-Rack11), systems with 14 to 17 modules use two 9 position racks (BOS-A-Rack9 x 2), and systems with 18 to 21 modules use two 11 position racks (BOS-A-Rack11 x 2).

The dimensions and weight are those of the empty rack, as stated in the BOS-A series datasheet.
