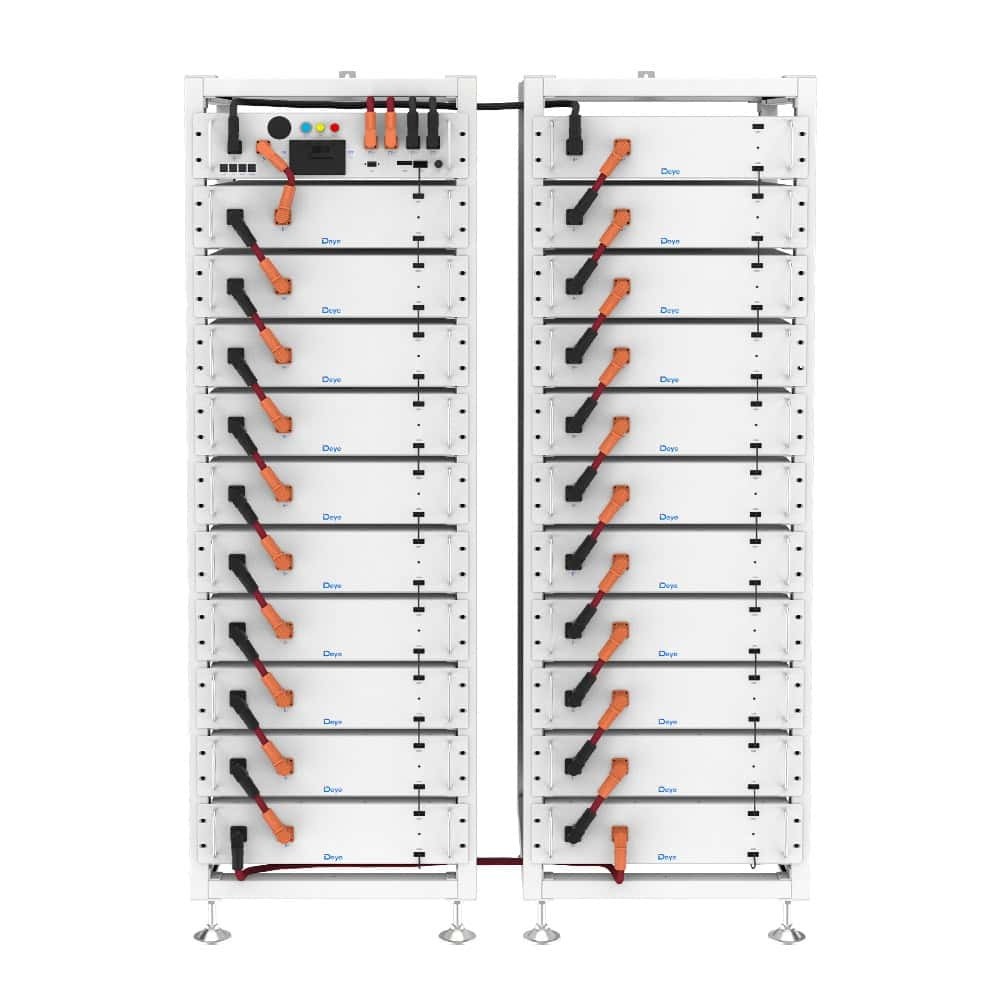

Rack Deye para BOS-A, 13 módulos, BOS-A-Rack14

Name: Rack Deye para BOS-A, 13 módulos, BOS-A-Rack14
Brand: Deye
SKU: BOS-A-Rack14
Price: 468.00 EUR
Availability: InStock

468 € Impuesto incluido

390 € Sin impuestos

BOS-A-Rack14 is a 14 position rack for the Deye BOS-A series that holds 13 battery modules and one HV control box. It measures 610 x 610 x 2350 mm and weighs 55 kg without modules. It is the rack variant for systems with 11 to 13 battery modules in series.

Referencia BOS-A-Rack14

Sus derechos de garantía legal

BOS-A-Rack14 - Rack for BOS-A systems, 13 modules

BOS-A-Rack14 is a 14 position 3U rack for the Deye BOS-A battery series. It holds 13 BOS-A-Pack7.68 battery modules and one high voltage control box, which corresponds to a 99.84 kWh system such as the BOS-A95.

Main features:

Type: 14 position 3U rack
Capacity: 13 battery modules and one control box
Compatibility: Deye BOS-A series
Dimensions: 610 x 610 x 2350 mm
Weight: 55 kg, empty rack

The rack is empty: the BOS-A-Pack7.68 modules and the BOS-A-PDU-2 control box are separate products. Systems with 7 to 10 modules use the 11 position rack (BOS-A-Rack11), systems with 14 to 17 modules use two 9 position racks (BOS-A-Rack9 x 2), and systems with 18 to 21 modules use two 11 position racks (BOS-A-Rack11 x 2).

The dimensions and weight are those of the empty rack, as stated in the BOS-A series datasheet.

Technical specifications

Type	Rack with 14 positions of 3U
Capacity	13 battery modules and one HV control box
Dimensions (W x D x H)	610 x 610 x 2350 mm
Approximate weight	55 kg

Ficha de datos

Referencia: BOS-A-Rack14
NMP: BOS-A-Rack14
Tipo de producto: Accesorio
Dimensiones (alto x ancho x fondo): 2350 x 610 x 610 mm
Peso: 55 kg

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.

Folleto (EN)
Descargar (5.81MB)

Compatibilidades

Recomendado

Módulo de batería Deye 7,68 kWh, 38,4 V LiFePO4, BOS-A-Pack7.68

7,68 kWh 38,4 V

1.572 €

Las compatibilidades se calculan automáticamente a partir de los datos técnicos de los fabricantes y son meramente informativas. Para sistemas complejos, le recomendamos que un asesor revise la configuración antes de hacer el pedido. Detalles en los Términos y condiciones
