5.552 € Sin impuestos

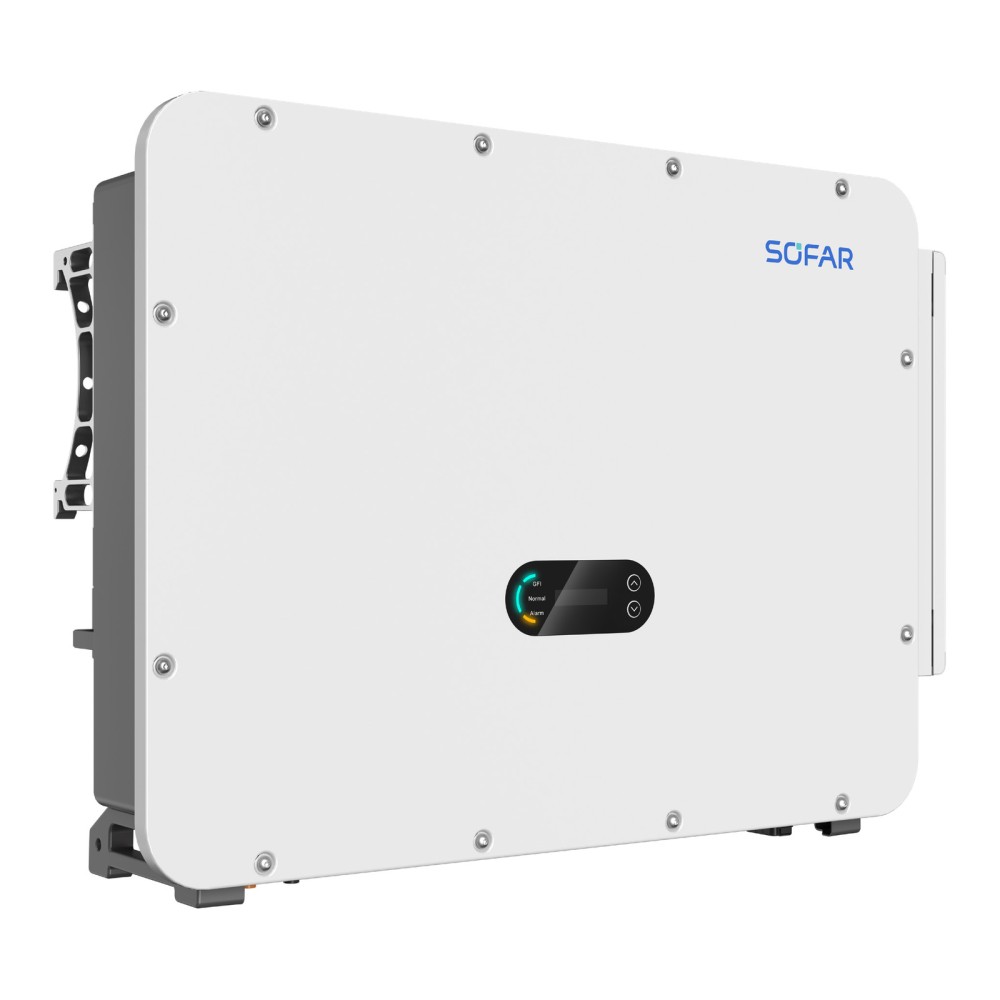

110KTLX-G4-ESS is a 110 kW three-phase SOFAR hybrid inverter with 9 MPPT (160-1000 V, 40 A per MPPT, 18 inputs) and a 600-1000 V HV battery port with charging up to 125 kW (200 A). Maximum efficiency is 98.6 %. It is wall mounted, rated IP66, weighs 80 kg and operates grid-connected, without an off-grid mode.
110KTLX-G4-ESS is a 110 kW three-phase hybrid inverter for commercial and industrial applications, with 9 MPPT and a DC-coupled battery port of 600-1000 V and up to 200 A. It operates grid-connected in energy storage systems (ESS) and is rated IP66.
According to the manual, the battery port of the inverter is intended for SOFAR CBS8000 batteries, with CAN communication. The battery is not included. Several inverters run in parallel together with the SOFAR CH1000 control hub, which holds the energy management strategy (EMS).
The inverter has arc-fault protection (AFCI), PV string monitoring, PID recovery, an LCD with Bluetooth and an app. Communication is via Ethernet, RS485 or Wi-Fi. The operating temperature is -30 ... 60 °C and the maximum altitude is 4000 m (with derating above 3000 m).
| Number of MPP trackers | 9 |
|---|---|
| Number of DC inputs | 18 |
| Recommended max. PV input power | 220 kWp |
| Max. input voltage | 1100 V |
| Rated input voltage | 625 V |
| Start-up voltage | 200 V |
| MPPT operating voltage range | 160-1000 V |
| Max. input MPPT current | 9 x 40 A |
| Max. input short circuit current | 9 x 50 A |
| Rated output power | 110 kW |
| Max. output apparent power | 121 kVA |
| Max. output current | 183.8@380 V / 174.6@400 V / 168.3@415 V |
| Rated output voltage | 3N~+PE, 380/400/415 V |
| Output voltage range | 310-480 V |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100 % |
| THDi | under 1 % (at 100 % power) |
| Power factor | 0.8 leading - 0.8 lagging |
| Battery type | Lithium-ion |
| Number of battery input channels | 1 |
| Battery DC voltage range | 600-1000 V |
| Max. charge power | 125 kW |
| Max. charge current | 200 A |
| Max. discharge power | 121 kW |
| Max. discharge current | 193.6 A |
| BMS communication | RJ45, CAN x 2, DO x 1 |
| Max. efficiency | 98.6 % |
| European efficiency | 98.3 % |
| Ingress protection | IP66 |
| Ambient temperature range | -30 ... 60 °C |
| Allowable relative humidity range | 0-100 % |
| Max. operating altitude | 4000 m (derating above 3000 m) |
| Topology | Transformerless |
| Cooling | Smart air cooling |
| Dimension (W x H x D) | 985 x 710 x 321 mm |
| Weight | 80 kg |
| Communication | Ethernet, RS485, Wi-Fi |
| Display | LCD, Bluetooth and app |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
Las compatibilidades se calculan automáticamente a partir de los datos técnicos de los fabricantes y son meramente informativas. Para sistemas complejos, le recomendamos que un asesor revise la configuración antes de hacer el pedido. Detalles en los Términos y condiciones
