46.283 € Sin impuestos

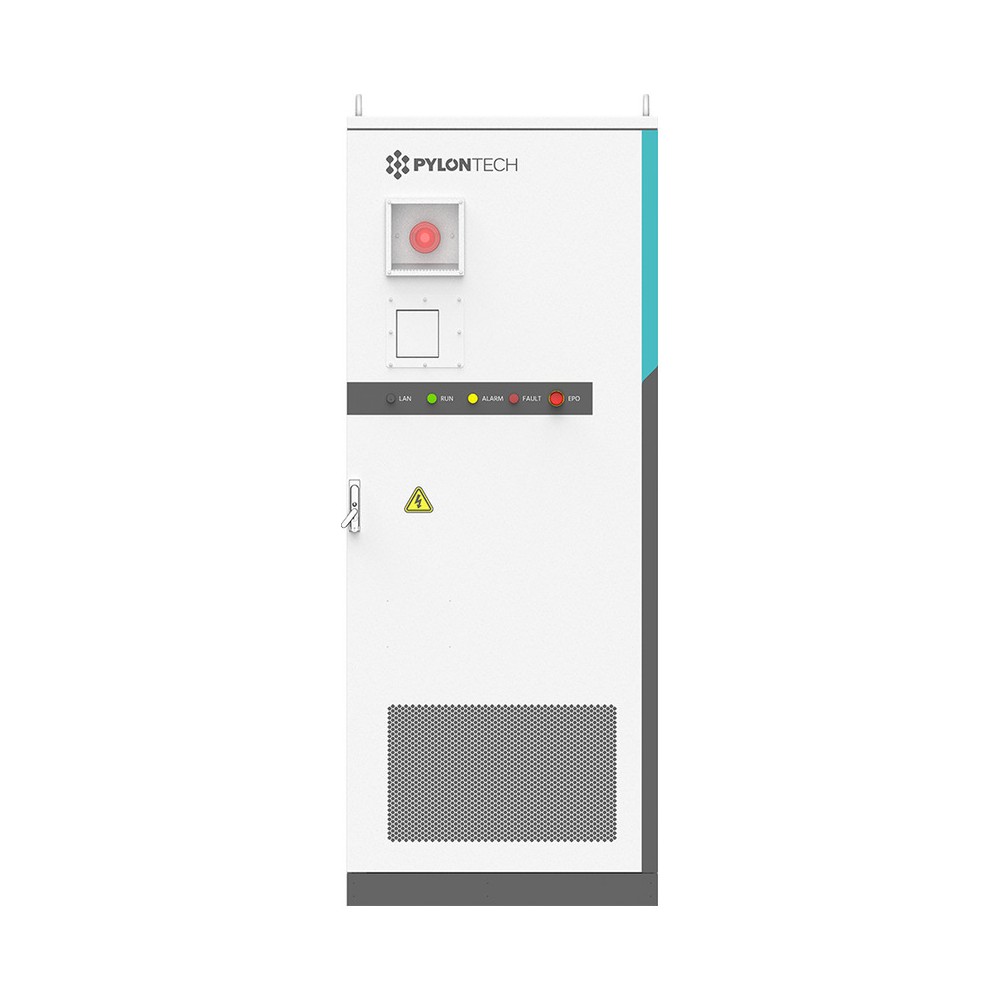

L260-OMNI is a Pylontech OPTIM US storage cabinet with 260 kWh of LFP batteries and an integrated 125 kW converter, with a 400 V, 50 Hz output, Ethernet (Modbus TCP) communication, liquid cooling and IP55 protection. Up to 6 cabinets can be paralleled, giving 260 to 1560 kWh and 125 to 750 kW at system level.
L260-OMNI 125 kW / 260 kWh is an energy storage system from the Pylontech OPTIM US series, built as a cabinet with an integrated power conversion system (PCS) for commercial and industrial applications. It has lithium iron phosphate (LFP) batteries with a nominal energy of 260 kWh, a rated AC power of 125 kW at 400 V, 50 Hz and liquid cooling.
The datasheet gives a depth of discharge of 98 % for a single string, a cycle life above 8500 and a round-trip efficiency above 95 % at 0.5C. The maximum and continuous battery operation currents are 200 A and 157 A.
The converter has a maximum AC current of 181 A, an overload capacity of 110 %, a power factor from 1.0 lagging to 1.0 leading and a CEC efficiency of 98 %. The listed functions are ancillary service, electricity arbitrage, demand response and backup. Fire extinguishing is by aerosol.
| Battery type | LFP (lithium iron phosphate) |
|---|---|
| Nominal energy | 260 kWh |
| DC voltage range | 702-936 V (single string) |
| Maximum / continuous operation current | 200 / 157 A |
| Depth of discharge | 98 % (single string) |
| Cycle life | >8500 |
| Round-trip efficiency | >95 % at 0.5C |
| Rated AC power | 125 kW |
| Rated AC output voltage | 400 V |
| Rated AC output frequency | 50 Hz |
| Maximum AC output current | 181 A |
| Overload capacity | 110 % |
| Power factor | 1.0 lagging ... 1.0 leading |
| CEC efficiency | 98 % |
| Isolation type | Non-isolated |
| Communication | Ethernet (Modbus TCP) |
| System configuration | Up to 6 cabinets: 260-1560 kWh, 125-750 kW |
| Working temperature range | -25 ... 50 °C (derating below 10 °C and above 40 °C) |
| Protection class | IP55 |
| Altitude | 3000 m |
| Humidity | 5-95 % |
| Fire extinguishing | Aerosol |
| Cooling system | Liquid cooling, 2.56 kW (cooling / heating) |
| Auxiliary power consumption | 2.7 kW continuous / 3.85 kW peak (incl. HVAC) |
| Anti-corrosion | C3 (C5 optional) |
| Certification | IEC 62619, IEC 62040-1, CE, VDE 2510-50, UL 1973, UL 9540A, CE EMC, CE LVD, EN 50549-1:2019, EN 50549-2:2019, IEC 61000-6-2, IEC 62477-1 (partial application in progress) |
| Dimension (W x D x H) | 950 x 1300 x 2480 mm (without inverter) |
| Weight | 2900 kg |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
