Ladestation Deye 22 kW, dreiphasig, IP66, SUN-EVSE22K01-EU-AC

Name: Ladestation Deye 22 kW, dreiphasig, IP66, SUN-EVSE22K01-EU-AC
Brand: Deye
SKU: SUN-EVSE22K01-EU-AC
Price: 576.00 EUR
Availability: InStock

576 € Steuern inklusive

480 € Ohne Steuern

SUN-EVSE22K01-EU-AC is a Deye EV charger with a maximum output of 7 kW single-phase or 22 kW three-phase, a 32 A input current and a 4.2 m cable. It has IP66 protection, Type B leakage and 6 mA DC fault protection, automatic charging by time or solar-only, and LoRa, Wi-Fi and BLE communication.

Referenz SUN-EVSE22K01-EU-AC

Ihre Rechte aus der gesetzlichen Gewährleistung

SUN-EVSE22K01-EU-AC - 22 kW EV charger

SUN-EVSE22K01-EU-AC is a Deye charger for electric vehicles, with an output power of 7 kW single-phase or 22 kW three-phase, a 4.2 m charging cable and IP66 protection for outdoor use. It allows automatic charging by time or in solar-only mode.

Main features:

Maximum output power: 7 kW single-phase, 22 kW three-phase
Input current: 32 A
Protection degree: IP66, for outdoor use
Charging cable: 4.2 m, one charging gun
Leakage protection: Type B and 6 mA DC fault
Communication: LoRa, Wi-Fi, BLE
Charging modes: Automatic by time, solar-only

The charger supports 7, 11 and 22 kW charging across the product range and works in both single-phase and three-phase systems. It starts in Plug and Play mode or by scheduled charging, and power can be monitored and controlled in real time via Deye Cloud.

Protections include over-temperature, low temperature, over-voltage, under-voltage, short circuit, overload, earth fault, 6 mA DC leakage current and Type II surge protection. It operates from -40 to 55 °C, with noise below 25 dB and an MTBF of 100,000 h.

Technical specifications

Input voltage / range	230 V (single phase), 230/400 V (three phase)
Connection mode	L+N+PE, 3L+N+PE
Input current	32 A
Input frequency / range	50 Hz (45-55 Hz) / 60 Hz (55-65 Hz)
Maximum output power	7 kW (single phase) / 22 kW (three phase)
Starting method	Plug and Play / scheduled charging
Over temperature protection	Yes
Low temperature protection	Yes
Over voltage protection	Yes
Under voltage protection	Yes
Short circuit protection	Yes
Over load protection	Yes
Earth fault protection	Yes
Leakage current protection	DC 6 mA
Surge protection level	Type II
Operating temperature range	-40 ... 55 °C
Permissible ambient humidity	5-95%, no condensation
Permissible altitude	Max. 3000 m
Noise	<25 dB
Ingress protection (IP) rating	IP66
Dimensions (height x width x depth)	264 x 104 x 57.5 mm
Weight	3.7 kg
Gun cable length	4.2 m
Number of charging guns	1
MTBF	100000 h
Safety and EMC standards	EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021
Communication mode	LoRa, Wi-Fi, BLE

Datenblatt

Referenz: SUN-EVSE22K01-EU-AC
MPN: SUN-EVSE22K01-EU-AC
Produkttyp: Ladestation für Elektrofahrzeuge
Phasen: Dreiphasig
Steckverbinder: Ein Ladestecker, Kabel 4,2 m
Kommunikationsschnittstellen: Bluetooth
LoRa
WLAN
Abmessungen (H x B x T): 264 x 104 x 57,5 mm
Gewicht: 3,7 kg
Schutzart (IP): IP66
Betriebstemperatur: -40 ... 55 °C
Normen und Konformität: EN IEC 61851-1:2019, IEC 61851-1:2017, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Datenblatt (EN)
Herunterladen (303.46KB)

Kompatibilität

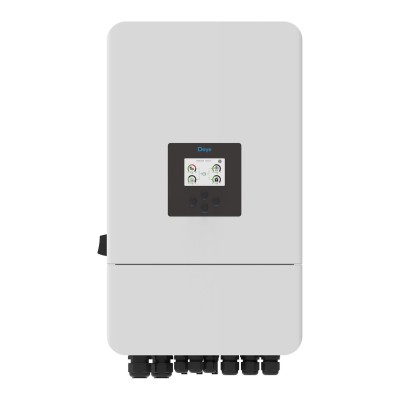

6 kW Hybrid-Wechselrichter Deye, dreiphasig, 48 V, SUN-6K-SG05LP3-EU-SM2
