72 € Ohne Steuern

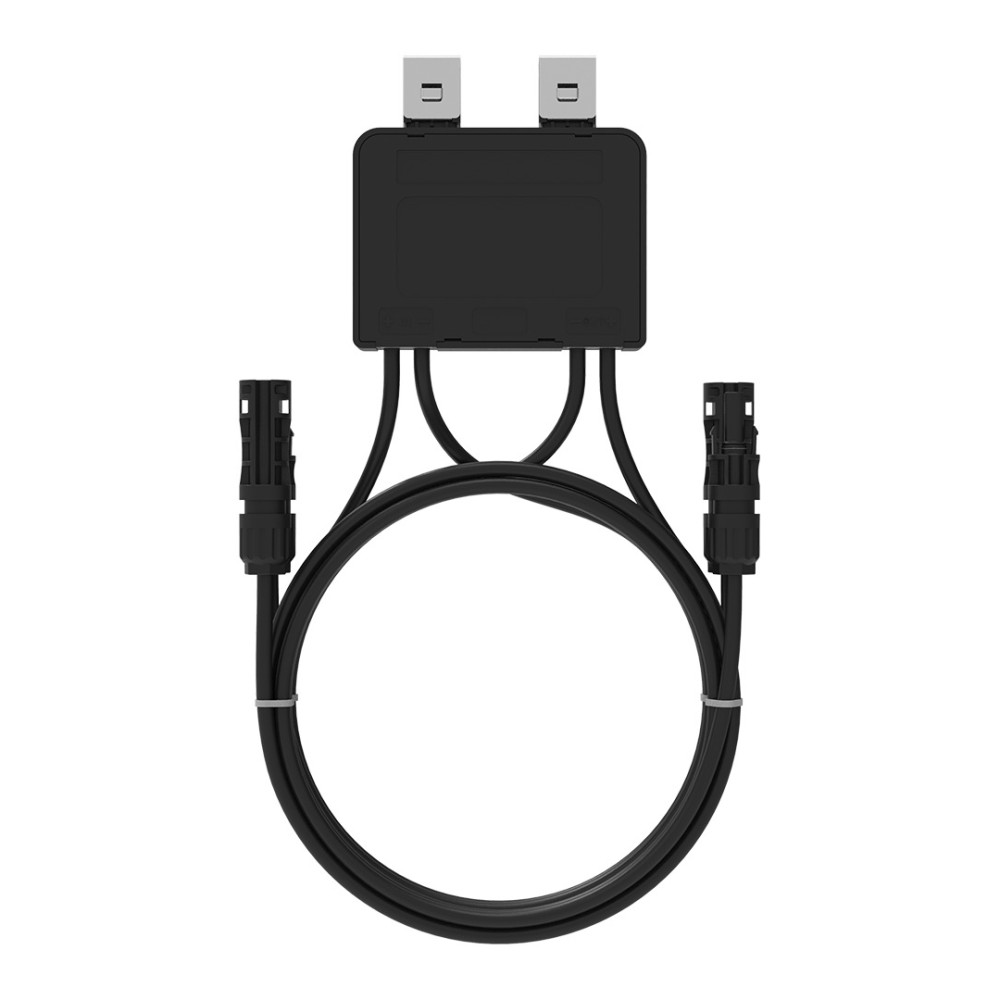

SUN-XL02-B is a Deye photovoltaic optimizer for a solar module, with a maximum power of 700 W, a maximum input voltage of 80 V (MPPT range 12-80 V), a maximum current of 15 A and a peak efficiency of 99.5%. It has IP68 protection, MC4 connectors, PLC communication over the PV cables and dimensions of 105 x 105 x 22 mm.
SUN-XL02-B is a Deye photovoltaic optimizer for module-level installation, with a maximum input power of 700 W, a maximum input voltage of 80 V and a maximum current of 15 A. Module-level MPPT tracking can increase energy production by 5-25%.
Maximum power point tracking (MPPT) at module level can increase energy production by 5-25%. The operating status of each photovoltaic module can be monitored in real time to detect problems quickly, and communication over the PV cables removes the need for extra communication cables.
The rapid shutdown function, which quickly brings the DC voltage of the PV array down to a safe range, and the monitoring are only available when the optimizer is used with an optimizer concentrator. The cables have a 4.0 mm² cross-section, with 70 cm on the input and 100 cm on the output, and the connectors are MC4 or compatible.
| Maximum input power | 700 W |
|---|---|
| Maximum input voltage | 80 V |
| MPPT voltage range | 12-80 V |
| Maximum input current | 15 A |
| Peak conversion efficiency | 99.5% |
| Installation dimensions | 105 x 105 x 22 mm |
| Weight | 660 g |
| Cable | 4.0 mm², input 70 cm, output 100 cm |
| Connector | MC4 or compatible with MC4 |
| Operating temperature range | -40 ... 85 °C |
| Level of protection | IP68 |
| Product certification | CE |
| Communication mode | PLC |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
