1.315 € Ohne Steuern

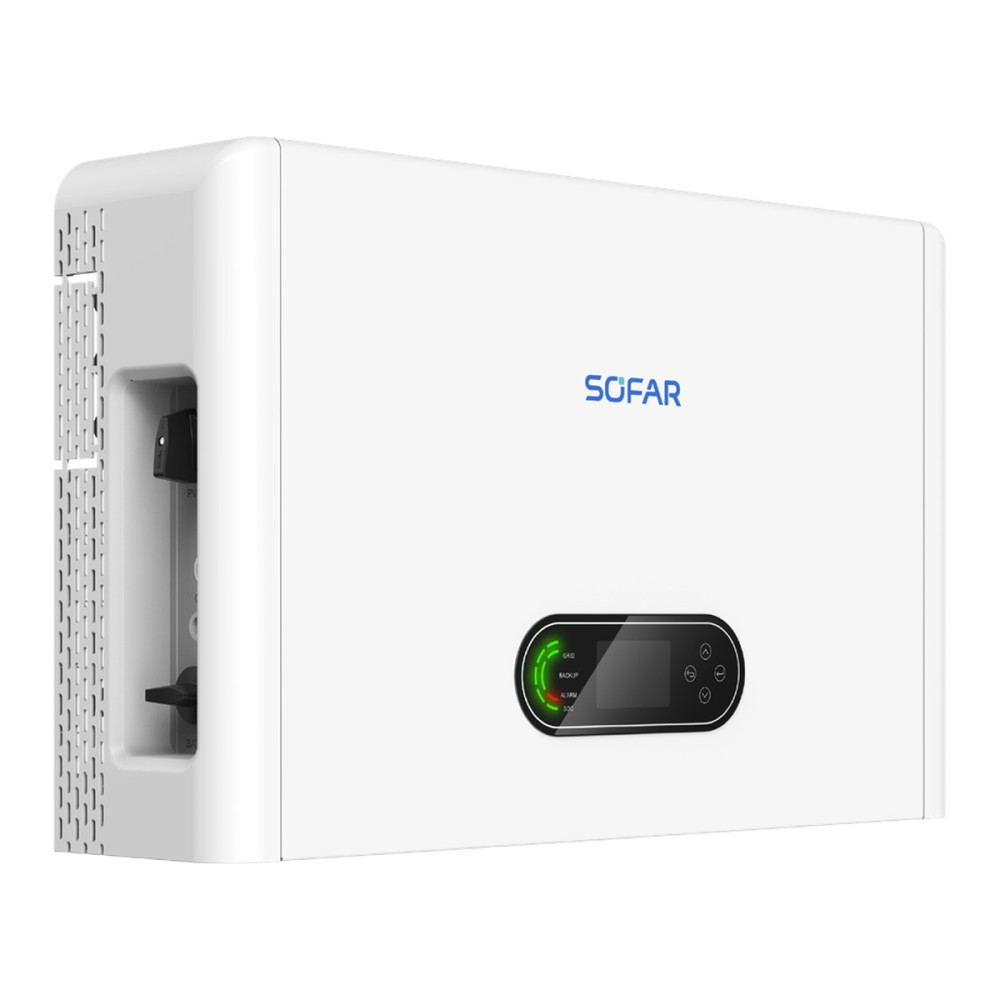

ESI 6.5K-T1 is a 6.5 kW three-phase HV hybrid inverter with 3 MPPT inputs with AFCI (160-950 V, 20 A per input) and a three-phase backup output with 10 ms switchover that supports 100% unbalanced loads. It needs a high-voltage battery: the manufacturer specifies SOFAR BTS 5K modules (350-435 V), which are not included. Ingress protection IP66, weight 30 kg.
ESI 6.5K-T1 is a 6.5 kW three-phase high-voltage (HV) hybrid inverter with 3 MPPT inputs with AFCI, an integrated multi-function EMS and a three-phase backup output that supports 100% unbalanced loads. It is wall mounted and can form an integrated system with SOFAR BTS 5K batteries or be installed separately.
The inverter requires a high-voltage (HV) battery. According to the manufacturer documentation, SOFAR BTS 5K LiFePO4 modules of 5.12 kWh are used, up to 6 modules per inverter. The battery is not included in this product, and the system can also run without a battery, which can be added later. Maximum charging is 10 kW (25 A) and maximum discharging is 6.5 kW (19.5 A).
The backup output is three-phase, with a power equal to the rated power and a peak of 2 x rated power for 10 s. The inverter supports 100% unbalanced three-phase loads, and the unbalanced support function, in on-grid mode, tries to keep the power flows on the three phases balanced. The recommended PV power is up to 13 kWp, with an input current of up to 20 A per MPPT.
Interfaces: RS485, optional Wi-Fi, 4G or LAN, with an LCD and an app. Protections: AFCI on the PV inputs, DC switch, PV and battery reverse polarity, output short circuit, overcurrent and overvoltage, insulation monitoring, residual current, anti-islanding and type II surge protection on PV and AC. Natural cooling with no extra noise, ingress protection IP66.
| Recommended max. PV power | 13 kWp |
|---|---|
| Max. PV input voltage | 1000 V |
| Start-up voltage | 200 V |
| Rated input voltage | 600 V |
| MPP voltage range | 160-950 V |
| Number of MPPT | 3 |
| Max. strings per MPPT | 1/1/1 |
| Max. PV input current per MPPT | 20/20/20 A |
| Max. PV short-circuit current (Isc) | 25/25/25 A |
| AFCI protection | on the PV inputs, integrated |
| Battery voltage range | 350-435 V |
| Number of battery input channels | 1 |
| Max. charging power | 10 kW |
| Max. discharging power | 6.5 kW |
| Max. charging current | 25 A |
| Max. discharging current | 19.5 A |
| Battery type | Lithium-ion |
| BMS communication | CAN |
| Backup voltage and frequency | 3N~+PE, 380/400/415 V, 50/60 Hz |
| Rated backup power | 6.5 kW |
| Rated backup current (380/400/415 V) | 9.9/9.4/9.0 A |
| Max. backup apparent power | 7.15 kVA |
| Max. backup output current | 10.9/10.3/9.9 A |
| Peak backup apparent power | 2 x rated power, 10 s |
| Switching time | 10 ms |
| Asymmetric load | Yes, supports 100% three-phase unbalanced load |
| Grid voltage and frequency | 3(N)~+PE, 380/400/415 V, 50/60 Hz |
| Rated grid power | 6.5 kW |
| Max. grid output current (380/400/415 V) | 10.9/10.3/9.9 A |
| Max. AC input current (380/400/415 V) | 19.8/18.8/18.1 A |
| Power factor | 0.8 lagging - 0.8 leading |
| Max. MPPT efficiency | 99.9 % |
| Max. efficiency | 98.0 % |
| European efficiency | 97.0 % |
| Battery-AC efficiency, charging/discharging | 97.6 % |
| Ingress protection | IP66 |
| Operating temperature range | -30 ... 60 °C (derating above 45 °C) |
| Dimensions (W x H x D) | 708 x 440 x 170 mm |
| Weight | 30 kg |
| Communication | RS485; optional Wi-Fi, 4G or LAN |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
