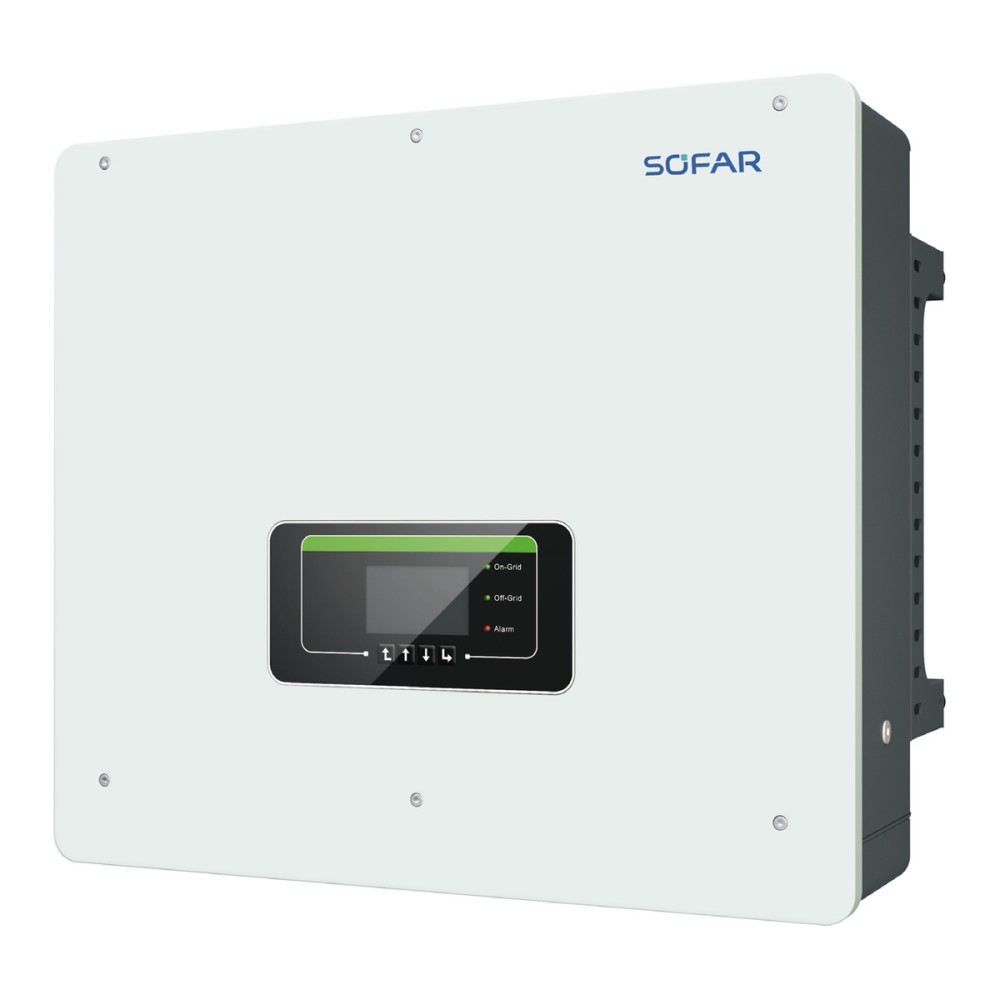

HYD 5KTL-3PH is a 5 kW three-phase HV hybrid inverter with 2 MPPT inputs (180-960 V) and one battery input (180-800 V, 25 A charge and discharge). It needs a high-voltage battery, which is not included; the manufacturer documentation mentions SOFAR BTS 5K and GTX 3000-H. Backup output with switchover under 10 ms, IP65, 33 kg.
HYD 5KTL-3PH is a 5 kW three-phase high-voltage (HV) hybrid inverter with 2 MPPT inputs and one battery input, fully digital operation and a backup output that supports unbalanced loads. It is not an all-in-one system: the battery is mounted separately from the inverter.
The inverter requires a high-voltage (HV) battery, with a voltage between 180 and 800 V. The manufacturer documentation describes connecting SOFAR BTS 5K modules (towers from BTS E5-DS5 to BTS E20-DS5, 5.12 kWh per module) and SOFAR GTX 3000-H batteries (2.5 kWh modules). The battery is not included in this product. The 5 to 8 kW models have one battery input and the 10 to 20 kW models have two.
The backup output has a power equal to the rated power, a peak of 10000 VA for 60 s and a switchover under 10 ms, and the off-grid output can supply unbalanced loads. The recommended PV power is up to 7500 Wp (150% of the rated power). Up to 6 inverters can operate in parallel, with monitoring through an app.
Interfaces: RS485, CAN and Wi-Fi, optional Ethernet or 4G, with an LCD and Bluetooth. Protections: DC switch, PV and battery reverse polarity, output short circuit, overcurrent and overvoltage, insulation monitoring, residual current, anti-islanding and type II surge protection on PV and AC. The inverter is transformerless and wall mounted.
| Recommended max. PV power | 7500 Wp |
|---|---|
| Max. PV input voltage | 1000 V |
| Start-up voltage | 200 V |
| Rated input voltage | 600 V |
| MPPT operating voltage range | 180-960 V |
| Number of MPPT | 2 |
| Max. strings per MPPT | 1/1 |
| Max. PV input current per MPPT | 12.5/12.5 A |
| Max. PV short-circuit current per MPPT | 15/15 A |
| Battery voltage range | 180-800 V |
| Number of battery input channels | 1 |
| Max. charge/discharge power | 5 kW |
| Max. charge/discharge current | 25 A |
| Battery type | Lithium-ion and lead-acid |
| BMS communication | CAN, RS485 |
| Rated grid power | 5 kW |
| Rated grid current | 7.2 A |
| Grid voltage and frequency | 3/N/PE, 230/400 V, 50/60 Hz |
| Max. grid apparent power | 5500 VA |
| Max. current output to grid | 8 A |
| Max. AC current from grid | 15 A |
| Power factor | 0.8 lagging - 0.8 leading |
| Rated backup power | 5 kW |
| Peak backup apparent power | 10000 VA, 60 s |
| Max. backup output current | 8 A |
| Switching time | under 10 ms |
| Max. MPPT efficiency | 99.9 % |
| Max. efficiency | 98.0 % |
| European efficiency | 97.5 % |
| Battery-AC efficiency, charging/discharging | 97.6 % |
| Max. number of parallel units | 6 |
| Standby self-consumption | under 20 W |
| Ingress protection | IP65 |
| Operating temperature range | -30 ... 60 °C |
| Cooling | natural |
| Dimensions (W x H x D) | 586.6 x 515 x 261.2 mm |
| Weight | 33 kg |
| Communication | RS485, CAN, Wi-Fi; optional Ethernet or 4G |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
