22.567 € Ohne Steuern

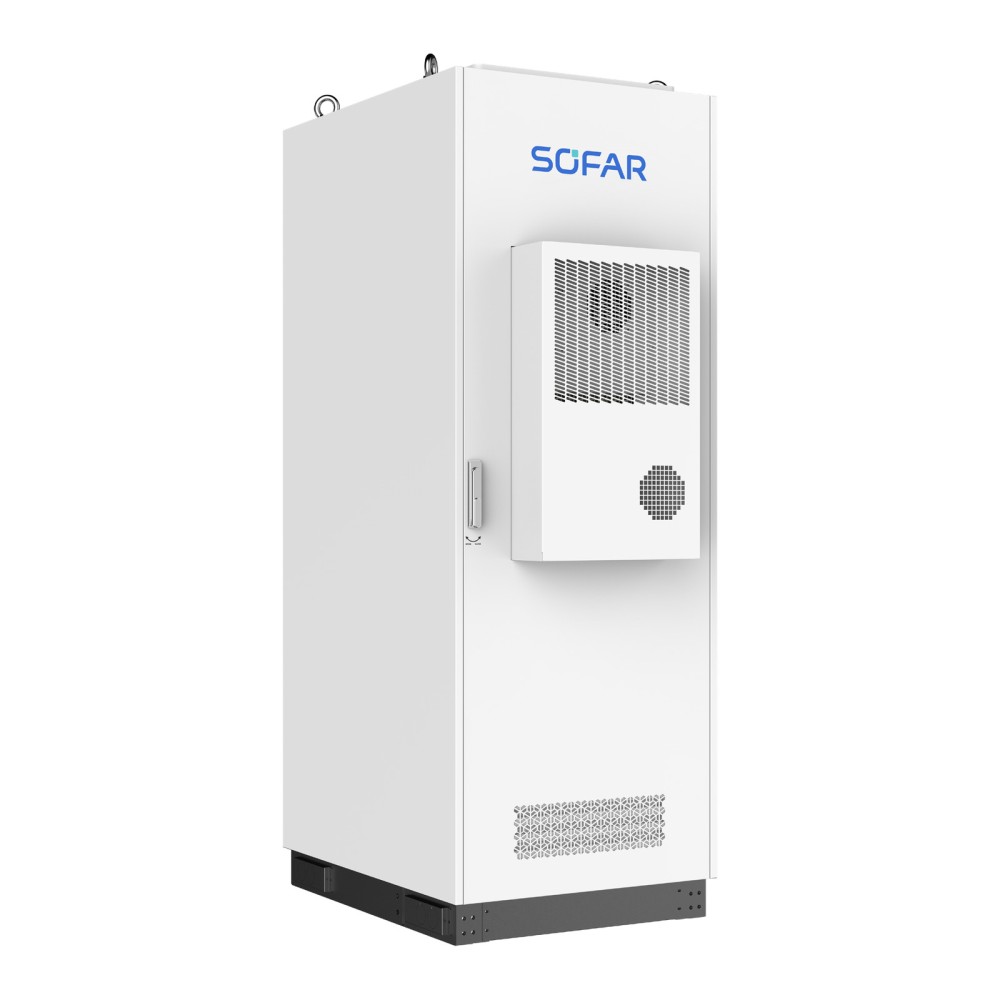

CBS8000-96KWH is a SOFAR LiFePO4 battery cabinet of 96.46 kWh (314 Ah, 600 V nominal) with a rated power of 46.08 kW, charging up to 150 A and discharging up to 200 A. It has a built-in air conditioner, a double fire suppression system, IP55 and C4. It weighs 1090 kg and measures 2100 x 750 x 1150 mm.
CBS8000-96KWH is a high-voltage LiFePO4 battery cabinet, pre-installed in the factory, with a total energy of 96.46 kWh (6 battery packs), a built-in air conditioner and IP55 protection with C4 corrosion resistance. It connects to SOFAR hybrid inverters with an HV battery.
The cabinet contains 16 kWh battery packs with BMS, a battery control unit (BCU), a thermal management system, a fire suppression system and a built-in air conditioner (1.5 kW cooling, 1 kW heating). Each battery module has active balancing. Fire protection is by aerogel; perfluorohexanone is optional.
The cabinet is installed on the floor, on a load-bearing foundation, and is moved with a forklift rated for more than 4 t. The operating temperature is -20 ... 50 °C, with derating above 45 °C; to charge below 0 °C the battery heating function must be enabled. Communication with the inverter is CAN. The SOFAR manuals describe it together with the HYD-40K...60K-T1 and 80-125KTLX-G4-ESS inverters.
| Model | CBS8000-96KWH |
|---|---|
| Battery type | LiFePO4 (lithium iron phosphate) |
| Rated capacity | 314 Ah |
| Pack configuration | 1P16S |
| Pack quantity | 6 |
| Battery total energy | 96.46 kWh |
| Rated power | 46.08 kW |
| Nominal voltage | 600 V |
| Operating voltage range | 600-1000 V |
| Max. charging current | 150 A |
| Max. discharging current | 200 A |
| Communication | CAN |
| Protective class | I |
| Ingress protection | IP55 |
| Anti-corrosion grade | C4 |
| Operating temperature range | -20 ... 50 °C (derating above 45 °C) |
| Relative humidity range | 5-95 % |
| Max. operating altitude | 3000 m (derating above 2000 m) |
| Cooling | Intelligent airflow, air conditioner |
| Air conditioner power | 1.5 kW cooling, 1 kW heating |
| Noise | 65 dB (typical) |
| Fire protection | Aerogel (optional perfluorohexanone) |
| Dimensions (W x H x D) | 750 x 2100 x 1150 mm (±20 mm) |
| Weight | 1090 kg |
| Installation | Floor mounted |
| Max. cabinets in parallel | 4 (384 kWh) |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
