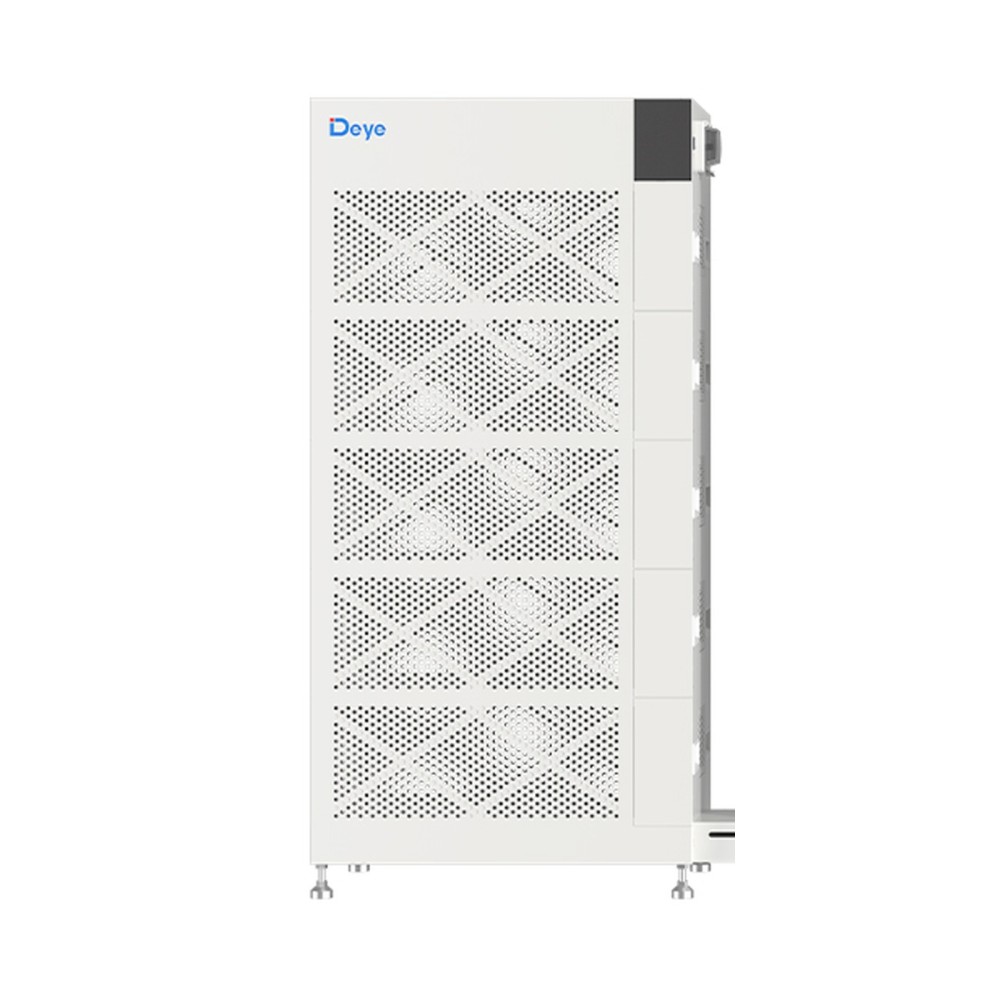

GB-W60 is a 60.1 kWh Deye HV storage system made of 5 GB-W-Pack12-2-A3 LiFePO4 modules of 12.03 kWh in series, the GB-W-PDU-2 control box and the GB-W-Base. The nominal voltage is 256 V, the max. continuous current 230 A, the protection IP20, communication CAN or RS485 and the weight about 500 kg.
GB-W60 is a high-voltage lithium iron phosphate (LiFePO4) storage system of the Deye GB-W (ORION W) series, for indoor use in large homes and small commercial and industrial applications. It is a tower of 5 GB-W-Pack12-2-A3 modules in series, the GB-W-PDU-2 control box and the GB-W-Base, with 60.1 kWh of energy and 256 V nominal voltage.
The modules stack without cables between them and have their own fan control, pack-level and cell-level balancing and pack-level aerosol fire suppression. The tower can be extended up to 16 modules (192.5 kWh). The recommended depth of discharge is 95% and the cycle life at least 6000 cycles at 25 ± 2 °C and 0.5C, down to 70% of the capacity.
Deye recommends the GB-W60 tower with the SUN-30K-SG02HP3-EU-BM3-P and SUN-40K-SG02HP3-EU-BM4-P hybrid inverters. Deye recommends them with the SUN-30/40/50K-SG02HP3-EU-BM3/4-P, SUN-60/70/80K-SG02HP3-EU-EM6 and SUN-100/125K-SG02HP3-EU-GM8/10 HV hybrid inverters and the SUN-100/125K-PCS01HP3 modules; other official configurations: SUN-30/40/50K-SG01HP3-EU-BM3/BM4.
| Cell type | LiFePO4 |
|---|---|
| Module energy | 12.03 kWh |
| Module nominal voltage | 51.2 V |
| Module capacity | 235 Ah |
| Modules in series | 5 |
| System nominal voltage | 256 V |
| System operating voltage | 208 ... 292 V |
| System energy | 60.1 kWh |
| Nominal charge/discharge power | 58.8 kW |
| Max. continuous charge/discharge current | 230 A |
| Peak current | 322 A (1 s) |
| Charge temperature | 0 ... 55 °C |
| Discharge temperature | -20 ... 55 °C |
| Communication port | CAN / RS485 |
| Cooling | natural air cooling |
| Recommended depth of discharge | 95% |
| Cycle life | ≥ 6000 (25 ± 2 °C, 0.5C / 0.5C, EOL 70%) |
| Warranty | 10 years |
| Humidity | 0 ... 85% |
| Max. altitude | 3000 m |
| Ingress protection | IP20 |
| Noise | ≤ 60 dB (25 °C, 1 m) |
| Storage temperature | -30 ... 60 °C |
| Installation | floor mount, indoor |
| Certifications | IEC 62619, IEC 62477, IEC 62040, IEC 62933, VDE-2510, IEC 61000, UN38.3 |
| Dimensions (W x D x H) | 690 x 436 x 1610.7 mm |
| Approximate weight | 500 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
