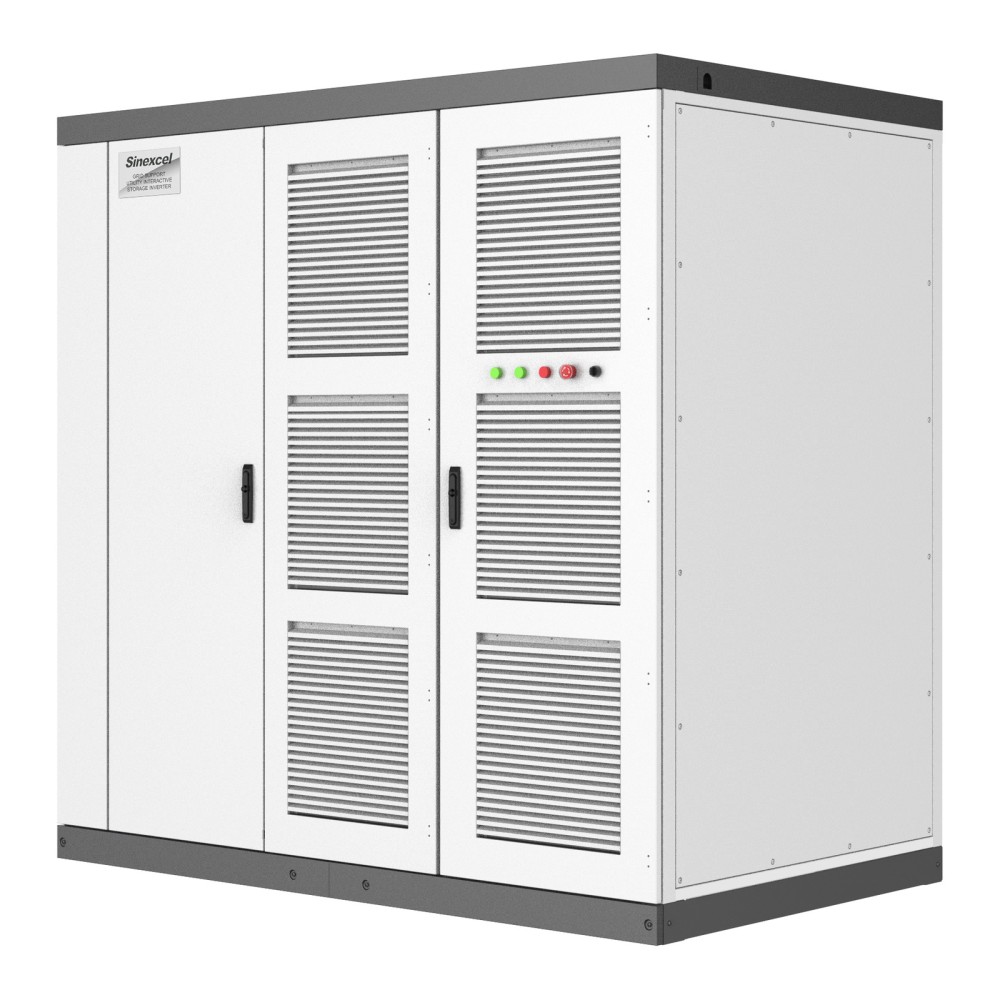

PWS1-1725KTL-H-EX is a modular Sinexcel bidirectional power conversion system, from 215 kVA (1 module) to 1725 kVA (8 modules), with a three-phase three-wire 690 V AC output, a DC voltage of 1000-1500 V, a peak efficiency of 98.5 %, IP54 protection and air cooling. It communicates over RS485, Ethernet and CAN, with Modbus TCP/RTU, IEC104 and IEC61850 protocols.
PWS1-1725KTL-H-EX is a modular Sinexcel bidirectional power conversion system (PCS) for energy storage systems, with 1 to 8 modules and a nominal apparent power from 215 to 1725 kVA. It connects directly to the 690 V AC grid and works with a battery voltage of 1000-1500 V DC, in an outdoor NEMA 3R cabinet with air cooling.
Each module provides 215 kVA and the maximum DC current is 201 A per module, reaching 1612 A with 8 modules. The DC voltage is 1000-1500 V for full power charging and 1070-1500 V for full power discharging. The power factor is adjustable from 0.9 leading to 0.9 lagging and the THDi is 3 %.
The datasheet gives a response time below 20 ms, built-in grid-support functions and automatic peak shaving and load shifting strategies. The operating temperature is -20 ... 60 °C, with derating above 45 °C, and the maximum altitude is 3000 m.
| Nominal AC power | 215 / 431 / 646 / 862 / 1078 / 1293 / 1509 / 1725 kVA (1-8 modules) |
|---|---|
| Number of modules | 1-8 |
| AC connection | Three-phase three-wire (3P3W) |
| Rated AC output voltage | 690 V (-15 % ... +10 %) |
| Rated AC output frequency | 50/60 Hz (-5 ... +5 Hz) |
| THDi | 3 % |
| Power factor | 0.9 leading ... 0.9 lagging |
| DC voltage, full power charging | 1000-1500 V |
| DC voltage, full power discharging | 1070-1500 V |
| Maximum DC current every branch | 201 A per module; 1612 A with 8 modules |
| Peak efficiency | 98.5 % (with auxiliary source) |
| Response time | <20 ms |
| Protection class | IP54 (NEMA 3R outdoor) |
| Working temperature range | -20 ... 60 °C (derating over 45 °C) |
| Cooling system | Air cooling |
| Humidity | 0-95 %, non-condensing |
| Altitude | 3000 m (derating over 3000 m) |
| Communication | RS485, Ethernet, CAN |
| Protocols | Modbus TCP/RTU, IEC104, IEC61850 |
| Certification | EN 50549-2, VDE 4110, VDE 4120, G99, IEC 62477, IEC 61000, IEC 62109 |
| Dimension (W x D x H) | 2200 x 1300 x 2160 mm |
| Weight | 1549 kg (1 module) ... 2200 kg (8 modules) |
