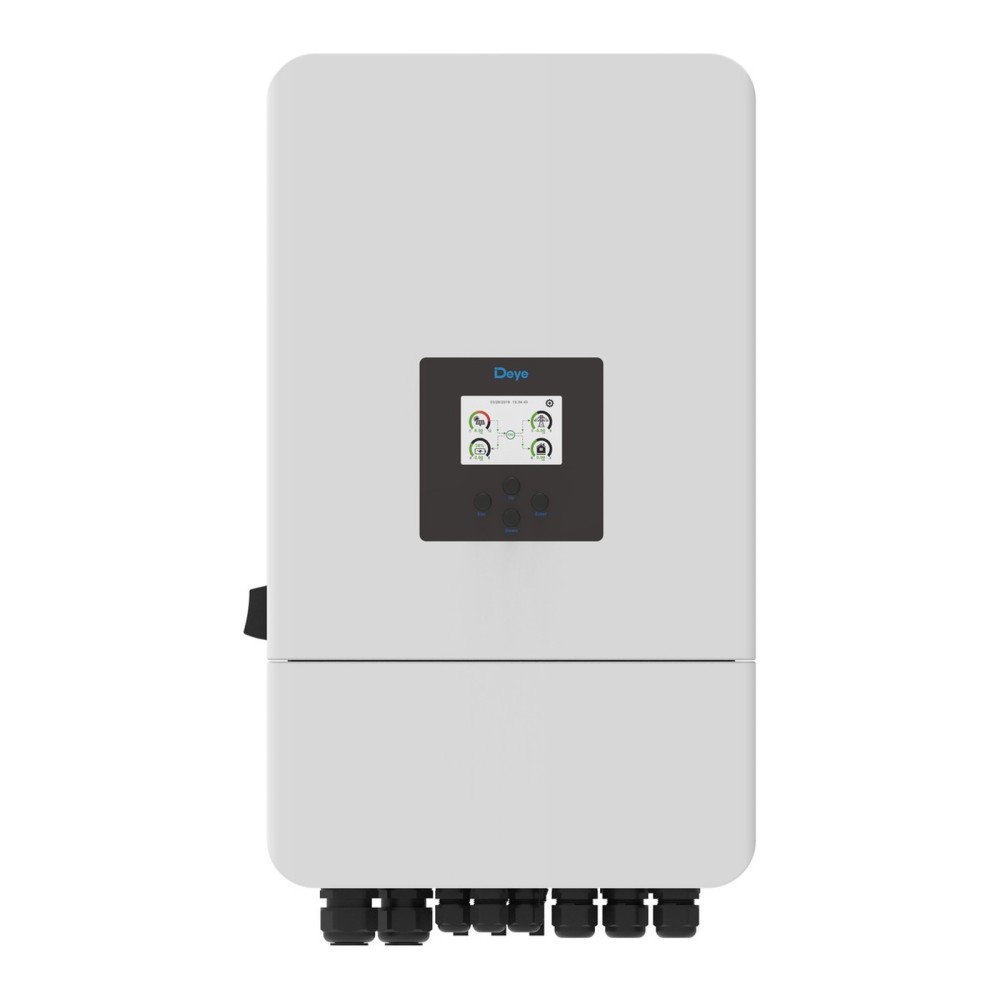

6 kW inverter ibrido Deye, trifase, 48 V, SUN-6K-SG05LP3-EU-SM2

Name: 6 kW inverter ibrido Deye, trifase, 48 V, SUN-6K-SG05LP3-EU-SM2
Brand: Deye
SKU: SUN-6K-SG05LP3-EU-SM2
Price: 1819.00 EUR
Availability: InStock

1.819 € Tasse incluse

1.516 € Tasse escluse

SUN-6K-SG05LP3-EU-SM2 is a 6 kW three-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (200-650 V), a maximum charge current of 135 A and a maximum efficiency of 97.6%. It has a colour LCD, IP65 protection and Wi-Fi, RS485 and CAN communication; parallel operation allows up to 10 units.

Riferimento SUN-6K-SG05LP3-EU-SM2

I suoi diritti di garanzia legale

SUN-6K-SG05LP3-EU-SM2 - Three-phase hybrid inverter 6 kW for low-voltage batteries

SUN-6K-SG05LP3-EU-SM2 is a 6 kW three-phase hybrid inverter for low-voltage batteries (40-60 V range), with 2 MPPT and a colour touch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 10 units, in on-grid and off-grid systems.

Main features:

AC rated power: 6000 W
Battery: 40-60 V, max. charge current 135 A
PV input: 2 MPPT, 200-650 V, maximum 9600 W
Maximum efficiency: 97.6%
Communication: Wi-Fi, RS485, CAN
Protection and cooling: IP65, intelligent air cooling
Parallel operation: Up to 10 units

The inverter works with lead-acid or lithium-ion batteries and adapts automatically to the BMS of a lithium battery. It offers 6 programmable time periods for charging and discharging the battery and can store energy from a diesel generator.

It can be AC-coupled to an existing solar installation to retrofit it; in off-grid mode the peak power is twice the rated power, for 10 s. The output accepts 100% unbalanced load, with up to 50% of the rated power on each phase, and the low-voltage battery side has transformer isolation. Up to 10 units can be connected in parallel, together with several batteries in parallel.

The integrated protections include DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection; AFCI is optional.

Technical specifications

Inverter type	Three-phase hybrid inverter
Battery type	Lead-acid or lithium-ion
Battery voltage range	40-60 V
Max. charging/discharging current	135 A
Charging strategy for lithium-ion batteries	Self-adaptation to the BMS
Number of battery inputs	1
Max. PV access power	12000 W
Max. PV input power	9600 W
Max. PV input voltage	800 V
Start-up voltage	160 V
MPPT voltage range	200-650 V
Rated PV input voltage	550 V
Max. operating PV input current	20+20 A
Max. input short-circuit current	30+30 A
Number of MPP trackers (strings per tracker)	2 (1+1)
Rated AC active power	6000 W
Max. AC apparent power	6600 VA
Rated AC current (input/output)	9.1/8.7 A
Max. AC current (input/output)	10/9.6 A
Max. continuous AC passthrough (grid to load)	45 A
Peak power (off-grid)	2 x rated power, 10 s
Power factor range	0.8 leading to 0.8 lagging
Rated AC voltage	220/380 V, 230/400 V, 0.85 Un-1.1 Un, 3L+N+PE
Rated frequency and range	50/45-55 Hz, 60/55-65 Hz
Total current harmonic distortion THDi	<3% of nominal power
DC injection current	<0.5% of In
Max. efficiency	97.6%
Euro efficiency	97.0%
MPPT efficiency	>99%
Integrated protections	DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Surge protection level	Type II (DC), Type II (AC)
Display	LCD
Communication interfaces	Wi-Fi, RS485, CAN
Operating temperature range	-40 ... 60 °C, derating above 45 °C
Permissible ambient humidity	0-100%
Permissible altitude	3000 m
Noise	≤55 dB
Ingress protection (IP) rating	IP65
Inverter topology	Non-isolated (solar), isolated (battery)
Overvoltage category	OVC II (DC), OVC III (AC)
Parallel operation	Yes, up to 10 units
Dimensions (height x width x depth)	660 x 386 x 250 mm
Weight	35.2 kg
Type of cooling	Intelligent air cooling
Grid regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, G98, VDE-AR-N 4105
Safety and EMC standards	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Scheda dati

Riferimento: SUN-6K-SG05LP3-EU-SM2
MPN: SUN-6K-SG05LP3-EU-SM2
Tipo di prodotto: Inverter
Tipo di inverter: Ibrido (MPPT integrato)
Fasi: Trifase
Classe di potenza: 3,5-6 kW
Potenza continua in uscita (W, 25 °C): 6000 W
Potenza di picco: 2 x la potenza nominale, 10 s
Efficienza massima: 97,6 %
Tensione batteria: 48 V
Intervallo di tensione di ingresso DC: 40-60 V
Corrente di carica massima: 135 A
Tensione FV massima di ingresso: 800 V
Numero di MPPT: 2
Intervallo di tensione MPPT: 200-650 V
Tensione di uscita AC: 220/380 V, 230/400 V
Frequenza di uscita: 50/60 Hz
Corrente massima di ingresso AC: 10 A
Funzionamento in parallelo: Sì
Interfacce di comunicazione: CAN-bus
RS485
Wi-Fi
Protezioni: Polarità inversa DC, sovracorrente, cortocircuito e sovratensione in uscita AC, protezione termica, monitoraggio componente DC, anti-isola, rilevamento isolamento e corrente residua, AFCI opzionale
Dimensioni (A x L x P): 660 x 386 x 250 mm
Peso: 35,2 kg
Grado di protezione (IP): IP65
Temperatura di esercizio: -40 ... 60 °C
Umidità relativa massima: 100 %
Norme e conformità: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, G98, VDE-AR-N 4105; IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.

Scheda tecnica (EN)
Scarica (288.48KB)
