9.576 € Sin impuestos

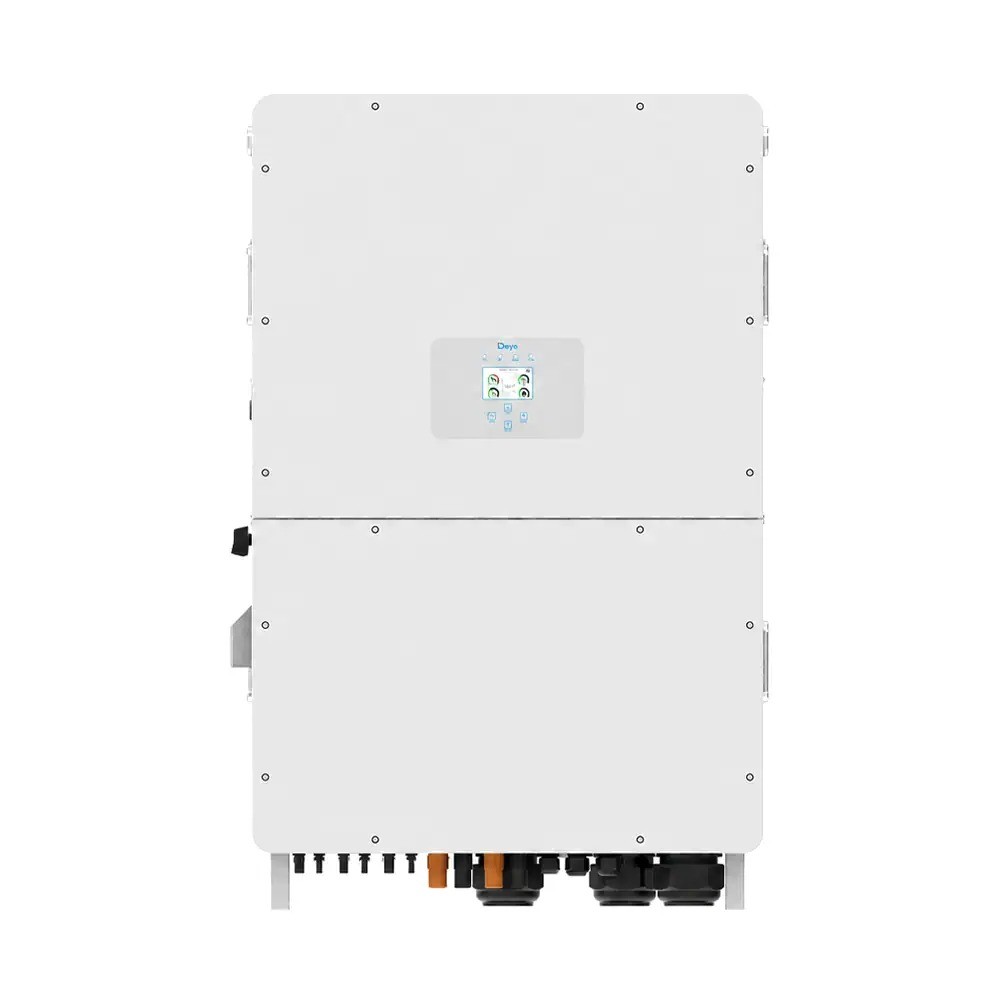

SUN-125K-SG02HP3-EU-GM10 is a 125 kW three-phase hybrid inverter with ten MPPT inputs (150-850 V) and a high-voltage battery input of 160-1000 V. Maximum efficiency 98.70 %, IP65 protection rating, parallel operation of up to 10 units. Suited to photovoltaic systems with storage, grid-connected or off-grid.
SUN-125K-SG02HP3-EU-GM10 is a 125 kW three-phase hybrid inverter with ten MPPT inputs, designed for photovoltaic systems with storage in high-voltage lithium-ion batteries (160-1000 V). It combines conversion of the panel energy, battery charging and supply of the loads in a single unit, and operates grid-connected or off-grid.
The photovoltaic input accepts up to 200000 W (maximum PV access power 250000 W) across ten MPPT inputs, with a maximum voltage of 1000 V, a start-up voltage of 180 V and a maximum operating current of 42 x 10 A. The rated PV input voltage is 650 V.
The battery input is high voltage (160-1000 V), for lithium-ion batteries with self-adaptation to the BMS, with a maximum charge and discharge current of 100+100 A. The unit supports 6 time periods for battery charging and discharging, AC coupling to retrofit an existing solar system, and storing energy from a diesel generator.
The AC output is three-phase (3L+N+PE, 220/380 V or 230/400 V), with a continuous AC pass-through from grid to load of 250 A and an off-grid peak power of 1.5 times the rated power for 10 s. Up to 10 units can be paralleled for grid-connected and off-grid operation, and several batteries can run in parallel. The IP65 enclosure covers temperatures of -40 ... +60 °C, with derating above 45 °C.
| Product type | Inverter |
|---|---|
| Inverter type | Hybrid (built-in MPPT) |
| Phases | Three-phase |
| Battery voltage | HV (high voltage) |
| Power class | 20+ kW |
| Continuous output power (W, 25 °C) | 125000 W |
| Peak power | 187500 W, 10 s |
| Maximum efficiency | 98,70 % |
| Number of MPPT trackers | 10 |
| Max. PV input voltage | 1000 V |
| MPPT voltage range | 150-850 V |
| DC input voltage range | 160-1000 V |
| Max. charge current | 100+100 A |
| Max. AC input current | 250 A |
| AC output voltage | 220/380 V, 230/400 V |
| Output frequency | 50/60 Hz |
| Parallel operation | Yes |
| Communication interfaces | RS485, CAN-bus |
| Ingress protection (IP) | IP65 |
| Operating temperature | -40 ... 60 °C |
| Max. relative humidity | 100 % |
| Protections | DC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, residual current |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4 |
| Dimensions (H x W x D) | 1091 x 734 x 344 mm |
| Weight | 161,7 kg |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
Las compatibilidades se calculan automáticamente a partir de los datos técnicos de los fabricantes y son meramente informativas. Para sistemas complejos, le recomendamos que un asesor revise la configuración antes de hacer el pedido. Detalles en los Términos y condiciones
