9.576 € Ohne Steuern

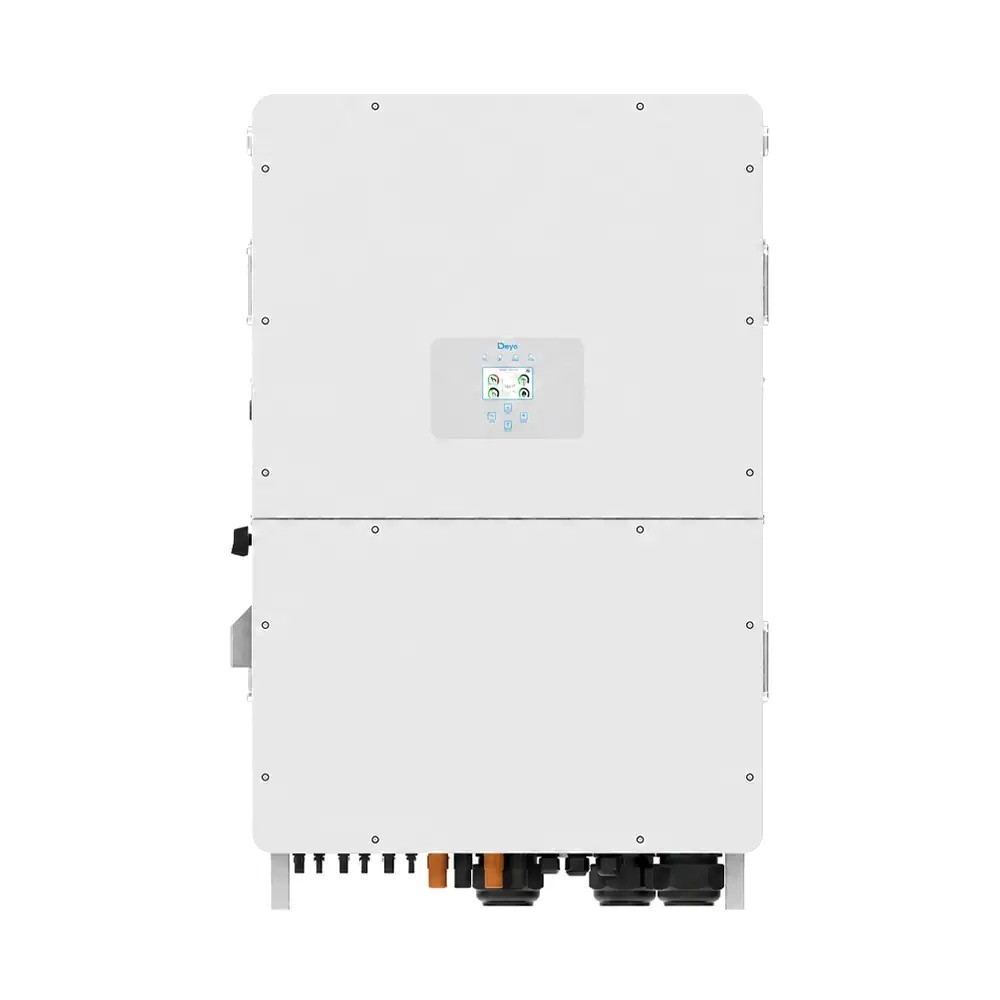

SUN-125K-SG02HP3-EU-GM10 is a 125 kW three-phase hybrid inverter with ten MPPT inputs (150-850 V) and a high-voltage battery input of 160-1000 V. Maximum efficiency 98.70 %, IP65 protection rating, parallel operation of up to 10 units. Suited to photovoltaic systems with storage, grid-connected or off-grid.
SUN-125K-SG02HP3-EU-GM10 is a 125 kW three-phase hybrid inverter with ten MPPT inputs, designed for photovoltaic systems with storage in high-voltage lithium-ion batteries (160-1000 V). It combines conversion of the panel energy, battery charging and supply of the loads in a single unit, and operates grid-connected or off-grid.
The photovoltaic input accepts up to 200000 W (maximum PV access power 250000 W) across ten MPPT inputs, with a maximum voltage of 1000 V, a start-up voltage of 180 V and a maximum operating current of 42 x 10 A. The rated PV input voltage is 650 V.
The battery input is high voltage (160-1000 V), for lithium-ion batteries with self-adaptation to the BMS, with a maximum charge and discharge current of 100+100 A. The unit supports 6 time periods for battery charging and discharging, AC coupling to retrofit an existing solar system, and storing energy from a diesel generator.
The AC output is three-phase (3L+N+PE, 220/380 V or 230/400 V), with a continuous AC pass-through from grid to load of 250 A and an off-grid peak power of 1.5 times the rated power for 10 s. Up to 10 units can be paralleled for grid-connected and off-grid operation, and several batteries can run in parallel. The IP65 enclosure covers temperatures of -40 ... +60 °C, with derating above 45 °C.
| Product type | Inverter |
|---|---|
| Inverter type | Hybrid (built-in MPPT) |
| Phases | Three-phase |
| Battery voltage | HV (high voltage) |
| Power class | 20+ kW |
| Continuous output power (W, 25 °C) | 125000 W |
| Peak power | 187500 W, 10 s |
| Maximum efficiency | 98,70 % |
| Number of MPPT trackers | 10 |
| Max. PV input voltage | 1000 V |
| MPPT voltage range | 150-850 V |
| DC input voltage range | 160-1000 V |
| Max. charge current | 100+100 A |
| Max. AC input current | 250 A |
| AC output voltage | 220/380 V, 230/400 V |
| Output frequency | 50/60 Hz |
| Parallel operation | Yes |
| Communication interfaces | RS485, CAN-bus |
| Ingress protection (IP) | IP65 |
| Operating temperature | -40 ... 60 °C |
| Max. relative humidity | 100 % |
| Protections | DC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, residual current |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4 |
| Dimensions (H x W x D) | 1091 x 734 x 344 mm |
| Weight | 161,7 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
