Nuevo

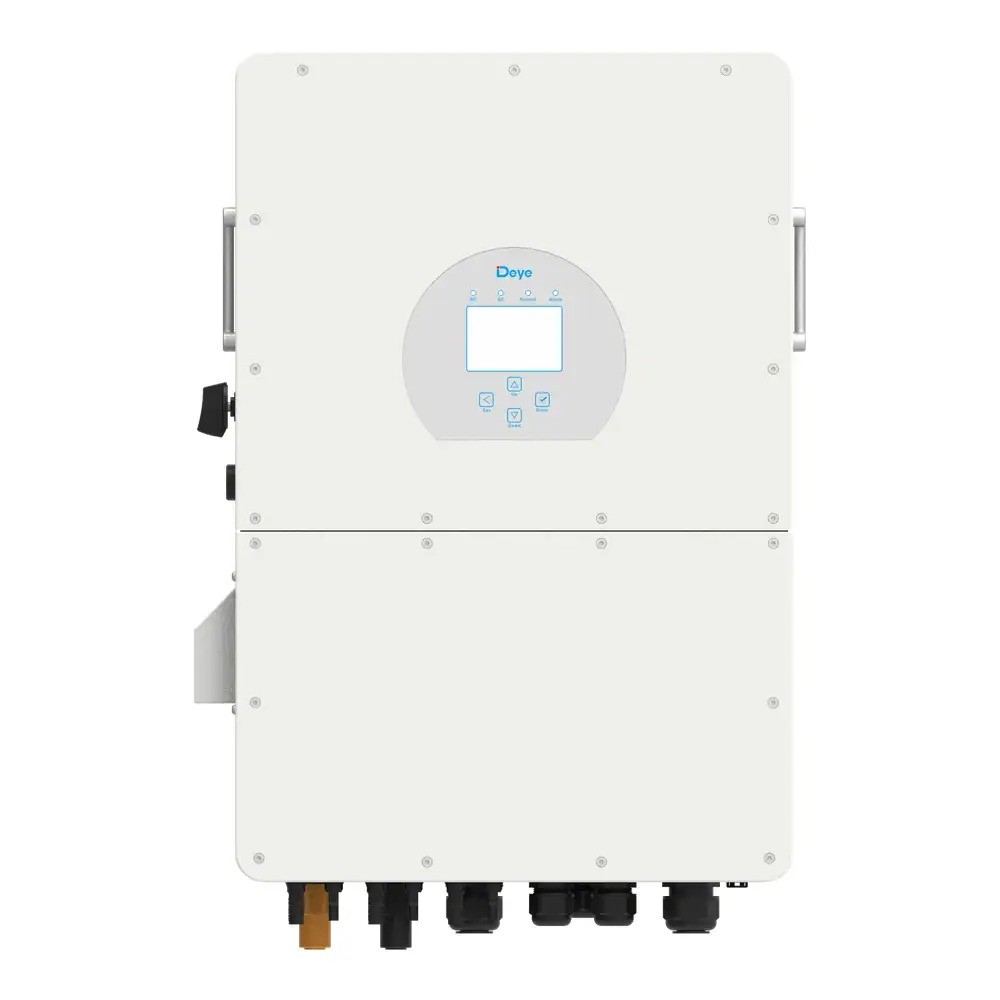

30 kW inversor híbrido Deye, trifásico, HV, SUN-30K-SG02HP3-EU-AM3

Name: 30 kW inversor híbrido Deye, trifásico, HV, SUN-30K-SG02HP3-EU-AM3
Brand: Deye
SKU: SUN-30K-SG02HP3-EU-AM3
Price: 3425.00 EUR
Availability: InStock

3.425 € Impuesto incluido

2.854 € Sin impuestos

SUN-30K-SG02HP3-EU-AM3 is a 30 kW three-phase hybrid inverter with three MPPT inputs (150-850 V) and a high-voltage battery input of 160-700 V. Maximum efficiency 98.5 %, IP65 protection rating, parallel operation of up to 10 units. Suited to photovoltaic systems with storage, grid-connected or off-grid.

Referencia SUN-30K-SG02HP3-EU-AM3

Sus derechos de garantía legal

SUN-30K-SG02HP3-EU-AM3 - Three-phase hybrid inverter 30 kW for HV batteries

SUN-30K-SG02HP3-EU-AM3 is a 30 kW three-phase hybrid inverter with three MPPT inputs, designed for photovoltaic systems with storage in high-voltage lithium-ion batteries (160-700 V). It combines conversion of the panel energy, battery charging and supply of the loads in a single unit, and operates grid-connected or off-grid.

Main features:

Rated AC power: 30 kW
MPPT inputs: 3, range 150-850 V
Battery voltage: 160-700 V, lithium-ion HV
Charge/discharge current: 75 A
Maximum efficiency: 98,5 %
Parallel operation: up to 10 units
Protection rating: IP65

The photovoltaic input accepts up to 48000 W (maximum PV access power 60000 W) across three MPPT inputs, with a maximum voltage of 1000 V, a start-up voltage of 180 V and a maximum operating current of 36+36+36 A. The rated PV input voltage is 600 V.

The battery input is high voltage (160-700 V), for lithium-ion batteries with self-adaptation to the BMS, with a maximum charge and discharge current of 75 A. The unit supports 6 time periods for battery charging and discharging, AC coupling to retrofit an existing solar system, and storing energy from a diesel generator. The AC output supports 100 % unbalanced loads.

The AC output is three-phase (3L+N+PE, 220/380 V or 230/400 V), with a continuous AC pass-through from grid to load of 80 A and an off-grid peak power of 1.5 times the rated power for 10 s. Up to 10 units can be paralleled for grid-connected and off-grid operation, and several batteries can run in parallel. The IP65 enclosure covers temperatures of -40 ... +60 °C, with derating above 45 °C.

Technical specifications

Product type	Inverter
Inverter type	Hybrid (built-in MPPT)
Phases	Three-phase
Battery voltage	HV (high voltage)
Power class	20+ kW
Continuous output power (W, 25 °C)	30000 W
Peak power	45000 W, 10 s
Maximum efficiency	98,5 %
Number of MPPT trackers	3
Max. PV input voltage	1000 V
MPPT voltage range	150-850 V
DC input voltage range	160-700 V
Max. charge current	75 A
Max. AC input current	80 A
AC output voltage	220/380 V, 230/400 V
Output frequency	50/60 Hz
Parallel operation	Yes
Communication interfaces	RS485, CAN-bus
Ingress protection (IP)	IP65
Operating temperature	-40 ... 60 °C
Max. relative humidity	100 %
Protections	DC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, residual current
Standards and compliance	IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Dimensions (H x W x D)	688 x 448 x 270 mm
Weight	46 kg

Ficha de datos

Referencia: SUN-30K-SG02HP3-EU-AM3
NMP: SUN-30K-SG02HP3-EU-AM3
Tipo de producto: Inversor
Tipo de inversor: Híbrido (MPPT integrado)
Fases: Trifásico
Clase de potencia: 20+ kW
Potencia continua de salida (W, 25 °C): 30000 W
Potencia pico: 45000 W, 10 s
Eficiencia máxima: 98,5 %
Tensión de batería: HV (alta tensión)
Rango de tensión de entrada DC: 160-700 V
Corriente de carga máxima: 75 A
Tensión FV máxima de entrada: 1000 V
Número de MPPT: 3
Rango de tensión MPPT: 150-850 V
Tensión de salida AC: 220/380 V, 230/400 V
Frecuencia de salida: 50/60 Hz
Corriente máxima de entrada AC: 80 A
Funcionamiento en paralelo: Sí
Interfaces de comunicación: CAN-bus
RS485
Protecciones: Polaridad inversa CC, sobrecorriente CA, sobretensión CA, cortocircuito CA, protección térmica, antiisla, corriente residual
Dimensiones (alto x ancho x fondo): 688 x 448 x 270 mm
Peso: 46 kg
Grado de protección (IP): IP65
Temperatura de funcionamiento: -40 ... 60 °C
Humedad relativa máxima: 100 %
Normas y conformidad: IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.

Ficha técnica (EN)
Descargar (173.12KB)
