Nuevo

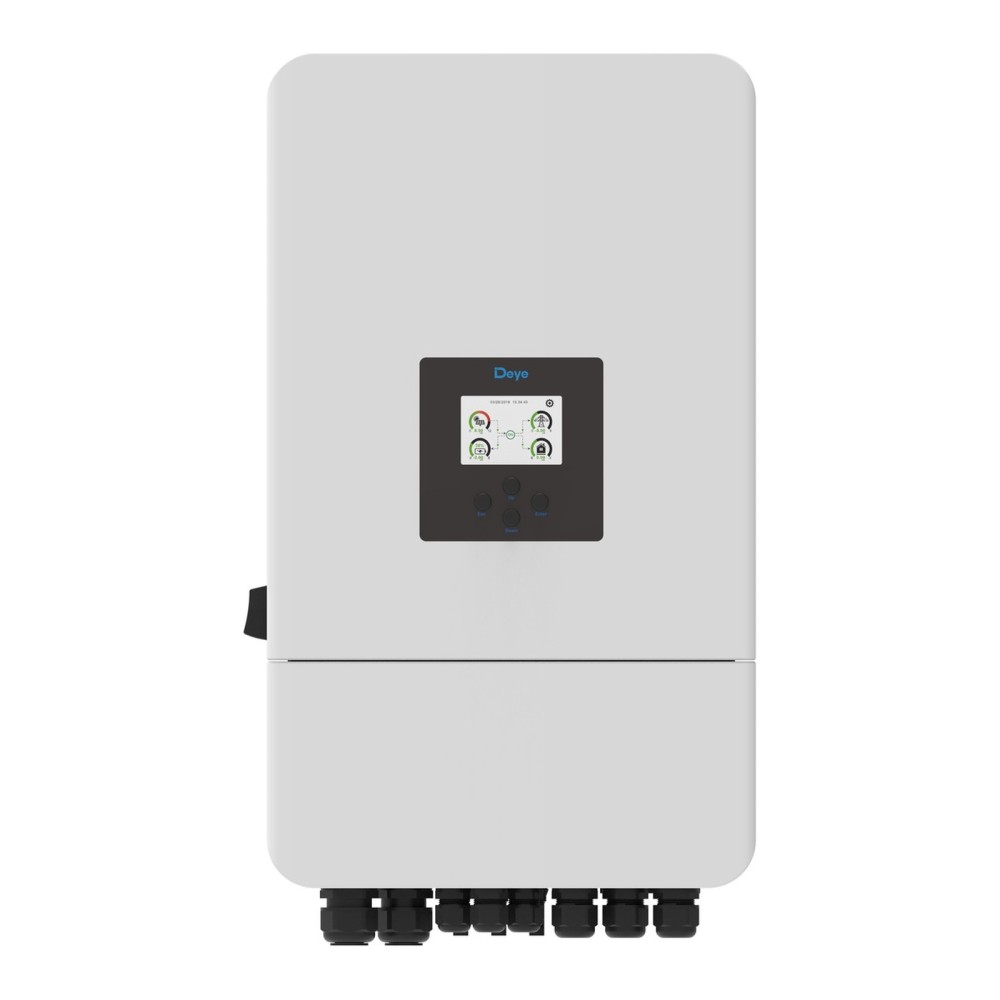

8 kW inversor híbrido Deye, trifásico, 48 V, SUN-8K-SG05LP3-EU-SM2

Name: 8 kW inversor híbrido Deye, trifásico, 48 V, SUN-8K-SG05LP3-EU-SM2
Brand: Deye
SKU: SUN-8K-SG05LP3-EU-SM2
Price: 1896.00 EUR
Availability: InStock

1.896 € Impuesto incluido

1.580 € Sin impuestos

SUN-8K-SG05LP3-EU-SM2 is a 8 kW three-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (200-650 V), a maximum charge current of 190 A and a maximum efficiency of 97.6%. It has a colour LCD, IP65 protection and Wi-Fi, RS485 and CAN communication; parallel operation allows up to 10 units.

Referencia SUN-8K-SG05LP3-EU-SM2

Sus derechos de garantía legal

SUN-8K-SG05LP3-EU-SM2 - Three-phase hybrid inverter 8 kW for low-voltage batteries

SUN-8K-SG05LP3-EU-SM2 is a 8 kW three-phase hybrid inverter for low-voltage batteries (40-60 V range), with 2 MPPT and a colour touch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 10 units, in on-grid and off-grid systems.

Main features:

AC rated power: 8000 W
Battery: 40-60 V, max. charge current 190 A
PV input: 2 MPPT, 200-650 V, maximum 12800 W
Maximum efficiency: 97.6%
Communication: Wi-Fi, RS485, CAN
Protection and cooling: IP65, intelligent air cooling
Parallel operation: Up to 10 units

The inverter works with lead-acid or lithium-ion batteries and adapts automatically to the BMS of a lithium battery. It offers 6 programmable time periods for charging and discharging the battery and can store energy from a diesel generator.

It can be AC-coupled to an existing solar installation to retrofit it; in off-grid mode the peak power is twice the rated power, for 10 s. The output accepts 100% unbalanced load, with up to 50% of the rated power on each phase, and the low-voltage battery side has transformer isolation. Up to 10 units can be connected in parallel, together with several batteries in parallel.

The integrated protections include DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection; AFCI is optional.

Technical specifications

Inverter type	Three-phase hybrid inverter
Battery type	Lead-acid or lithium-ion
Battery voltage range	40-60 V
Max. charging/discharging current	190 A
Charging strategy for lithium-ion batteries	Self-adaptation to the BMS
Number of battery inputs	1
Max. PV access power	16000 W
Max. PV input power	12800 W
Max. PV input voltage	800 V
Start-up voltage	160 V
MPPT voltage range	200-650 V
Rated PV input voltage	550 V
Max. operating PV input current	26+26 A
Max. input short-circuit current	39+39 A
Number of MPP trackers (strings per tracker)	2 (2+2)
Rated AC active power	8000 W
Max. AC apparent power	8800 VA
Rated AC current (input/output)	12.2/11.6 A
Max. AC current (input/output)	13.4/12.8 A
Max. continuous AC passthrough (grid to load)	45 A
Peak power (off-grid)	2 x rated power, 10 s
Power factor range	0.8 leading to 0.8 lagging
Rated AC voltage	220/380 V, 230/400 V, 0.85 Un-1.1 Un, 3L+N+PE
Rated frequency and range	50/45-55 Hz, 60/55-65 Hz
Total current harmonic distortion THDi	<3% of nominal power
DC injection current	<0.5% of In
Max. efficiency	97.6%
Euro efficiency	97.0%
MPPT efficiency	>99%
Integrated protections	DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Surge protection level	Type II (DC), Type II (AC)
Display	LCD
Communication interfaces	Wi-Fi, RS485, CAN
Operating temperature range	-40 ... 60 °C, derating above 45 °C
Permissible ambient humidity	0-100%
Permissible altitude	3000 m
Noise	≤55 dB
Ingress protection (IP) rating	IP65
Inverter topology	Non-isolated (solar), isolated (battery)
Overvoltage category	OVC II (DC), OVC III (AC)
Parallel operation	Yes, up to 10 units
Dimensions (height x width x depth)	660 x 386 x 250 mm
Weight	35.2 kg
Type of cooling	Intelligent air cooling
Grid regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, G98, VDE-AR-N 4105
Safety and EMC standards	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Ficha de datos

Referencia: SUN-8K-SG05LP3-EU-SM2
NMP: SUN-8K-SG05LP3-EU-SM2
Tipo de producto: Inversor
Tipo de inversor: Híbrido (MPPT integrado)
Fases: Trifásico
Clase de potencia: 6-10 kW
Potencia continua de salida (W, 25 °C): 8000 W
Potencia pico: 2 x la potencia nominal, 10 s
Eficiencia máxima: 97,6 %
Tensión de batería: 48 V
Rango de tensión de entrada DC: 40-60 V
Corriente de carga máxima: 190 A
Tensión FV máxima de entrada: 800 V
Número de MPPT: 2
Rango de tensión MPPT: 200-650 V
Tensión de salida AC: 220/380 V, 230/400 V
Frecuencia de salida: 50/60 Hz
Corriente máxima de entrada AC: 13,4 A
Funcionamiento en paralelo: Sí
Interfaces de comunicación: CAN-bus
RS485
Wi-Fi
Protecciones: Polaridad inversa DC, sobrecorriente, cortocircuito y sobretensión en la salida AC, protección térmica, monitorización de componente DC, anti-isla, detección de aislamiento y corriente residual, AFCI opcional
Dimensiones (alto x ancho x fondo): 660 x 386 x 250 mm
Peso: 35,2 kg
Grado de protección (IP): IP65
Temperatura de funcionamiento: -40 ... 60 °C
Humedad relativa máxima: 100 %
Normas y conformidad: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, G98, VDE-AR-N 4105; IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.

Ficha técnica (EN)
Descargar (288.48KB)
