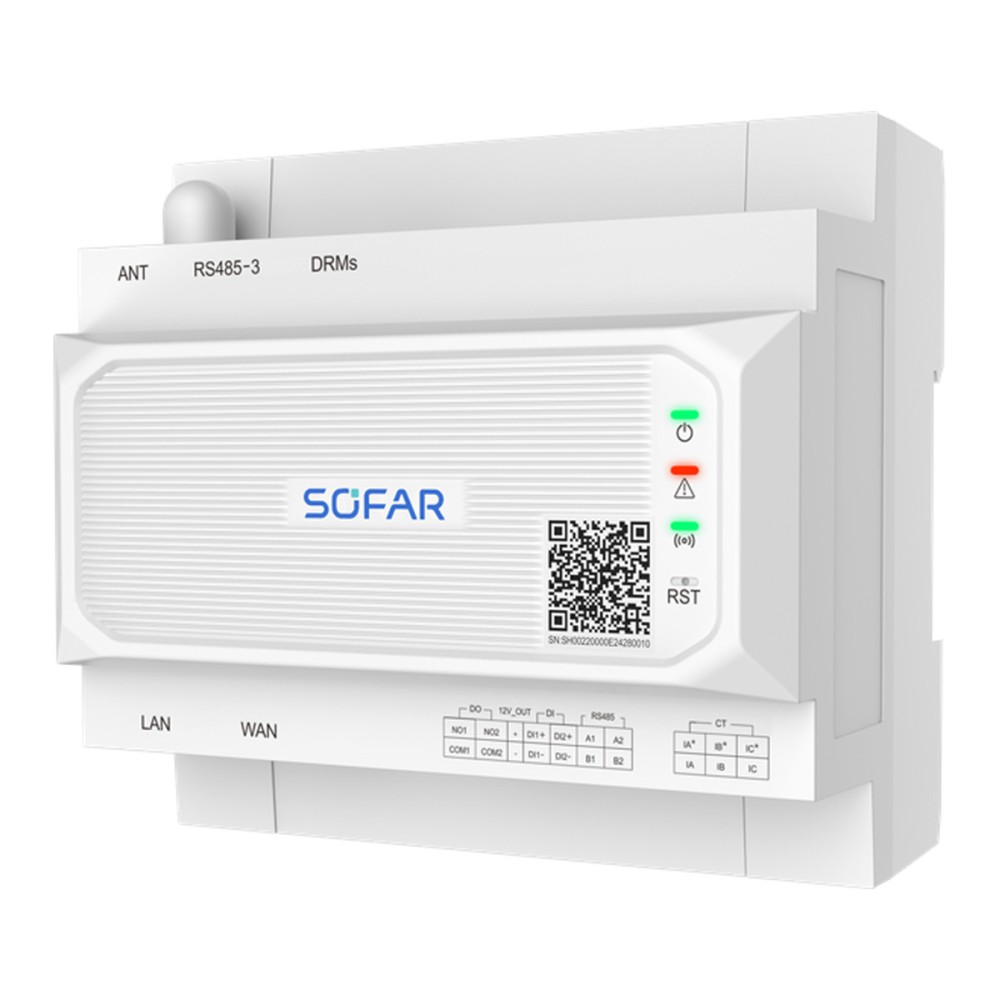

SEM5000 is a smart energy manager with a built-in meter, for DIN rails, which manages up to 6 SOFAR inverters, up to 2 EV11K-AC-02 chargers, up to 12 SG-ready heat pumps and up to 20 Shelly devices. It measures directly up to 63 A (or with current transformers), communicates over Ethernet, WLAN and RS485 and measures 108 x 100 x 65 mm.
SEM5000 is a smart energy manager for DIN-rail mounting, with a built-in meter, which coordinates inverters, electric-vehicle chargers, heat pumps and appliances.
SEM5000 gives a unified view of inverters, batteries, chargers, heat pumps and appliances and supports several modes: feed-in limitation, self-consumption, peak shaving, time-of-use and feed-in priority. It includes forecasting of production and consumption and AI-assisted scheduling.
The built-in meter measures with ±1% accuracy: direct connection up to 63 A or external current transformers with a 50 mA secondary, with a cable of up to 30 m. It has 3 RS485 ports, 2 Ethernet ports, dry-contact digital outputs and inputs (2 + 2) and one DRM port. It operates from -30 to 65 °C, with IP2X protection, for installation in an electrical cabinet.
| Dimensions (W x H x D) | 108 x 100 x 65 mm |
|---|---|
| Mounting type | DIN35 rail |
| Height requirement of cabinet | 47.5 mm |
| Weight | 0.5 kg |
| Power supply 1P2W | 100-240 V, 50 / 60 Hz |
| Power supply 3P3W / 3P4W | 346-415 V, 50 / 60 Hz |
| Typical power consumption | 4 W |
| Ethernet | 2 x RJ45, 10/100 Mbps, up to 100 m |
| WLAN | AP+STA, 802.11 b/g/n, 2.412-2.484 GHz |
| RS485 | 3 ports, 9600 / 19200 / 115200 bps, up to 200 m |
| DRM | 1 x RJ45 |
| Digital signal output | 2, dry contact, up to 20 m |
| Digital signal input | 2, dry contact, up to 20 m |
| Power output | 9.5-13.2 V, 100 mA, up to 3 m |
| Current range | Direct connection up to 63 A; external CT above 63 A |
| Voltage range | Single-phase 85-277 V; three-phase 148-479 V |
| Energy accuracy | ±1 % |
| Operating temperature range | -30 ... 65 °C |
| Storage temperature range | -40 ... 85 °C |
| Relative humidity | 5-95%, non-condensing |
| Max. operating altitude | 4000 m |
| Degree of protection | IP2X |
| Compatible inverters | ESI-5-12K-T1 / HYD 5-20K-3PH, up to 6 |
| Compatible EV chargers | EV11K-AC-02, up to 2 |
| Heat pumps | SG-ready, up to 12 |
| Shelly devices | Plus Plug S, Plus 2PM, Pro 2PM, up to 20 |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
