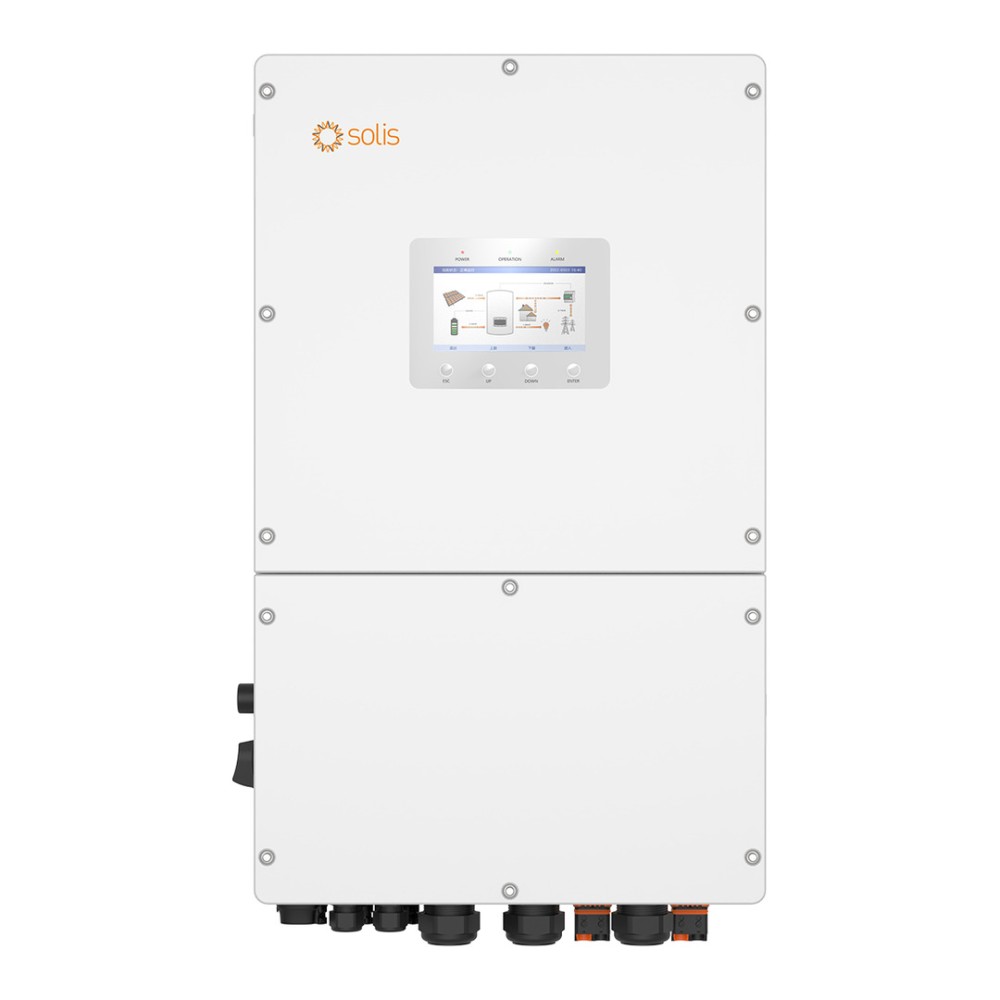

50 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P50K-H

Name: 50 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P50K-H
Brand: Solis
SKU: S6-EH3P50K-H
Price: 6451.00 EUR
Availability: InStock

6.451 € Steuern inklusive

5.376 € Ohne Steuern

S6-EH3P50K-H is a 50 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (150-800 V), with 4 MPPT (150-850 V), two battery ports, a maximum charge and discharge current of 140 A (2 x 70 A) and a maximum efficiency of 97.8%. It has IP66 protection, a 7-inch LCD and CAN, RS485 and Ethernet communication.

Referenz S6-EH3P50K-H

Ihre Rechte aus der gesetzlichen Gewährleistung

S6-EH3P50K-H - Three-phase hybrid inverter 50 kW for HV batteries

S6-EH3P50K-H is a 50 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (150-800 V), with 4 MPPT inputs, two independent battery ports and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, in grid-connected or off-grid systems.

Main features:

AC rated power: 50000 W
HV battery: 150-800 V, 2 ports, maximum 2 x 70 A
PV input: 4 MPPT, 150-850 V, maximum 96000 W
Maximum efficiency: 97.8%
Communication: CAN, RS485, Ethernet, Bluetooth
Protection and cooling: IP66, intelligent fans
Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 150-800 V range through two independent 70 A ports (total current up to 140 A), is compatible with 100-280 Ah battery modules and communicates with the battery over CAN or RS485. The maximum charge and discharge power is 55 kW (maximum 35 kW per port). The recommended PV array size is up to 100 kW, of which a maximum of 96 kW can be used, on 4 MPPT inputs with up to 2 strings each (maximum string current 20 A), with a maximum voltage of 1000 V and a start-up voltage of 180 V.

In off-grid mode it withstands 1.6 times the rated power for 2 s, and the switchover from grid to backup supply takes less than 10 ms; the backup output accepts unbalanced loads. Both DC and AC coupling are supported, with an adjustable battery reserve and intelligent load prioritisation, and the generator can be connected to a dedicated port, in a range of 20-100% of the rated power.

The system can be expanded in parallel, up to 500 kW in total (for more than 6 units the Solis STS cabinet is recommended), and remote monitoring and control are done through the SolisCloud platform. The package includes 3 current transformers (CT) and a data logging stick; the meter is optional. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 4000 m. The weight is 73 kg.

Technical specifications

Inverter type	Three-phase hybrid inverter, for high-voltage (HV) batteries
Battery type	Li-ion
Battery voltage range	150-800 V
Max. charge/discharge current	70 A x 2 (140 A parallel)
Max. charge/discharge power	55 kW
Max. charge/discharge power per port	35 kW
Number of battery ports	2
Battery communication	CAN / RS485
Recommended max. PV array size	100 kW
Max. usable PV input power	96000 W
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	150-850 V
Max. input current	4 x 40 A
Max. string current	20 A
Max. short-circuit current	4 x 60 A
MPPT number / max. number of strings	4/8
Rated output power	50000 W
Max. apparent output power	50000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	76 A / 72.2 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. AC passthrough current	152 A / 144.4 A
Rated output power (back-up)	50000 W
Max. apparent output power (back-up)	1.6 x rated power, 2 s
Back-up switch time	< 10 ms
Rated output current (back-up)	76 A / 72.2 A
THDv (linear load)	< 2%
Generator max. input power	50000 W
Generator rated input current	76 A / 72.2 A
Max. efficiency	97.8%
EU efficiency	97.4%
BAT charged by PV max. efficiency	98.5%
BAT charged/discharged to AC max. efficiency	97.5%
Integrated protections	Anti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, DC type II and AC type II surge protection, integrated AFCI 2.0 (optional)
Dimensions (W x H x D)	530 x 880 x 290 mm
Weight	73 kg
Inverter topology	Transformerless
Self-consumption (night)	< 35 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection and safety / EMC standards	G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, EN 50549-10, VDE 0126, UTE C 15, NTS 631, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
PV connection	MC4 quick connection plug
Battery connection	Terminal connector
AC connection	Terminal block
Display	7.0" LCD display & Bluetooth + APP
Communication interface	CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN

Datenblatt

Referenz: S6-EH3P50K-H
Produkttyp: Wechselrichter
Wechselrichtertyp: Hybrid (mit integriertem MPPT)
Off-Grid (ohne Netz)
Phasen: Dreiphasig
Leistungsklasse: 20+ kW
Dauerleistung (VA, 25 °C): 50000 VA
Dauerleistung (W, 25 °C): 50000 W
Spitzenleistung: 1,6 x Nennleistung, 2 s
Maximaler Wirkungsgrad: 97,8 %
Leerlaufverbrauch: unter 35 W
Batteriespannung: HV (Hochvolt)
DC-Eingangsspannungsbereich: 150-800 V
Max. Ladestrom: 140 A (2 x 70 A)
Max. PV-Eingangsspannung: 1000 V
Max. PV-Kurzschlussstrom: 4 x 60 A
Anzahl MPPT-Tracker: 4
MPPT-Spannungsbereich: 150-850 V
AC-Ausgangsspannung: 220/380 V, 230/400 V
Ausgangsfrequenz: 50/60 Hz
Max. AC-Eingangsstrom: 152 A
Parallelbetrieb: Ja
Kommunikationsschnittstellen: Bluetooth
CAN-bus
Ethernet
RS485
Schutzfunktionen: Inselbetriebserkennung, Ausgangsüberstromschutz, Kurzschlussschutz, integrierter DC-Schalter, DC-Verpolschutz, Überspannungsschutz DC Typ II und AC Typ II, integriertes AFCI 2.0 (optional)
Abmessungen (H x B x T): 880 x 530 x 290 mm
Gewicht: 73 kg
Schutzart (IP): IP66
Betriebstemperatur: -25 ... 60 °C
Max. relative Luftfeuchtigkeit: 100 %
Normen und Konformität: G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, EN 50549-10, VDE 0126, UTE C 15, NTS 631, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Kompatibilität

Batteriemodul Pylontech Force-H3 5,12 kWh, 102,4 V HV, FH10050

5,12 kWh 102,4 V mind. 2 Module + Steuereinheit

1.231 €

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
