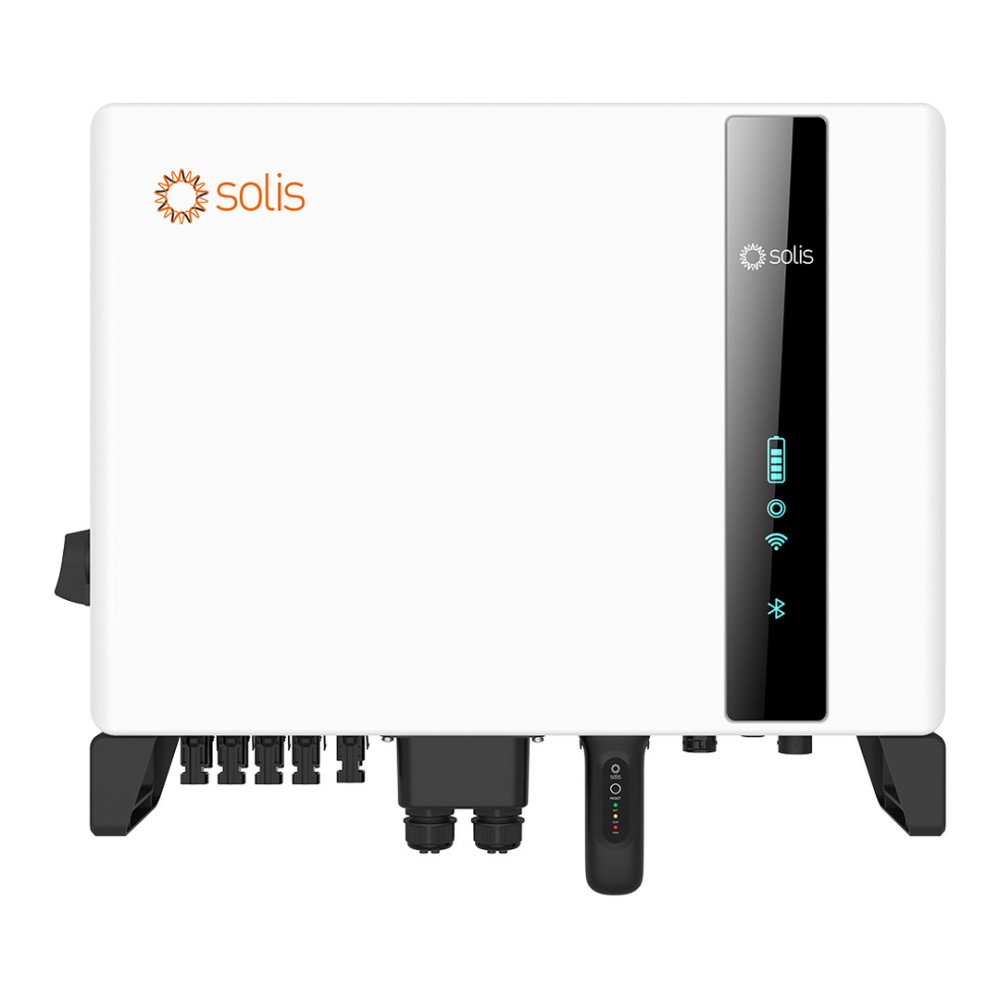

8 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P8K2-H

Name: 8 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P8K2-H
Brand: Solis
SKU: S6-EH3P8K2-H
Price: 1814.00 EUR
Availability: InStock

1.814 € Steuern inklusive

1.512 € Ohne Steuern

S6-EH3P8K2-H is a 8 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-600 V), with 2 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.5%. It has IP66 protection, natural cooling and CAN and RS485 communication, and parallel operation allows up to 6 units.

Referenz S6-EH3P8K2-H

Ihre Rechte aus der gesetzlichen Gewährleistung

S6-EH3P8K2-H - Three-phase hybrid inverter 8 kW for HV batteries

S6-EH3P8K2-H is a 8 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-600 V), with 2 MPPT inputs, no fans, and an LED indicator and app access over Bluetooth. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 8000 W
HV battery: 120-600 V, lithium-ion, max. current 50 A
PV input: 2 MPPT, 200-850 V, maximum 12800 W
Maximum efficiency: 97.5%
Communication: CAN, RS485, Bluetooth
Protection and cooling: IP66, natural cooling
Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-600 V range (battery voltages up to 700 V are supported), communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. The recommended PV array size is up to 16 kW, of which a maximum of 12800 W can be used, with one string per MPPT, a maximum input voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output (3/N/PE, 380/400 V) accepts unbalanced loads, with up to 50% of the rated power on each phase, and the maximum power on the battery input is 8 kW. The backup output withstands 1.6 times the rated power for 60 s, and the switchover from grid to backup supply takes less than 10 ms. The inverter can run on solar energy alone, without a grid, can be coupled to an existing grid-connected PV installation with export control, and a generator can be connected on the grid side.

Up to 6 units can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform, with an optional data module (Wi-Fi, cellular or LAN). The package includes an Eastron meter with 3 current transformers (CT). The IP66 enclosure, with natural cooling and noise below 46.9 dB(A), operates from -25 °C to +60 °C and at altitudes up to 4000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for high-voltage (HV) batteries
Battery type	Li-ion
Battery voltage range	120-600 V
Max. supported battery voltage	700 V
Max. charge/discharge current	50 A
Max. charge/discharge power	8 kW
Battery communication	CAN / RS485
Recommended max. PV array size	16 kW
Max. usable PV input power	12800 W
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	16 A / 16 A
Max. short-circuit current	24 A / 24 A
MPPT number / max. number of strings	2/2
Rated output power	8000 W
Max. apparent output power	8000 VA
Rated grid voltage	3/N/PE, 380 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	12.2 A / 11.5 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input voltage range (grid side)	304-437 V / 320-460 V
Max. input current (grid side)	18.2 A / 17.4 A
Frequency range	45-55 Hz / 55-65 Hz
Rated output power (back-up)	8000 W
Max. apparent output power (back-up)	1.6 x rated power, 60 s
Back-up switch time	< 10 ms
Rated output current (back-up)	12.2 A / 11.5 A
THDv (linear load)	< 2%
Max. power per phase	50% of rated power
Max. allowable phase imbalance	100%
Max. efficiency	97.5%
EU efficiency	97.41%
BAT charged by PV max. efficiency	98.22%
BAT charged/discharged to AC max. efficiency	97.50%
Integrated protections	Anti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, PV overvoltage protection, battery reverse protection, integrated AFCI 2.0 (optional)
Dimensions (W x H x D)	600 x 500 x 230 mm
Weight	30.2 kg
Inverter topology	Transformerless
Self-consumption (night)	< 25 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 46.9 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	4000 m
Grid connection and safety / EMC standards	G98, G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, VDE 0126, UTE C 15:2019, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, EK18; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
PV connection	MC4 connector
Battery connection	Quick connection plug
AC connection	Quick connection plug
Display	LED indicator & Bluetooth + APP
Communication interface	CAN, RS485, Optional: Wi-Fi, Cellular, LAN

Datenblatt

Referenz: S6-EH3P8K2-H
Produkttyp: Wechselrichter
Wechselrichtertyp: Hybrid (mit integriertem MPPT)
Off-Grid (ohne Netz)
Phasen: Dreiphasig
Leistungsklasse: 6-10 kW
Dauerleistung (VA, 25 °C): 8000 VA
Dauerleistung (W, 25 °C): 8000 W
Spitzenleistung: 1,6 x Nennleistung, 60 s
Maximaler Wirkungsgrad: 97,5 %
Leerlaufverbrauch: unter 25 W
Batteriespannung: HV (Hochvolt)
DC-Eingangsspannungsbereich: 120-600 V
Max. Ladestrom: 50 A
Max. PV-Eingangsspannung: 1000 V
Max. PV-Kurzschlussstrom: 24 A / 24 A
Anzahl MPPT-Tracker: 2
MPPT-Spannungsbereich: 200-850 V
AC-Ausgangsspannung: 380/400 V
Ausgangsfrequenz: 50/60 Hz
AC-Eingangsspannungsbereich: 304-437 V / 320-460 V
Max. AC-Eingangsstrom: 18,2 A
Parallelbetrieb: Ja
Kommunikationsschnittstellen: Bluetooth
CAN-bus
RS485
Schutzfunktionen: Inselbetriebserkennung, Ausgangsüberstromschutz, Kurzschlussschutz, integrierter DC-Schalter, DC-Verpolschutz, PV-Überspannungsschutz, Batterie-Verpolschutz, integriertes AFCI 2.0 (optional)
Abmessungen (H x B x T): 500 x 600 x 230 mm
Gewicht: 30,2 kg
Schutzart (IP): IP66
Betriebstemperatur: -25 ... 60 °C
Max. relative Luftfeuchtigkeit: 100 %
Normen und Konformität: G98, G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, VDE 0126, UTE C 15:2019, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, EK18; IEC/EN 62109-1/-2

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Kompatibilität

Batteriemodul Pylontech Force-H3 5,12 kWh, 102,4 V HV, FH10050

5,12 kWh 102,4 V mind. 2 Module + Steuereinheit

1.231 €

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
