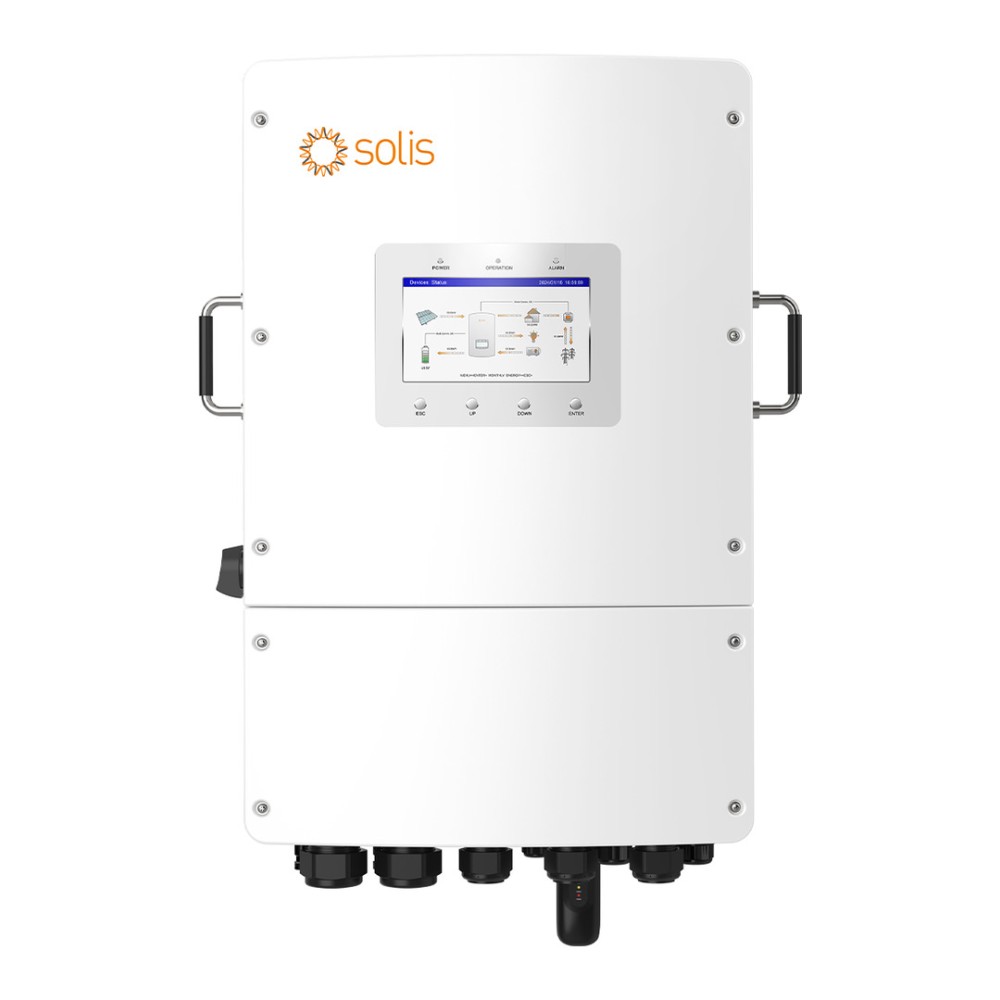

12 kW Hybrid-Wechselrichter Solis, dreiphasig, 48 V, S6-EH3P12K02-NV-YD-L

Name: 12 kW Hybrid-Wechselrichter Solis, dreiphasig, 48 V, S6-EH3P12K02-NV-YD-L
Brand: Solis
SKU: S6-EH3P12K02-NV-YD-L
Price: 2386.00 EUR
Availability: InStock

2.386 € Steuern inklusive

1.988 € Ohne Steuern

S6-EH3P12K02-NV-YD-L is a 12 kW three-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (200-850 V), two battery ports, a maximum charge and discharge current of 250 A and a maximum efficiency of 97.5%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Referenz S6-EH3P12K02-NV-YD-L

Ihre Rechte aus der gesetzlichen Gewährleistung

S6-EH3P12K02-NV-YD-L - Three-phase hybrid inverter 12 kW for low-voltage batteries

S6-EH3P12K02-NV-YD-L is a 12 kW three-phase hybrid inverter from the Solarator series, for low-voltage batteries (40-60 V range), with 2 MPPT inputs, two battery ports and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 12000 W
Battery: 40-60 V, max. current 250 A
PV input: 2 MPPT, 200-850 V, maximum 19200 W
Maximum efficiency: 97.5%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, intelligent fans
Parallel operation: Up to 6 units

The inverter works with lithium-ion or lead-acid batteries in the 40-60 V range, has two battery ports (150 A each) and one battery communication port over CAN or RS485, and is compatible with the low-voltage batteries of the brands in the manufacturer compatibility list, for example Dyness, Pylontech or Shoto. The recommended PV array size is up to 24 kW, of which a maximum of 19200 W can be used; the maximum input current on the two MPPT inputs is 20 A / 40 A, and 20 A per DC input.

The three-phase output accepts unbalanced loads, with up to 50% of the rated power on each phase (6000 W), and in off-grid mode the inverter withstands a 200% overload for 10 s, useful for starting motors, pumps and air conditioners. The switchover from grid to backup supply takes less than 10 ms. Both DC and AC coupling are supported, to expand an existing PV installation, and the Smart Load function prioritises essential loads. The three-phase generator connects to the AC Gen / Smart port, with a maximum input power of 12 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package contains 3 current transformers (CT) and a Wi-Fi stick for data transmission; the meter is optional. The inverter has IP66 protection, operates from -25 °C to +60 °C and can be installed up to an altitude of 4000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for low-voltage (LV) batteries
Battery type	Li-ion / lead-acid
Battery voltage range	40-60 V
Max. charge/discharge current	250 A
Number of battery ports / BMS ports	2 / 1
Max. charge/discharge current per port	150 A
Battery communication	CAN / RS485
Recommended max. PV array size	24 kW
Max. usable PV input power	19200 W
Max. input voltage	1000 V
Rated voltage	550 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	20 A / 40 A
Max. current per DC input	20 A
Max. short-circuit current	30 A / 50 A
MPPT number / max. number of strings	2/3
Rated output power	12000 W
Max. apparent output power	12000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	18.2 A / 17.3 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	18 kW
Input voltage range (grid side)	323-437 V / 340-460 V
Max. input current (grid side)	27.3 A / 26.0 A
Rated output power (back-up)	12000 W
Max. apparent output power (back-up)	2 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	18.2 A / 17.3 A
Max. AC passthrough current	50 A
THDv (linear load)	< 3%
Generator max. input power	12 kW
Generator rated input current	18.2 A / 17.3 A
Max. power per phase	50% of rated power
Max. efficiency	97.5%
EU efficiency	97.0%
BAT charged by PV / AC max. efficiency	95.0% / 94.4%
Battery discharged efficiency	94.5%
Integrated protections	DC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, integrated AFCI 2.0 (optional), anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	430 x 660 x 305 mm
Weight	42 kg
Inverter topology	Non-isolated (PV), isolated (battery)
Self-consumption	< 30 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection and safety / EMC standards	EN 50549-1/-10, VDE 4105 & VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
PV connection	MC4 quick connection plug
Battery connection	Screw terminal
AC connection	Screw terminal
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x4; Optional: 2G/3G/4G

Datenblatt

Referenz: S6-EH3P12K02-NV-YD-L
Produkttyp: Wechselrichter
Wechselrichtertyp: Hybrid (mit integriertem MPPT)
Off-Grid (ohne Netz)
Phasen: Dreiphasig
Leistungsklasse: 10-20 kW
Dauerleistung (VA, 25 °C): 12000 VA
Dauerleistung (W, 25 °C): 12000 W
Spitzenleistung: 2 x Nennleistung, 10 s
Maximaler Wirkungsgrad: 97,5 %
Batteriespannung: 48 V
DC-Eingangsspannungsbereich: 40-60 V
Max. Ladestrom: 250 A
Max. PV-Eingangsspannung: 1000 V
Max. PV-Kurzschlussstrom: 30 A / 50 A
Anzahl MPPT-Tracker: 2
MPPT-Spannungsbereich: 200-850 V
AC-Ausgangsspannung: 220/380 V, 230/400 V
Ausgangsfrequenz: 50/60 Hz
AC-Eingangsspannungsbereich: 323-437 V / 340-460 V
Max. AC-Eingangsstrom: 27,3 A
Parallelbetrieb: Ja
Kommunikationsschnittstellen: Bluetooth
CAN-bus
Ethernet
RS485
WLAN
Schutzfunktionen: Überspannungsschutz DC Typ II und AC Typ II (optional), Ausgangsüberstromschutz, Isolationsüberwachung, Fehlerstromerkennung, integrierter PV-Schalter, DC-Verpolschutz, integriertes AFCI 2.0 (optional), Inselbetriebserkennung
Abmessungen (H x B x T): 660 x 430 x 305 mm
Gewicht: 42 kg
Schutzart (IP): IP66
Betriebstemperatur: -25 ... 60 °C
Max. relative Luftfeuchtigkeit: 100 %
Normen und Konformität: EN 50549-1/-10, VDE 4105 & VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Kompatibilität

Batteriespeicher Dyness 5,12 kWh, 51,2 V LiFePO4, DL5.0C

5,12 kWh 51,2 V 5× parallel

1.128 €

Preiswert

Batteriespeicher Pylontech 4,8 kWh, 48 V LiFePO4, US5000

4,8 kWh 48 V 4× parallel

1.180 €

Weitere kompatible Produkte

Dyness DL5.0C Beheizter LiFePO4-Akku - 5,12 kWh, 48 V 51,2 V 5× parallel

1.176 €
Renon Batterie Lifepo4 Xcellent Plus 16kWh 51,2V-314Ah IP65 51,2 V 2× parallel

2.874 €
Renon 16 kWh Batterie Lifepo4 Xcellent Plus-H 51,2V-314Ah IP65 Mit Heizung 51,2 V 2× parallel

2.897 €
Batteriespeicher Pylontech Fidus Plus 16,08 kWh, 51,2 V LiFePO4, mit Heizung, FB-L-16-Pro 51,2 V 2× parallel

2.633 €

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
