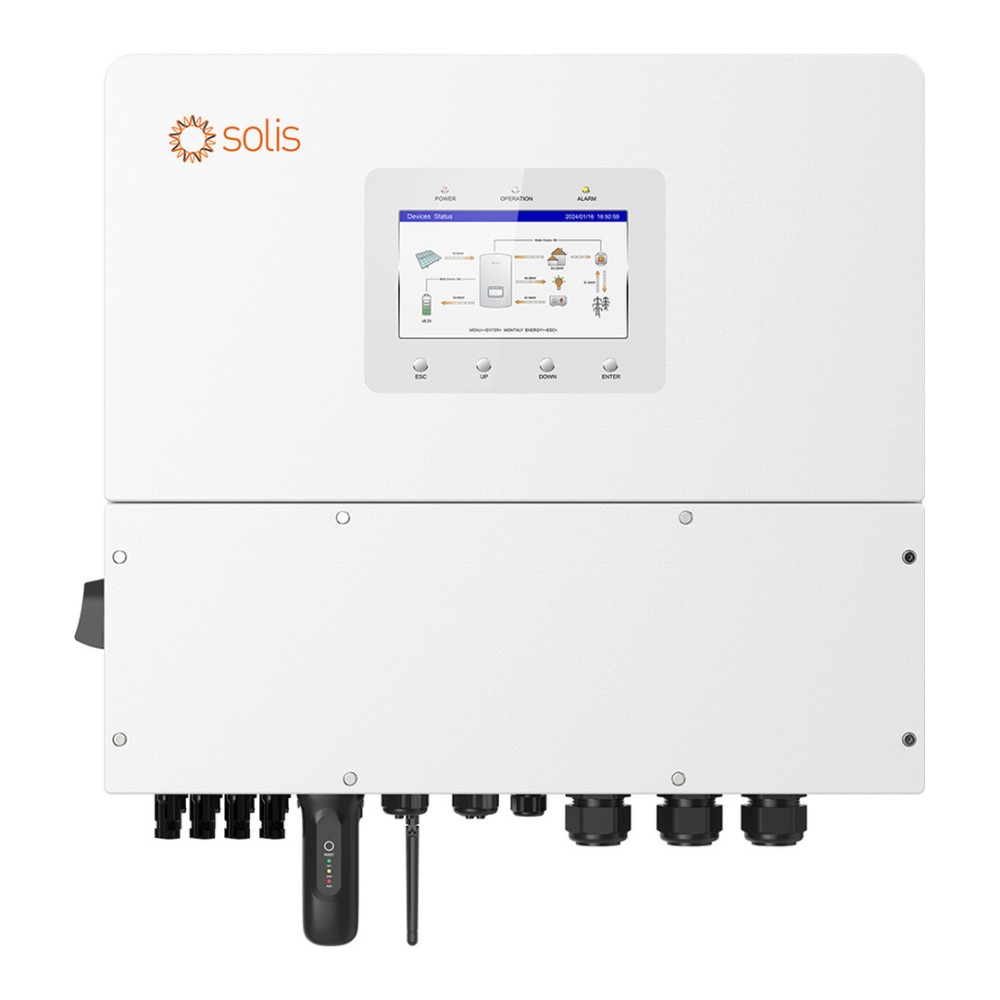

20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H
  • 20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H
  • 20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H
  • 20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H
  • 20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H

20 kW Hybrid-Wechselrichter Solis, dreiphasig, HV, S6-EH3P20K-H

2.790 € Steuern inklusive

2.325 € Ohne Steuern

S6-EH3P20K-H is a 20 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.7%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Referenz S6-EH3P20K-H

Ihre Rechte aus der gesetzlichen Gewährleistung

Gesetzliche Gewährleistung

Harmonisierte EU-Mitteilung über die gesetzliche Gewährleistung

Weitere Informationen: europa.eu/youreurope/garantien
Mitteilung in voller Größe öffnen

S6-EH3P20K-H - Three-phase hybrid inverter 20 kW for HV batteries

S6-EH3P20K-H is a 20 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT inputs, a 7-inch LCD and Bluetooth app configuration. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

  • AC rated power: 20000 W
  • HV battery: 120-800 V, lithium-ion, max. current 50 A
  • PV input: 4 MPPT, 200-850 V, maximum 32000 W
  • Maximum efficiency: 97.7%
  • Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
  • Protection and cooling: IP66, redundant fans
  • Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-800 V range, with a single battery port, communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. The recommended PV array size is up to 40 kW, of which a maximum of 32000 W can be used, on 4 MPPT inputs with one string each (20 A maximum and 30 A short-circuit current per input), with a maximum voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output accepts unbalanced loads, with up to 40% of the rated power on each phase, and the switchover from grid to backup supply takes less than 10 ms. In off-grid mode the backup output withstands 1.6 times the rated power for 10 s. The inverter can be AC-coupled to an existing PV installation, and a generator connects to the dedicated port, with a maximum input power of 20 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package includes an Eastron meter with 3 current transformers (CT) and a data logging stick. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 2000 m.

Technical specifications

Inverter typeThree-phase hybrid inverter, for high-voltage (HV) batteries
Battery typeLi-ion
Battery voltage range120-800 V
Max. charge/discharge current50 A
Number of battery ports / BMS ports1 / 1
Battery communicationCAN / RS485
Recommended max. PV array size40 kW
Max. usable PV input power32000 W
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage160 V
MPPT voltage range200-850 V
Max. input current4 x 20 A
Max. current per DC input20 A
Max. short-circuit current4 x 30 A
MPPT number / max. number of strings4/4
Rated output power20000 W
Max. apparent output power20000 VA
Rated grid voltage3/N/PE, 220/380 V, 230/400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current30.4 A / 28.9 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Max. input power (grid side)30 kW
Input voltage range (grid side)304-437 V / 320-460 V
Max. input current (grid side)45.6 A / 43.3 A
Rated output power (back-up)20000 W
Max. apparent output power (back-up)1.6 x rated power, 10 s
Back-up switch time< 10 ms
Rated output current (back-up)30.4 A / 28.9 A
Max. AC passthrough current45.6 A / 43.3 A
THDv (linear load)< 3%
Generator max. input power20 kW
Generator rated input current30.4 A / 28.9 A
Max. power per phase40% of rated power
Max. efficiency97.7%
EU efficiency97.5%
BAT charged by PV max. efficiency98.5%
BAT charged/discharged to AC max. efficiency97.2%
Integrated protectionsDC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, anti-islanding protection
Protection class / Over voltage categoryI / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)563 x 546 x 250 mm
Weight35.2 kg
Inverter topologyTransformerless
Self-consumption< 25 W
Operating temperature range-25 ... +60 °C
Relative humidity0-100%
Ingress protectionIP66
Noise emission (typical)< 65 dB(A)
Cooling conceptIntelligent redundant fan-cooling
Max. operation altitude2000 m
Grid connection and safety / EMC standardsEN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
PV connectionMC4 connector
Battery connectionLever terminal
AC connectionOT terminal
Display7.0" LCD display & Bluetooth + APP
Communication interfaceStandard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x3

Datenblatt

Referenz
S6-EH3P20K-H
Produkttyp
Wechselrichter
Wechselrichtertyp
Hybrid (mit integriertem MPPT)
Off-Grid (ohne Netz)
Phasen
Dreiphasig
Leistungsklasse
10-20 kW
Dauerleistung (VA, 25 °C)
20000 VA
Dauerleistung (W, 25 °C)
20000 W
Spitzenleistung
1,6 x Nennleistung, 10 s
Maximaler Wirkungsgrad
97,7 %
Leerlaufverbrauch
unter 25 W
Batteriespannung
HV (Hochvolt)
DC-Eingangsspannungsbereich
120-800 V
Max. Ladestrom
50 A
Max. PV-Eingangsspannung
1000 V
Max. PV-Kurzschlussstrom
4 x 30 A
Anzahl MPPT-Tracker
4
MPPT-Spannungsbereich
200-850 V
AC-Ausgangsspannung
220/380 V, 230/400 V
Ausgangsfrequenz
50/60 Hz
AC-Eingangsspannungsbereich
304-437 V / 320-460 V
Max. AC-Eingangsstrom
45,6 A
Parallelbetrieb
Ja
Kommunikationsschnittstellen
Bluetooth
CAN-bus
Ethernet
RS485
WLAN
Schutzfunktionen
Überspannungsschutz DC Typ II und AC Typ II (optional), Ausgangsüberstromschutz, Isolationsüberwachung, Fehlerstromerkennung, integrierter PV-Schalter, DC-Verpolschutz, Inselbetriebserkennung
Abmessungen (H x B x T)
546 x 563 x 250 mm
Gewicht
35,2 kg
Schutzart (IP)
IP66
Betriebstemperatur
-25 ... 60 °C
Max. relative Luftfeuchtigkeit
100 %
Normen und Konformität
EN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Kompatibilität

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
