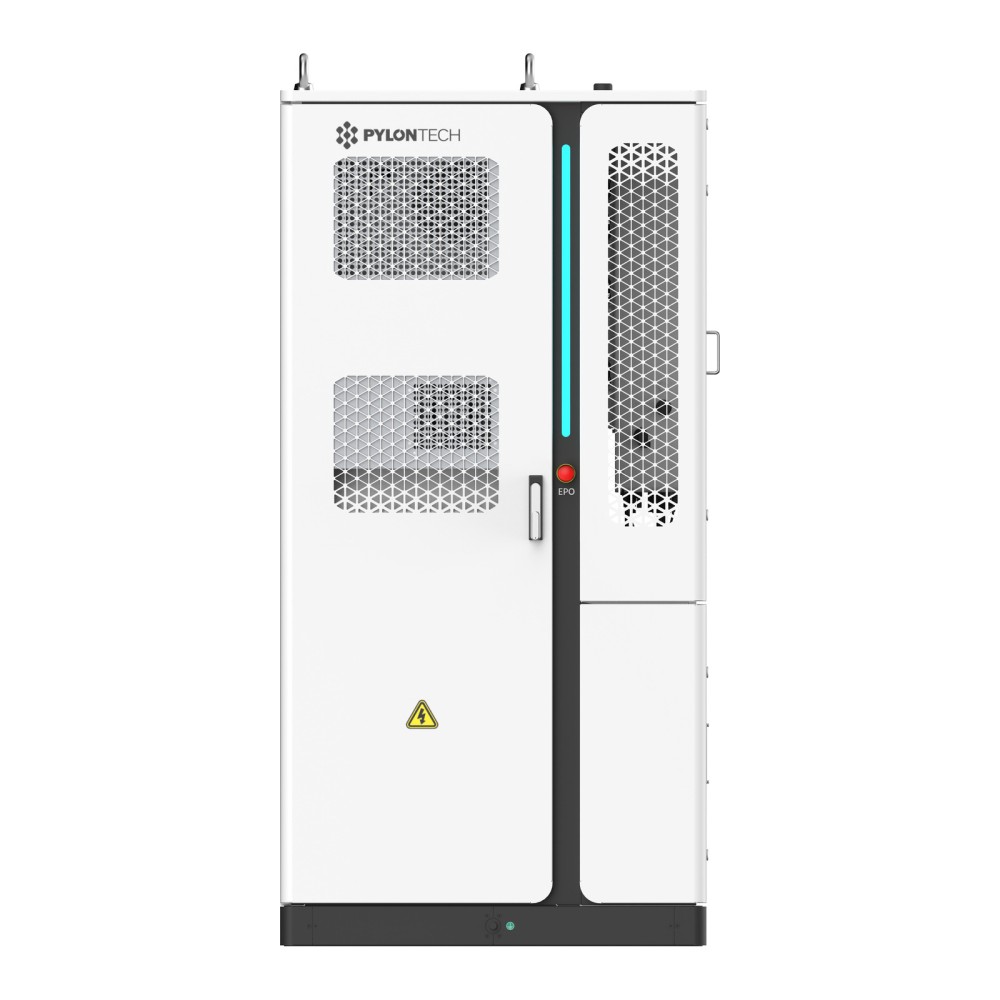

A100-HY-PLUS 60 kW / 126 kWh is a Pylontech OPTIM US hybrid storage cabinet with 126 kWh of LFP batteries and an integrated 60 kW inverter, with 4 MPPT (maximum input power 100 kW), a three-phase 380/400 V output, IP55 protection and air cooling. At system level it can be extended up to 126-756 kWh and 60-360 kW.
A100-HY-PLUS 60 kW / 126 kWh is a hybrid energy storage system from the Pylontech OPTIM US series, built as a cabinet for commercial and industrial applications. In one enclosure it combines 6 lithium iron phosphate (LFP) battery modules with a nominal energy of 126 kWh, a 60 kW hybrid inverter and 4 MPPT inputs for photovoltaic panels.
The cabinet integrates the battery, the hybrid inverter and an aerosol fire extinguishing system. The maximum battery operation current is 160 A, the maximum DC input current of the inverter is 100 x 2 A, the maximum AC output current is 80 A and the overload capacity is 110 % for 30 s. Switching between grid and off-grid operation takes less than 20 ms.
The datasheet lists these operating functions for the system: peak shaving, energy shifting, self-consumption and backup with seamless switching. The working temperature range is -25 to 50 °C and the anti-corrosion class is C3H.
| Battery type | LFP (lithium iron phosphate) |
|---|---|
| Battery module quantity | 6 |
| Nominal energy | 126 kWh |
| DC voltage range | 302.4-388.8 V |
| Maximum operation current | 160 A |
| Battery cooling | Forced air |
| Rated AC power | 60 kW |
| Rated AC output voltage | 380/400 V c.a., 3W+N+PE |
| Rated AC output frequency | 50/60 Hz |
| Maximum AC output current | 80 A |
| Maximum DC input current | 100 x 2 A |
| Power factor | -0.8 ... 0.8 |
| Overload capacity | 110 % for 30 s |
| On/off-grid switching | <20 ms |
| Number of MPPT | 4 |
| Maximum DC input power | 100 kW |
| MPPT voltage range | 150-950 V |
| MPPT starting voltage | 125 V |
| Maximum DC input current per string | 8 x 20 A |
| Working temperature range | -25 ... 50 °C |
| Protection class | IP55 |
| Altitude | 3000 m |
| Humidity | 0-95 % RH |
| Fire extinguishing | Aerosol |
| Certification | IEC 62619, IEC 62477-1, IEC 63056, VDE 2510-50, ISO 13849-1, IEC 62040-1, CE-LVD, IEC 61000, IEC 62933, UL 9540A (partial application in progress) |
| Anti-corrosion | C3H |
| Certification | IEC 62619, IEC 62477-1, IEC 63056, VDE 2510-50, ISO 13849-1, IEC 62040-1, CE-LVD, IEC 61000, IEC 62933, UL 9540A (partial) |
| Dimension (W x D x H) | 1050 x 1300 x 2100 mm |
| Weight | 1620 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
