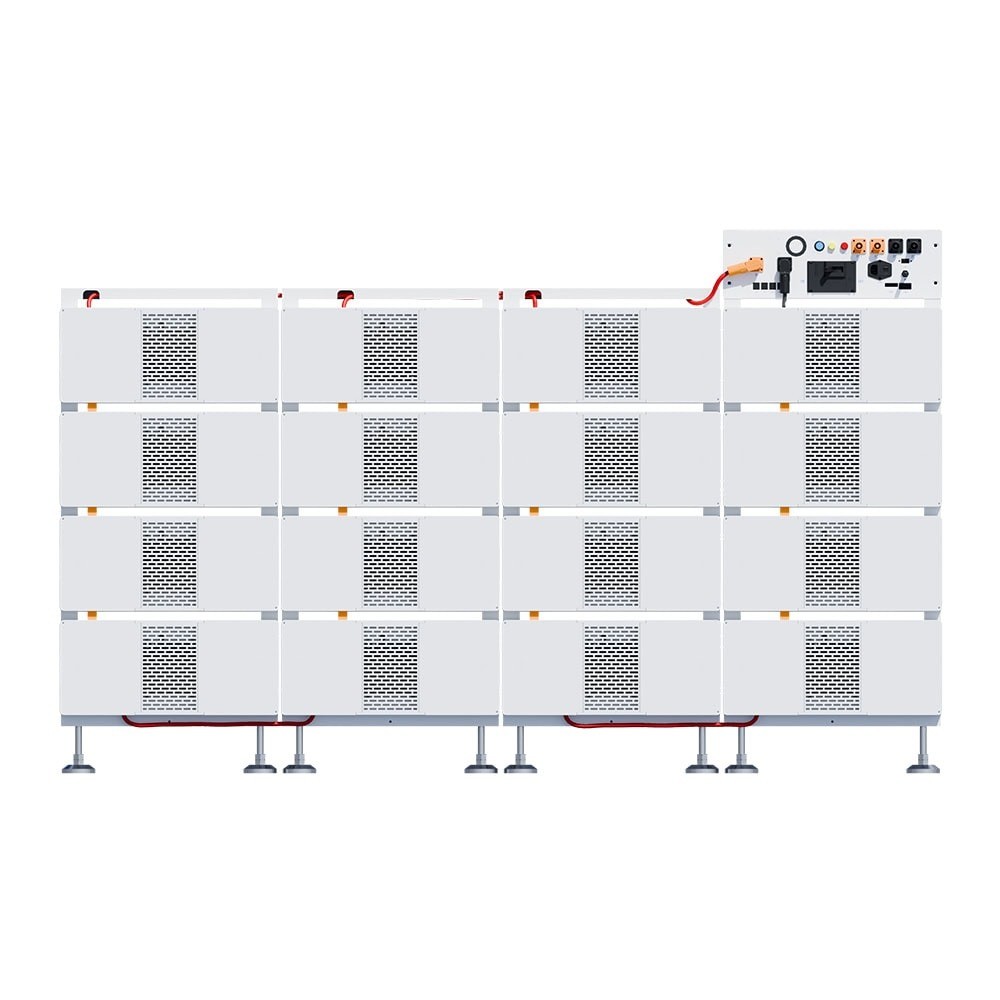

Energiespeichersystem Deye 128,6 kWh, HV, BOS-B128 Pro-A3

Name: Energiespeichersystem Deye 128,6 kWh, HV, BOS-B128 Pro-A3
Brand: Deye
SKU: BOS-B128-Pro-A3
Price: 27295.00 EUR
Availability: InStock

409,6 V

27.295 € Steuern inklusive

22.746 € Ohne Steuern

BOS-B128 Pro-A3 is a high-voltage LiFePO4 storage system with 8 BOS-B-Pack16-A3 modules and the BOS-B-PDU-2-A control unit, rack mounted. Energy 128.6 kWh (115.74 kWh usable), nominal voltage 409.6 V, maximum charge and discharge current 180 A. For commercial and industrial applications.

Referenz BOS-B128-Pro-A3

Ihre Rechte aus der gesetzlichen Gewährleistung

BOS-B128 Pro-A3 - LiFePO4 storage system 128.6 kWh, high voltage

BOS-B128 Pro-A3 is a LiFePO4 battery energy storage system for commercial and industrial applications, made up of 8 BOS-B-Pack16-A3 modules of 16.08 kWh each, rack mounted and managed by the BOS-B-PDU-2-A control unit. It provides 128.6 kWh (115.74 kWh usable at the recommended depth of discharge of 90 %) at a nominal voltage of 409.6 V.

Main features:

System energy: 128.6 kWh
Usable energy: 115.74 kWh (90 % depth)
Nominal voltage: 409.6 V
Maximum current: 180 A charge/discharge
Chemistry: LiFePO4
Cycle life: over 6000 cycles
Communication: TCP, RS485, CAN

Each BOS-B-Pack16-A3 module has a capacity of 314 Ah, a nominal voltage of 51.2 V and an energy of 16.08 kWh. The modules are connected in series; the system supports an operating voltage range of 332.8-467.2 V and a maximum DC power of 73.728 kW.

Cycle life exceeds 6000 cycles (at 25±2 °C, 0.5C/0.5C, down to 70 % of capacity), at a recommended depth of discharge of 90 %. Charging is possible from 0 to 55 °C and discharging from -20 to 55 °C. The system communicates over TCP, RS485 and CAN, has an SOC / fault code display and smart fan cooling. The 8-module system suits hybrid inverters (5-16 modules); a PCS requires 14-16 modules for grid-connected applications and 15-16 for off-grid.

The system has an IP20 protection rating, is installed in a rack and operates up to an altitude of 3000 m. Certifications: CE, IEC 62619, IEC 62040, UN38.3.

Technical specifications

Product type	Battery
Battery chemistry	LiFePO4 (lithium iron phosphate)
Battery voltage	HV (high voltage)
Capacity class	20+ kWh
Nominal energy	128,6 kWh
Nominal voltage (exact)	409,6 V
Nominal capacity	314 Ah
Built-in BMS	Yes
Max. charge current	180 A
Max. continuous discharge current	180 A
Communication interfaces	RS485, CAN-bus
Ingress protection (IP)	IP20
Operating temperature	charge 0 ... 55 °C, discharge -20 ... 55 °C
Max. relative humidity	85 %
Standards and compliance	CE / IEC 62619 / IEC 62040 / UN38.3
Dimensions (H x W x D)	1305 x 1067 x 800 mm
Weight	1136 kg

Datenblatt

Referenz: BOS-B128-Pro-A3
MPN: BOS-B128-Pro-A3
Produkttyp: Batterie
Batterietechnologie: LiFePO4 (Lithium-Eisenphosphat)
Batteriespannung: HV (Hochvolt)
Nennspannung (genauer Wert): 409,6 V
Nennkapazität: 314 Ah
Kapazitätsklasse: 20+ kWh
Nennenergie: 128,6 kWh
Max. Dauerentladestrom: 180 A
Integriertes BMS: Ja
Max. Ladestrom: 180 A
Kommunikationsschnittstellen: CAN-bus
RS485
Abmessungen (H x B x T): 1305 x 1067 x 800 mm
Gewicht: 1136 kg
Schutzart (IP): IP20
Betriebstemperatur: Laden 0 ... 55 °C, Entladen -20 ... 55 °C
Max. relative Luftfeuchtigkeit: 85 %
Normen und Konformität: CE / IEC 62619 / IEC 62040 / UN38.3

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Broschüre (EN)
Herunterladen (2.96MB)

Kompatibilität

30 kW Hybrid-Wechselrichter Deye, dreiphasig, HV, SUN-30K-SG02HP3-EU-AM3

Hochvolt (HV) · dreiphasig

3.425 €

Weitere kompatible Produkte

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
