1.080 € Ohne Steuern

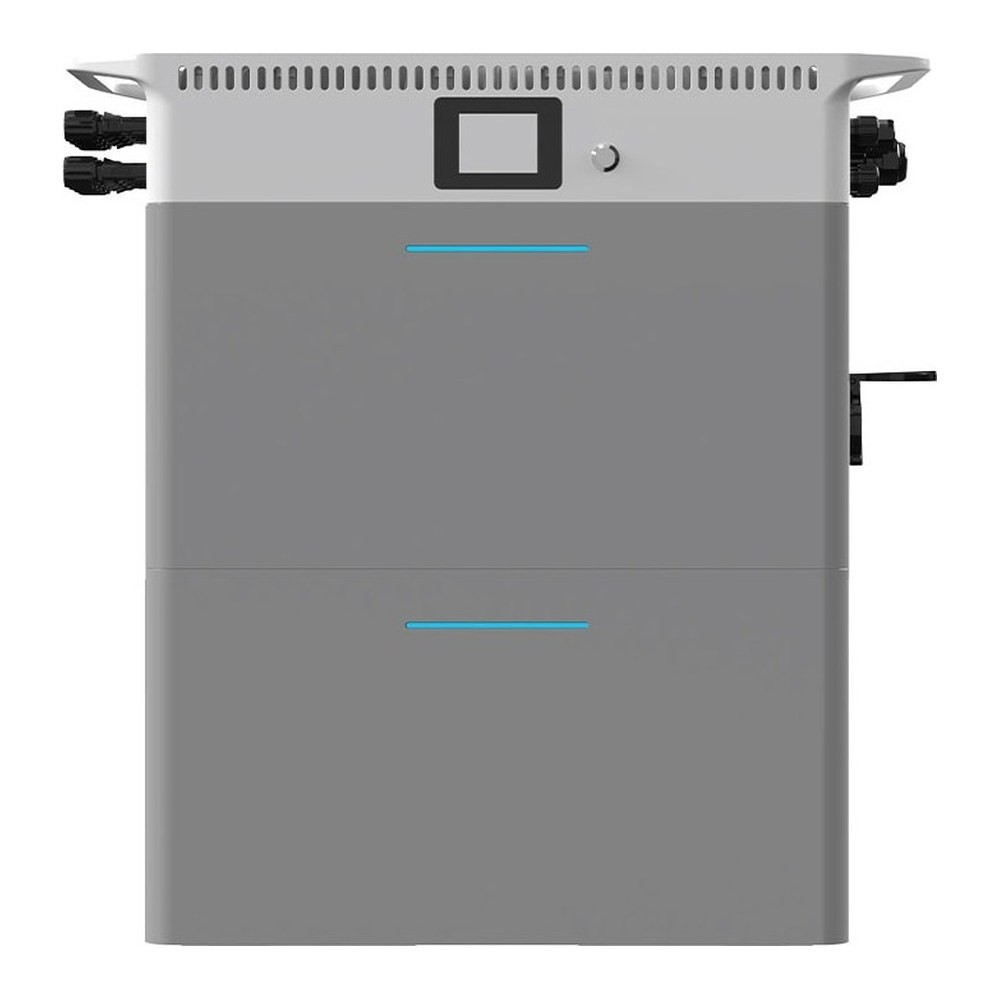

Deye SUN-BK250 is a micro hybrid energy storage system with a 2.5 kW micro-inverter (2750 W maximum) and a 2.56 kWh LiFePO4 battery in a single unit. It has 4 MPPT, a maximum efficiency of 96.5 %, IP65 ingress protection and Wi-Fi, Bluetooth and LoRa communication, with a 4 ms grid/off-grid switchover.
Deye SUN-BK250 is a micro hybrid energy storage system that combines a 2.5 kW hybrid micro-inverter and a 2.56 kWh LiFePO4 battery in a single unit. It works grid-connected, off-grid or AC-coupled to an existing balcony PV installation, and installs simply on a standard socket.
The system can operate in three modes: hybrid grid-tied, for self-consumption; off-grid, as a portable power source; and AC-coupled, to turn a balcony PV installation into a system with storage. It offers a wireless zero-export function, 6 programmable charge and discharge time slots and intelligent load control through a smart plug, smart switch or smart EV charger.
The battery can be expanded with up to 5 stacked Deye AE-F2.56 modules and up to 8 stacks (40 modules), and up to 3 units can be connected in parallel (7.5 kW). The operating temperature is -10 ... 55 °C, with derating above 45 °C, or -20 ... 55 °C with optional heating. The Deye Cloud app provides remote monitoring and control, and Bluetooth allows local control.
| Product type | Hybrid (micro) inverter with integrated LiFePO4 battery |
|---|---|
| Battery chemistry | LiFePO4 (lithium iron phosphate) |
| Nominal energy | 2560 Wh |
| Capacity class | 2.5-6 kWh |
| Operating voltage range | 44.8-57.6 V |
| Max. battery charge / discharge current | 50 A |
| Rated AC output power | 2500 W |
| Max. AC power (input / output) | 2750 W |
| Peak power (off-grid) | twice the rated power, for 10 s |
| Rated AC current (input / output) | 11.4 A / 10.9 A |
| Max. AC current (input / output) | 12.5 A / 12 A |
| Max. continuous AC passthrough current | 30 A |
| AC voltage and frequency | 220 / 230 V, 50 Hz (45 ... 55 Hz) or 60 Hz (55 ... 65 Hz), L + N + PE |
| Power factor range | 0.8 leading ... 0.8 lagging |
| DC injection current | < 0.5 % of rated current |
| Max. efficiency | 96.5 % |
| European efficiency | 96.0 % |
| MPPT efficiency | > 99 % |
| Number of MPPT | 4 (one string per MPPT) |
| Max. PV input power | 4400 W (-18L variant) or 5760 W (-32L variant) |
| Max. PV input current per MPPT | 18 A (-18L) or 32 A (-32L) |
| Max. PV short-circuit current per MPPT | 27 A (-18L) or 48 A (-32L) |
| Rated PV voltage | 42.5 V |
| Start-up voltage | 25 V |
| MPPT voltage range | 20-55 V |
| Parallel connection | up to 3 units (up to 7.5 kW rated output) |
| Communication interfaces | Wi-Fi, Bluetooth, LoRa |
| Protections | DC reverse polarity protection, AC output overcurrent, overvoltage and short-circuit protection, thermal protection, insulation impedance detection, anti-islanding protection |
| Surge protection | type II (DC) and type II (AC) |
| Ingress protection (IP) | IP65 |
| Operating temperature | -10 ... 55 °C, derating above 45 °C (-20 ... 55 °C with optional heating) |
| Max. relative humidity | 95 % (non-condensing) |
| Max. operating altitude | 2000 m |
| Standards and compliance | VDE 4105, IEC 61727/62116, VDE 0126, AS 4777.2, CEI 0-21, EN 50549-1, G98, C10-11, UNE 217002 |
| Dimensions (height x width x depth) | 326 x 526 x 210 mm |
| Weight | 32 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
