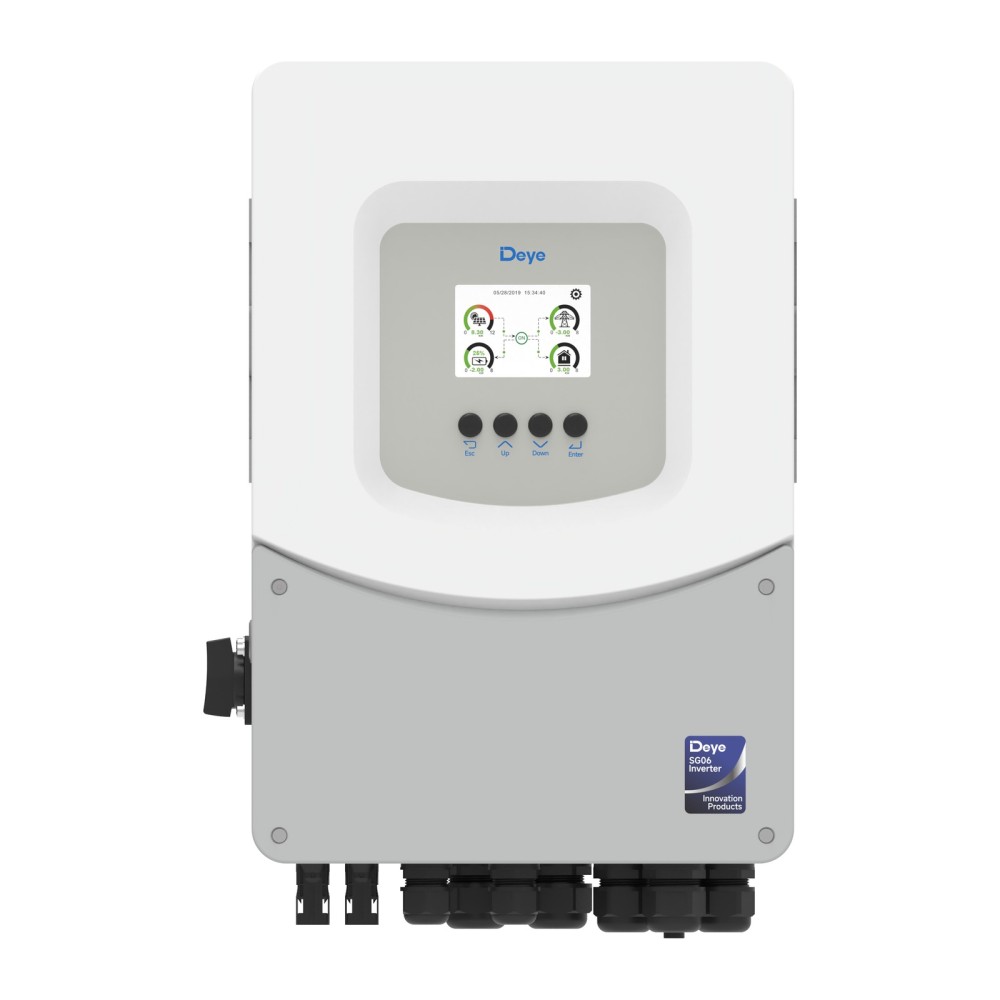

6 kW Hybrid-Wechselrichter Deye, einphasig, 48 V, SUN-6K-SG06LP1-EU-BM2

Name: 6 kW Hybrid-Wechselrichter Deye, einphasig, 48 V, SUN-6K-SG06LP1-EU-BM2
Brand: Deye
SKU: SUN-6K-SG06LP1-EU-BM2
Price: 954.00 EUR
Availability: InStock

954 € Steuern inklusive

795 € Ohne Steuern

SUN-6K-SG06LP1-EU-BM2 is a 6 kW single-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (150-425 V), a maximum charge current of 135 A and a maximum efficiency of 97.6%. It has a colour LCD, IP65 protection and Wi-Fi, RS485 and CAN communication; parallel operation allows up to 16 units.

Referenz SUN-6K-SG06LP1-EU-BM2

Ihre Rechte aus der gesetzlichen Gewährleistung

SUN-6K-SG06LP1-EU-BM2 - Single-phase hybrid inverter 6 kW for low-voltage batteries

SUN-6K-SG06LP1-EU-BM2 is a 6 kW single-phase hybrid inverter for low-voltage batteries (40-60 V range), with 2 MPPT and a colour touch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 16 units, in on-grid and off-grid systems.

Main features:

AC rated power: 6000 W
Battery: 40-60 V, max. charge current 135 A
PV input: 2 MPPT, 150-425 V, maximum 9600 W
Maximum efficiency: 97.6%
Communication: Wi-Fi, RS485, CAN
Protection and cooling: IP65, natural cooling
Parallel operation: Up to 16 units

The inverter works with lead-acid or lithium-ion batteries and adapts automatically to the BMS of a lithium battery. It offers 6 programmable time periods for charging and discharging the battery and can store energy from a diesel generator.

It can be AC-coupled to an existing solar installation to retrofit it; in off-grid mode the peak power is twice the rated power, for 10 s. Up to 16 units can be connected in parallel, together with several batteries in parallel.

The integrated protections include DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection; AFCI is optional.

Technical specifications

Inverter type	Single-phase hybrid inverter
Battery type	Lead-acid or lithium-ion
Battery voltage range	40-60 V
Max. charging/discharging current	135 A
Charging strategy for lithium-ion batteries	Self-adaptation to the BMS
Number of battery inputs	1
Max. PV access power	12000 W
Max. PV input power	9600 W
Max. PV input voltage	500 V
Start-up voltage	125 V
MPPT voltage range	150-425 V
Rated PV input voltage	370 V
Max. operating PV input current	18+18 A
Max. input short-circuit current	27+27 A
Number of MPP trackers (strings per tracker)	2 (1+1)
Rated AC active power	6000 W
Max. AC apparent power	6600 VA
Rated AC current (input/output)	27.3/26.1 A
Max. AC current (input/output)	30/28.7 A
Max. continuous AC passthrough (grid to load)	50 A
Peak power (off-grid)	2 x rated power, 10 s
Power factor range	0.8 leading to 0.8 lagging
Rated AC voltage	220/230 V, 0.85 Un-1.1 Un, L+N+PE
Rated frequency and range	50/45-55 Hz, 60/55-65 Hz
Total current harmonic distortion THDi	<3% of nominal power
DC injection current	<0.5% of In
Max. efficiency	97.6%
Euro efficiency	96.5%
MPPT efficiency	>99%
Integrated protections	DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Surge protection level	Type II (DC), Type II (AC)
Display	LCD
Communication interfaces	Wi-Fi, RS485, CAN
Operating temperature range	-40 ... 60 °C, derating above 45 °C
Permissible ambient humidity	0-100%
Permissible altitude	3000 m
Noise	<45 dB
Ingress protection (IP) rating	IP65
Inverter topology	Non-isolated (solar), isolated (battery)
Overvoltage category	OVC II (DC), OVC III (AC)
Parallel operation	Yes, up to 16 units
Dimensions (height x width x depth)	460 x 310 x 218 mm
Weight	15.6 kg
Type of cooling	Natural cooling
Grid regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety and EMC standards	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Datenblatt

Referenz: SUN-6K-SG06LP1-EU-BM2
MPN: SUN-6K-SG06LP1-EU-BM2
Produkttyp: Wechselrichter
Wechselrichtertyp: Hybrid (mit integriertem MPPT)
Phasen: Einphasig
Leistungsklasse: 3,5-6 kW
Dauerleistung (W, 25 °C): 6000 W
Spitzenleistung: 2 x Nennleistung, 10 s
Maximaler Wirkungsgrad: 97,6 %
Batteriespannung: 48 V
DC-Eingangsspannungsbereich: 40-60 V
Max. Ladestrom: 135 A
Max. PV-Eingangsspannung: 500 V
Anzahl MPPT-Tracker: 2
MPPT-Spannungsbereich: 150-425 V
AC-Ausgangsspannung: 220/230 V
Ausgangsfrequenz: 50/60 Hz
Max. AC-Eingangsstrom: 30 A
Parallelbetrieb: Ja
Kommunikationsschnittstellen: CAN-bus
RS485
WLAN
Schutzfunktionen: Verpolungsschutz DC, Überstrom-, Kurzschluss- und Überspannungsschutz am AC-Ausgang, Übertemperaturschutz, DC-Anteilüberwachung, Inselbetriebserkennung, Isolations- und Fehlerstromüberwachung, optional AFCI
Abmessungen (H x B x T): 460 x 310 x 218 mm
Gewicht: 15,6 kg
Schutzart (IP): IP65
Betriebstemperatur: -40 ... 60 °C
Max. relative Luftfeuchtigkeit: 100 %
Normen und Konformität: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
