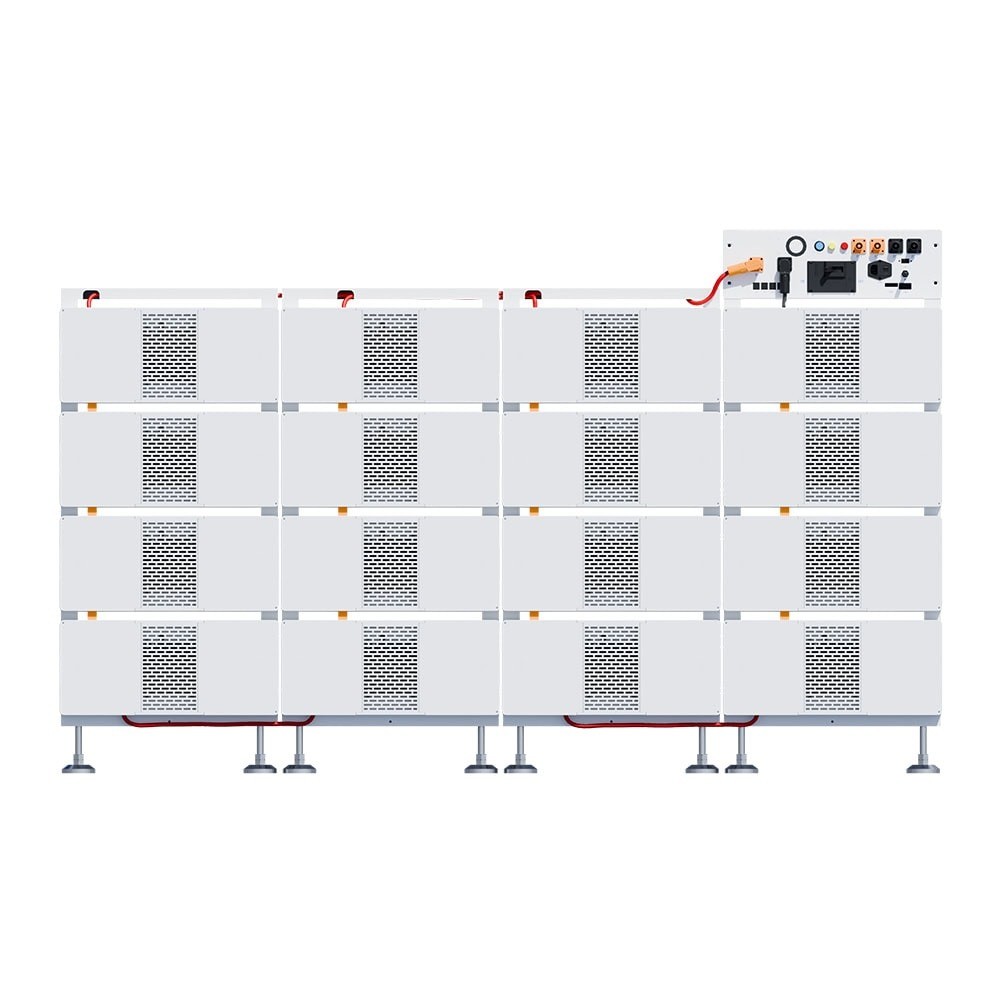

Energiespeichersystem Deye 257,2 kWh, HV, BOS-B256 Pro-A3

Name: Energiespeichersystem Deye 257,2 kWh, HV, BOS-B256 Pro-A3
Brand: Deye
SKU: BOS-B256-Pro-A3
Price: 45684.00 EUR
Availability: InStock

819,2 V

45.684 € Steuern inklusive

38.070 € Ohne Steuern

BOS-B256 Pro-A3 is a high-voltage LiFePO4 storage system with 16 BOS-B-Pack16-A3 modules and the BOS-B-PDU-2-A control unit, rack mounted. Energy 257.2 kWh (231.48 kWh usable), nominal voltage 819.2 V, maximum charge and discharge current 180 A. For commercial and industrial applications.

Referenz BOS-B256-Pro-A3

Ihre Rechte aus der gesetzlichen Gewährleistung

BOS-B256 Pro-A3 - LiFePO4 storage system 257.2 kWh, high voltage

BOS-B256 Pro-A3 is a LiFePO4 battery energy storage system for commercial and industrial applications, made up of 16 BOS-B-Pack16-A3 modules of 16.08 kWh each, rack mounted and managed by the BOS-B-PDU-2-A control unit. It provides 257.2 kWh (231.48 kWh usable at the recommended depth of discharge of 90 %) at a nominal voltage of 819.2 V.

Main features:

System energy: 257.2 kWh
Usable energy: 231.48 kWh (90 % depth)
Nominal voltage: 819.2 V
Maximum current: 180 A charge/discharge
Chemistry: LiFePO4
Cycle life: over 6000 cycles
Communication: TCP, RS485, CAN

Each BOS-B-Pack16-A3 module has a capacity of 314 Ah, a nominal voltage of 51.2 V and an energy of 16.08 kWh. The modules are connected in series; the system supports an operating voltage range of 665.6-934.4 V and a maximum DC power of 147.456 kW.

Cycle life exceeds 6000 cycles (at 25±2 °C, 0.5C/0.5C, down to 70 % of capacity), at a recommended depth of discharge of 90 %. Charging is possible from 0 to 55 °C and discharging from -20 to 55 °C. The system communicates over TCP, RS485 and CAN, has an SOC / fault code display and smart fan cooling. The 16-module system suits hybrid inverters (5-16 modules) as well as a PCS (14-16 modules for grid-connected applications, 15-16 for off-grid).

The system has an IP20 protection rating, is installed in a rack and operates up to an altitude of 3000 m. Certifications: CE, IEC 62619, IEC 62040, UN38.3.

Technical specifications

Product type	Battery
Battery chemistry	LiFePO4 (lithium iron phosphate)
Battery voltage	HV (high voltage)
Capacity class	20+ kWh
Nominal energy	257,2 kWh
Nominal voltage (exact)	819,2 V
Nominal capacity	314 Ah
Built-in BMS	Yes
Max. charge current	180 A
Max. continuous discharge current	180 A
Communication interfaces	RS485, CAN-bus
Ingress protection (IP)	IP20
Operating temperature	charge 0 ... 55 °C, discharge -20 ... 55 °C
Max. relative humidity	85 %
Standards and compliance	CE / IEC 62619 / IEC 62040 / UN38.3
Dimensions (H x W x D)	1305 x 2150 x 800 mm
Weight	2240 kg

Datenblatt

Referenz: BOS-B256-Pro-A3
MPN: BOS-B256-Pro-A3
Produkttyp: Batterie
Batterietechnologie: LiFePO4 (Lithium-Eisenphosphat)
Batteriespannung: HV (Hochvolt)
Nennspannung (genauer Wert): 819,2 V
Nennkapazität: 314 Ah
Kapazitätsklasse: 20+ kWh
Nennenergie: 257,2 kWh
Max. Dauerentladestrom: 180 A
Integriertes BMS: Ja
Max. Ladestrom: 180 A
Kommunikationsschnittstellen: CAN-bus
RS485
Abmessungen (H x B x T): 1305 x 2150 x 800 mm
Gewicht: 2240 kg
Schutzart (IP): IP20
Betriebstemperatur: Laden 0 ... 55 °C, Entladen -20 ... 55 °C
Max. relative Luftfeuchtigkeit: 85 %
Normen und Konformität: CE / IEC 62619 / IEC 62040 / UN38.3

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.

Broschüre (EN)
Herunterladen (2.96MB)

Kompatibilität

80 kW Hybrid-Wechselrichter Deye, dreiphasig, HV, SUN-80K-SG02HP3-EU-EM6

Hochvolt (HV) · dreiphasig

7.394 €

Preiswert

125 kW PCS-Wechselrichter Deye, dreiphasig, HV, SUN-125K-PCS01HP3

Hochvolt (HV) · dreiphasig

6.156 €

Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
