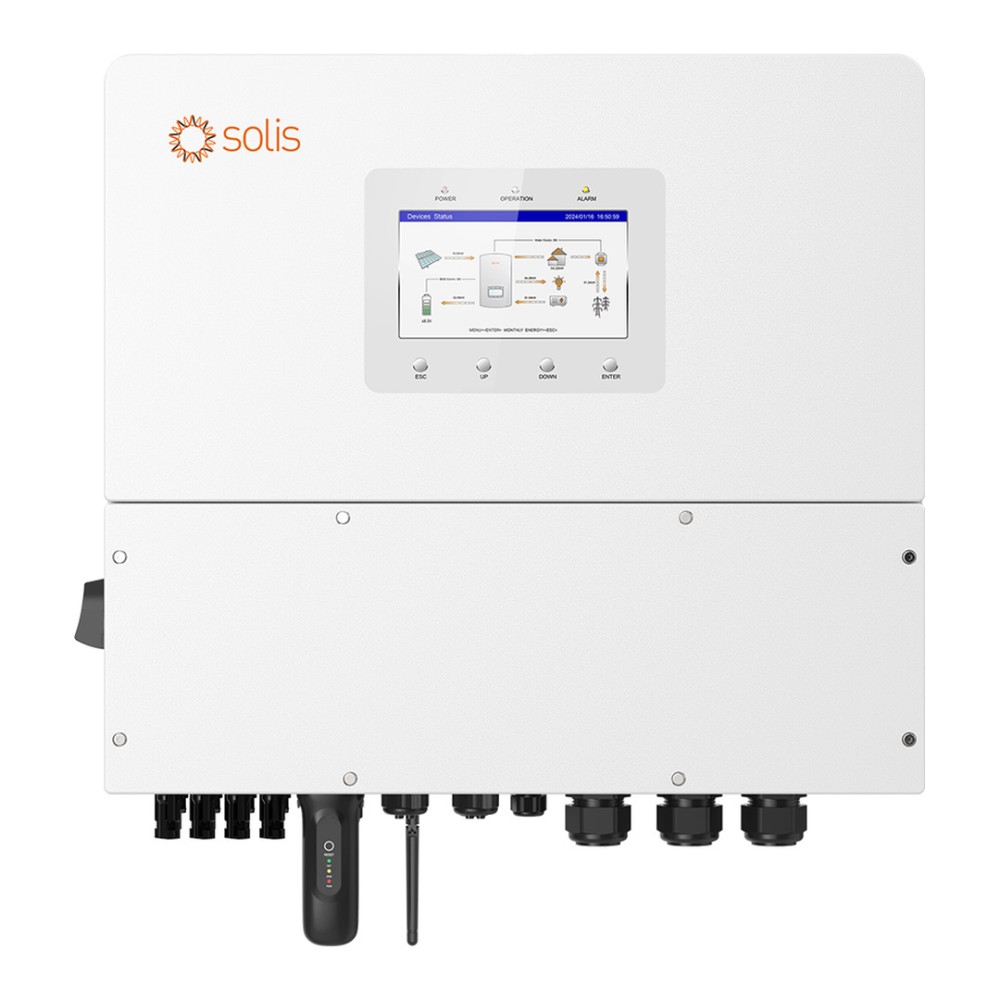

15 kW inversor híbrido Solis, trifásico, HV, S6-EH3P15K-H

Name: 15 kW inversor híbrido Solis, trifásico, HV, S6-EH3P15K-H
Brand: Solis
SKU: S6-EH3P15K-H
Price: 2322.00 EUR
Availability: InStock

2.322 € Impuesto incluido

1.935 € Sin impuestos

S6-EH3P15K-H is a 15 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.7%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Referencia S6-EH3P15K-H

Sus derechos de garantía legal

S6-EH3P15K-H - Three-phase hybrid inverter 15 kW for HV batteries

S6-EH3P15K-H is a 15 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT inputs, a 7-inch LCD and Bluetooth app configuration. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 15000 W
HV battery: 120-800 V, lithium-ion, max. current 50 A
PV input: 4 MPPT, 200-850 V, maximum 24000 W
Maximum efficiency: 97.7%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, redundant fans
Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-800 V range, with a single battery port, communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. The recommended PV array size is up to 30 kW, of which a maximum of 24000 W can be used, on 4 MPPT inputs with one string each (20 A maximum and 30 A short-circuit current per input), with a maximum voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output accepts unbalanced loads, with up to 40% of the rated power on each phase, and the switchover from grid to backup supply takes less than 10 ms. In off-grid mode the backup output withstands 1.6 times the rated power for 10 s. The inverter can be AC-coupled to an existing PV installation, and a generator connects to the dedicated port, with a maximum input power of 15 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package includes an Eastron meter with 3 current transformers (CT) and a data logging stick. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 2000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for high-voltage (HV) batteries
Battery type	Li-ion
Battery voltage range	120-800 V
Max. charge/discharge current	50 A
Number of battery ports / BMS ports	1 / 1
Battery communication	CAN / RS485
Recommended max. PV array size	30 kW
Max. usable PV input power	24000 W
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	4 x 20 A
Max. current per DC input	20 A
Max. short-circuit current	4 x 30 A
MPPT number / max. number of strings	4/4
Rated output power	15000 W
Max. apparent output power	15000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	22.8 A / 21.7 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	22.5 kW
Input voltage range (grid side)	304-437 V / 320-460 V
Max. input current (grid side)	34.2 A / 32.5 A
Rated output power (back-up)	15000 W
Max. apparent output power (back-up)	1.6 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	22.8 A / 21.7 A
Max. AC passthrough current	34.2 A / 32.5 A
THDv (linear load)	< 3%
Generator max. input power	15 kW
Generator rated input current	22.8 A / 21.7 A
Max. power per phase	40% of rated power
Max. efficiency	97.7%
EU efficiency	97.5%
BAT charged by PV max. efficiency	98.5%
BAT charged/discharged to AC max. efficiency	97.2%
Integrated protections	DC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	563 x 546 x 250 mm
Weight	35.2 kg
Inverter topology	Transformerless
Self-consumption	< 25 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Intelligent redundant fan-cooling
Max. operation altitude	2000 m
Grid connection and safety / EMC standards	EN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
PV connection	MC4 connector
Battery connection	Lever terminal
AC connection	OT terminal
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x3

Ficha de datos

Referencia: S6-EH3P15K-H
Tipo de producto: Inversor
Tipo de inversor: Híbrido (MPPT integrado)
Off-grid (sin red)
Fases: Trifásico
Clase de potencia: 10-20 kW
Potencia continua de salida (VA, 25 °C): 15000 VA
Potencia continua de salida (W, 25 °C): 15000 W
Potencia pico: 1,6 x la potencia nominal, 10 s
Eficiencia máxima: 97,7 %
Consumo en vacío: menos de 25 W
Tensión de batería: HV (alta tensión)
Rango de tensión de entrada DC: 120-800 V
Corriente de carga máxima: 50 A
Tensión FV máxima de entrada: 1000 V
Corriente de cortocircuito FV máx.: 4 x 30 A
Número de MPPT: 4
Rango de tensión MPPT: 200-850 V
Tensión de salida AC: 220/380 V, 230/400 V
Frecuencia de salida: 50/60 Hz
Rango de tensión de entrada AC: 304-437 V / 320-460 V
Corriente máxima de entrada AC: 34,2 A
Funcionamiento en paralelo: Sí
Interfaces de comunicación: Bluetooth
CAN-bus
Ethernet
RS485
Wi-Fi
Protecciones: Protección contra sobretensiones DC tipo II y AC tipo II (opcional), protección contra sobrecorriente en la salida, monitorización de la resistencia de aislamiento, detección de corriente residual, interruptor PV integrado
Dimensiones (alto x ancho x fondo): 546 x 563 x 250 mm
Peso: 35,2 kg
Grado de protección (IP): IP66
Temperatura de funcionamiento: -25 ... 60 °C
Humedad relativa máxima: 100 %
Normas y conformidad: EN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
