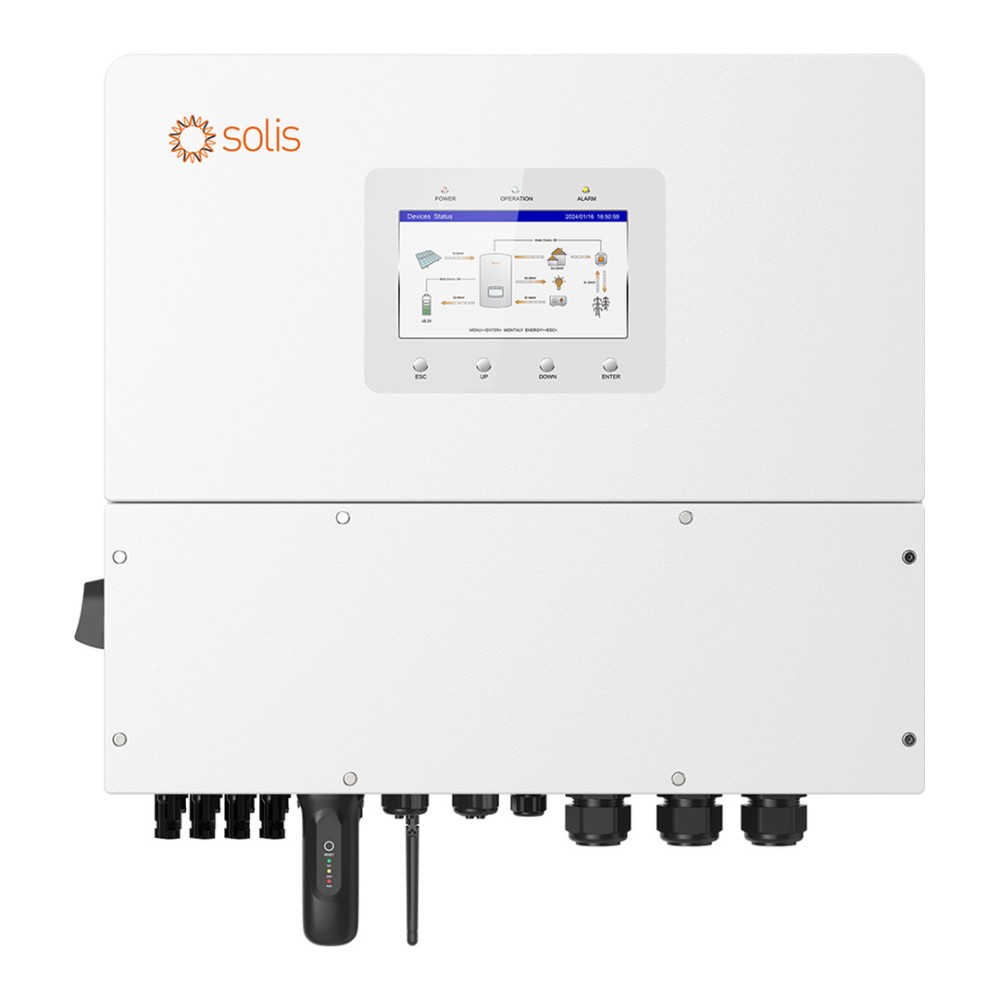

12 kW inversor híbrido Solis, trifásico, HV, S6-EH3P12K-H

Name: 12 kW inversor híbrido Solis, trifásico, HV, S6-EH3P12K-H
Brand: Solis
SKU: S6-EH3P12K-H
Price: 2209.00 EUR
Availability: InStock

2.209 € Impuesto incluido

1.841 € Sin impuestos

S6-EH3P12K-H is a 12 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.7%. It has IP66 protection, a 7-inch LCD and CAN, RS485 and Ethernet communication, and parallel operation allows up to 6 units.

Referencia S6-EH3P12K-H

Sus derechos de garantía legal

S6-EH3P12K-H - Three-phase hybrid inverter 12 kW for HV batteries

S6-EH3P12K-H is a 12 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT inputs, a 7-inch LCD and Bluetooth app configuration. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 12000 W
HV battery: 120-800 V, lithium-ion, max. current 50 A
PV input: 4 MPPT, 200-850 V, maximum 19200 W
Maximum efficiency: 97.7%
Communication: CAN, RS485, Ethernet, Bluetooth
Protection and cooling: IP66, intelligent cooling
Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-800 V range, with a single battery port, communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. Up to 19200 W of PV power can be used, on 4 MPPT inputs with one string each (20 A maximum and 30 A short-circuit current per input), with a maximum voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output accepts unbalanced loads, with up to 40% of the rated power on each phase, and the switchover from grid to backup supply takes less than 10 ms. The inverter can be AC-coupled to an existing PV installation, and a generator connects to the dedicated port, with a maximum input power of 12 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package includes an Eastron meter with 3 current transformers (CT) and a data logging stick. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 2000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for high-voltage (HV) batteries
Battery type	Li-ion
Battery voltage range	120-800 V
Max. charge/discharge current	50 A
Number of battery ports / BMS ports	1 / 1
Battery communication	CAN / RS485
Max. usable PV input power	19200 W
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	4 x 20 A
Max. short-circuit current	4 x 30 A
MPPT number / max. number of strings	4/4
Rated output power	12000 W
Max. apparent output power	12000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	18.2 A / 17.3 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	18 kW
Input voltage range (grid side)	320-460 V
Max. input current (grid side)	27.3 A / 26.0 A
Rated output power (back-up)	12000 W
Max. apparent output power (back-up)	2 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	18.2 A / 17.3 A
THDv (linear load)	< 3%
Generator max. input power	12 kW
Generator rated input current	18.2 A / 17.3 A
Max. power per phase	40% of rated power
Max. efficiency	97.7%
EU efficiency	97.5%
BAT charged by PV max. efficiency	98.5%
BAT charged/discharged to AC max. efficiency	97.2%
MPPT efficiency	99.9%
Integrated protections	Anti-islanding protection, output overcurrent protection, insulation resistance monitoring, residual current detection, short-circuit protection, integrated AFCI 2.0 (optional), integrated DC switch, DC reverse-polarity protection, PV overvoltage protection, battery reverse protection
Dimensions (W x H x D)	563 x 546 x 250 mm
Weight	35.2 kg
Inverter topology	Transformerless
Self-consumption	< 25 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Smart cooling
Max. operation altitude	2000 m
Grid connection and safety / EMC standards	EN 50549-1, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1 ED 2.1; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 61000-2
PV connection	MC4 connector
Battery connection	OT terminal
AC connection	OT terminal
Display	7.0" LCD display & Bluetooth + APP
Communication interface	CAN, RS485, Ethernet, optional: Wi-Fi, Cellular, LAN

Ficha de datos

Referencia: S6-EH3P12K-H
Tipo de producto: Inversor
Tipo de inversor: Híbrido (MPPT integrado)
Off-grid (sin red)
Fases: Trifásico
Clase de potencia: 10-20 kW
Potencia continua de salida (VA, 25 °C): 12000 VA
Potencia continua de salida (W, 25 °C): 12000 W
Eficiencia máxima: 97,7 %
Consumo en vacío: menos de 25 W
Tensión de batería: HV (alta tensión)
Rango de tensión de entrada DC: 120-800 V
Corriente de carga máxima: 50 A
Tensión FV máxima de entrada: 1000 V
Corriente de cortocircuito FV máx.: 4 x 30 A
Número de MPPT: 4
Rango de tensión MPPT: 200-850 V
Tensión de salida AC: 220/380 V, 230/400 V
Frecuencia de salida: 50/60 Hz
Rango de tensión de entrada AC: 320-460 V
Corriente máxima de entrada AC: 27,3 A
Funcionamiento en paralelo: Sí
Interfaces de comunicación: Bluetooth
CAN-bus
Ethernet
RS485
Protecciones: Protección antiisla, protección contra sobrecorriente en la salida, monitorización de la resistencia de aislamiento, detección de corriente residual, protección contra cortocircuitos, AFCI 2.0 integrado (opcional), interruptor DC integrado
Dimensiones (alto x ancho x fondo): 546 x 563 x 250 mm
Peso: 35,2 kg
Grado de protección (IP): IP66
Temperatura de funcionamiento: -25 ... 60 °C
Humedad relativa máxima: 100 %
Normas y conformidad: EN 50549-1, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1 ED 2.1; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 61000-2

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
