1.882 € Sin impuestos

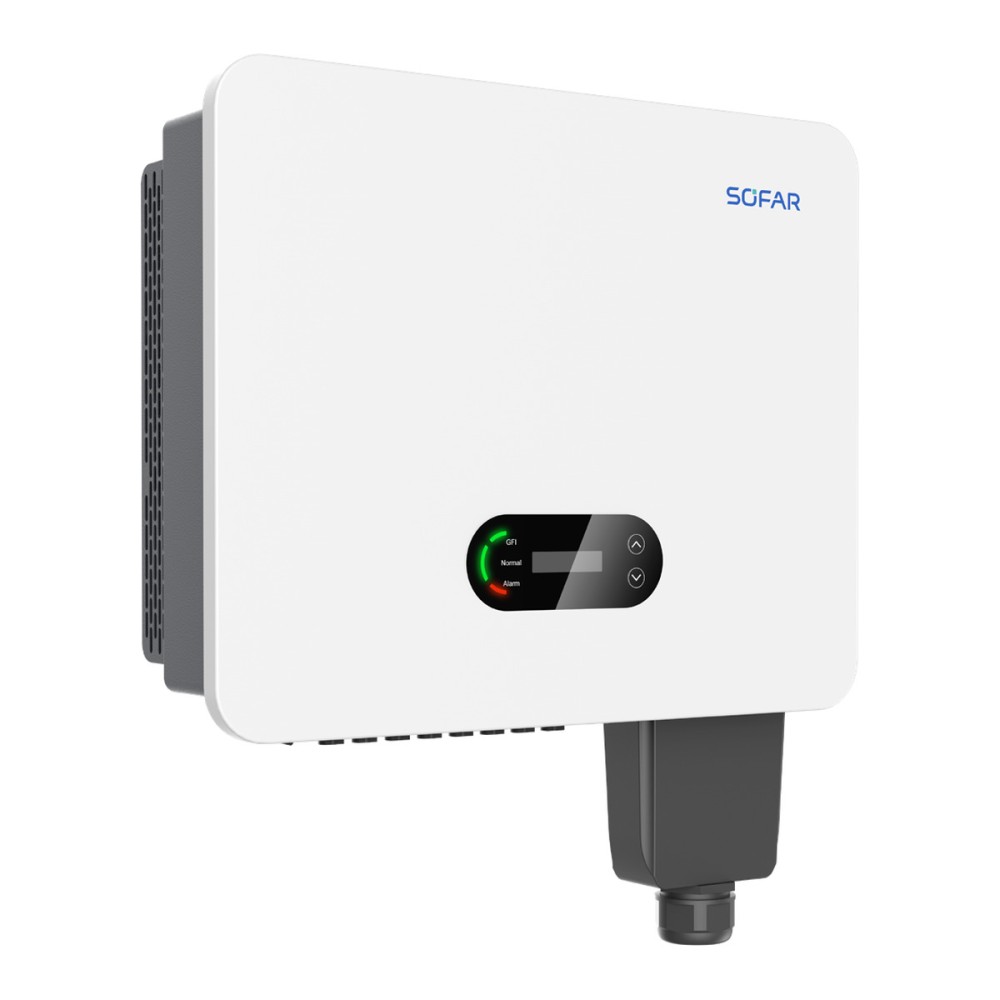

50KTLX-G3 is a SOFAR three-phase on-grid inverter rated 50 kW (maximum apparent power 55 kVA), with 4 MPPTs, a 180-1000 V MPPT range and a maximum efficiency of 98.8%. It has IP65 protection, RS485 and Wi-Fi communication, an LCD with Bluetooth and app access, and weighs 37 kg.
50KTLX-G3 is a three-phase on-grid string inverter from SOFAR with a rated power of 50 kW, 4 MPPTs and IP65 protection, designed for small industrial and commercial grid-connected PV systems.
The inverter has 8 DC inputs (2 per MPPT), a maximum input current of 40 A per MPPT and accepts DC overload of up to 150%. On the AC side it tolerates a prolonged 110% overload. It works with PV modules of 500 Wp and above, starts at a low voltage (200 V) and offers I-V curve scanning.
Protections include DC reverse polarity, anti-islanding, leakage current, ground fault, PV string fault monitoring, a DC switch and type II surge protection on DC and AC. The 50KTLX-G3 is wall mounted with the supplied bracket, and at 37 kg it takes at least two people to move. Operating temperature is -30 ... 60 °C with air cooling.
| Maximum input voltage | 1100 V |
|---|---|
| Rated input voltage | 620 V |
| Start-up voltage | 200 V |
| MPPT operating voltage range | 180-1000 V |
| Full-power MPPT voltage range | 540-850 V |
| Number of MPP trackers | 4 |
| Number of DC inputs | 2 for each MPPT |
| Maximum input current per MPPT | 4 x 40 A |
| Maximum short-circuit current per MPPT | 4 x 50 A |
| Maximum DC power for a single MPPT | 25000 W |
| Recommended maximum PV input power | 75 kWp |
| Rated output power | 50000 W |
| Maximum apparent power | 55 kVA |
| Maximum output current | 83.3 A |
| Rated output voltage | 3/N/PE, 230/400 V |
| Output voltage range | 310-480 V |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100 % |
| THDi | under 3% |
| Power factor | 0.8 leading - 0.8 lagging |
| Maximum efficiency | 98.8 % |
| European efficiency | 98.2 % |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection (SPD) | PV: type II, AC: type II |
| Ambient temperature range | -30 ... 60 °C |
| Self-consumption at night | under 3 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0-100 % |
| Maximum operating altitude | 4000 m |
| Cooling | Smart air cooling |
| Dimensions (W x H x D) | 585 x 480 x 220 mm |
| Weight | 37 kg |
| Display | LCD & Bluetooth + APP |
| Communication | RS485, Wi-Fi |
| Standards | IEC/EN 61000-6-1/2/3/4, IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2, G99, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, NRS 097-2-1, UNE 217002-2020 |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
