873 € Sin impuestos

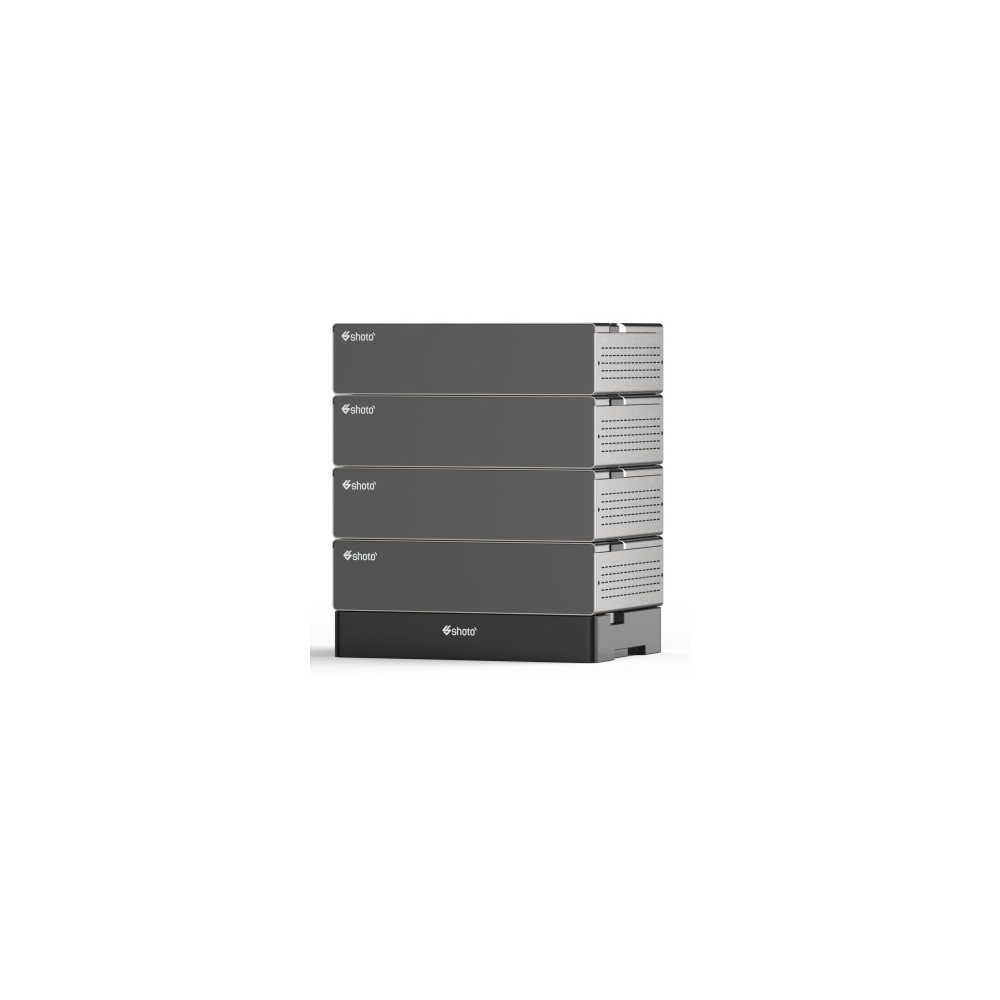

Shoto HP10-Box5 Pro is a stackable LiFePO4 battery module of 5.12 kWh (4.86 kWh available, 51.2 V, 100 Ah). It offers 5 kW output power (5.4 kW for 10 s), 50 A charge current and 100 A discharge current, CAN and RS485 communication, ingress protection IP20 and stack, wall or stand mounting.
Shoto HP10-Box5 Pro is a low-voltage LiFePO4 battery module (51.2 V, 100 Ah, 5.12 kWh) for residential energy storage, with a stackable design. It uses 100 Ah LFP prismatic cells produced by Shoto and communicates with the inverter over CAN or RS485.
The system is made of 100 Ah modules. The datasheet shows configurations of 1 to 4 modules, from 5.12 kWh to 20.48 kWh, with a maximum discharge current of 100 A for one module. The charge and discharge efficiency is at least 97 % and the design life is 15 years. The mobile app monitors the battery status over Bluetooth, and the housing is available in grey or white. Optional expansions: anti-theft protection, fire protection and an LCD display module.
The temperature range is -5 ... 50 °C for charging and -20 ... 50 °C for discharging, with a recommended temperature of 15 ... 35 °C. Cooling is natural and the permitted humidity is 5-95 % non-condensing. A single module weighs 46 kg (± 2 kg) and measures 580 x 250 x 440 mm without the base.
The manufacturer states compatibility with Deye, Growatt, GoodWe, Victron, Sofar, SMA, SRNE, LUX, Solis, TBB, Soruide, Megarevo, Sungrow, Afore, Sacolar, SMK solar and Voltronic inverters, without naming models. The Solis list of compatible batteries includes the Shoto HP10-Box family.
| Product type | Battery |
|---|---|
| Battery chemistry | LiFePO4 (lithium iron phosphate) |
| Battery voltage class | 48 V |
| Cell technology | 100 Ah LFP prismatic cells |
| Nominal voltage | 51.2 V |
| Operating voltage range | 45.0-56.4 V |
| Rated capacity | 100 Ah |
| Nominal energy | 5.12 kWh |
| Usable energy | 4.86 kWh |
| Capacity class | 2.5-6 kWh |
| Max. output power | 5 kW |
| Peak output power | 5.4 kW (10 s) |
| Max. charge current | 50 A |
| Max. discharge current | 100 A |
| Charge / discharge efficiency | at least 97 % |
| Cycle life | at least 6000 cycles (80 % DoD, 70 % EOL, 25 °C) |
| Design life | 15 years |
| Parallel connection | 1-4 modules per system (5.12-20.48 kWh) |
| Communication interfaces | CAN, RS485, Bluetooth |
| Ingress protection (IP) | IP20 |
| Charging temperature | -5 ... 50 °C |
| Discharging temperature | -20 ... 50 °C |
| Operating temperature | recommended 15 ... 35 °C |
| Relative humidity | 5-95 % non-condensing |
| Max. operating altitude | 4000 m |
| Cooling | natural |
| Installation | stack, wall or stand |
| Standards and compliance | UL1973, IEC62619, IEC62477, CE-EMC, VDE2510-50, CEI0-21, UKCA, UN38.3 |
| Dimensions (height x width x depth) | 250 x 580 x 440 mm (without base) |
| Weight | 46 kg (± 2 kg) |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
Las compatibilidades se calculan automáticamente a partir de los datos técnicos de los fabricantes y son meramente informativas. Para sistemas complejos, le recomendamos que un asesor revise la configuración antes de hacer el pedido. Detalles en los Términos y condiciones
