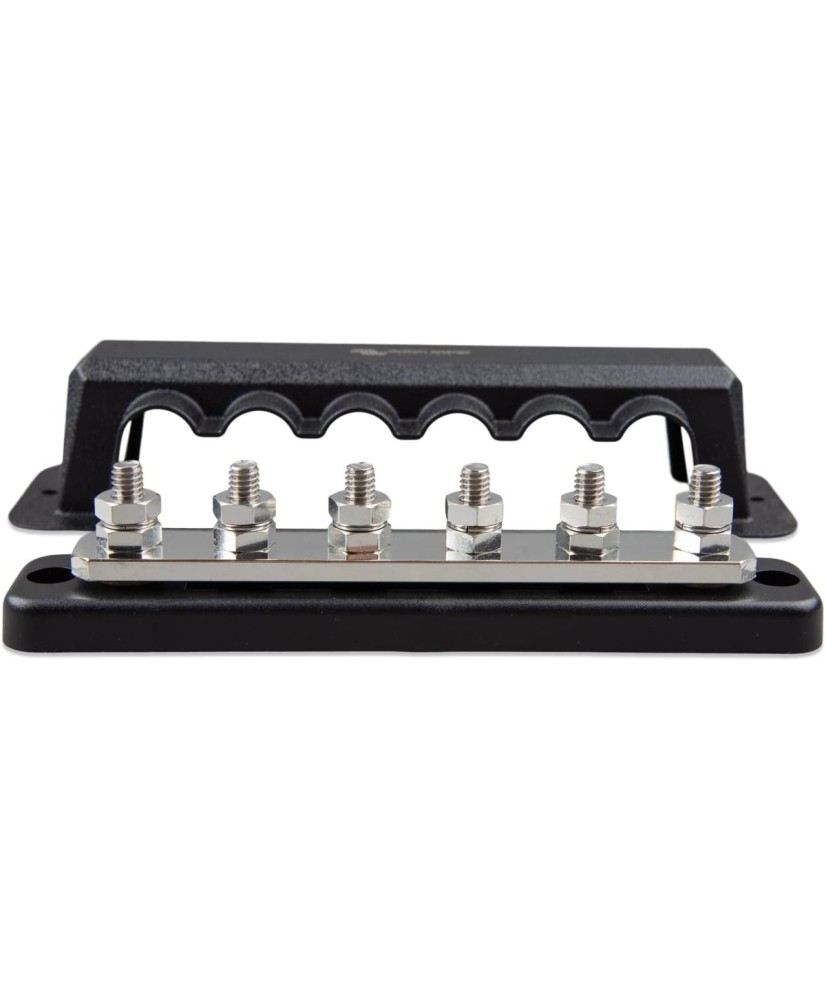

Busbar 250A 6P with Cover - DC distribution up to 70V
Busbar 250A 6P with Cover is a tin-plated copper busbar for current distribution in DC systems up to 70 V and 250 A. It has six high-current connections with 8 mm studs and a removable black cover.
Main features:
- Rating: 250 A / 70 V DC
- Connections: 6 high-current connections, 8 mm studs
- Material: tin-plated copper, ABS cover
- Tightening torque: 13 N·m
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 150A / 70A - 2P with 10 screws +cover
- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70V - 6 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
For more technical information and for the busbar dimensions see the datasheet.
Technical specifications
| Maximum current | 250 A |
|---|
| Maximum voltage | 70 V |
|---|
| Busbar material | Tin plated copper |
|---|
| Busbar dimensions | 19mm x 24mm |
|---|
| Terminal diameter | 8 mm |
|---|
| Terminal height | 17 mm |
|---|
| Terminal material | Stainless steel |
|---|
| Hex nut material | Tin plated copper |
|---|
| Base material | ABS |
|---|
| Base colour | Black (RAL 9017) |
|---|
| Base fire rating | UL 94 V-0 |
|---|
| Cover material | ABS |
|---|
| Cover colour | Black (RAL 9017) |
|---|
| Cover fire rating | UL 94 V-2 |
|---|
| Weight | 0.43 kg |
|---|
| Height | 48 mm |
|---|
| Width | 237 mm |
|---|
| Depth | 70 mm |
|---|
