Dual Terminal Stud M8 Linked Set (1 Red/1 Black) Victron Energy

Dual Terminal Stud M8 Linked Set (1 Red/1 Black) - DC connection studs 150A

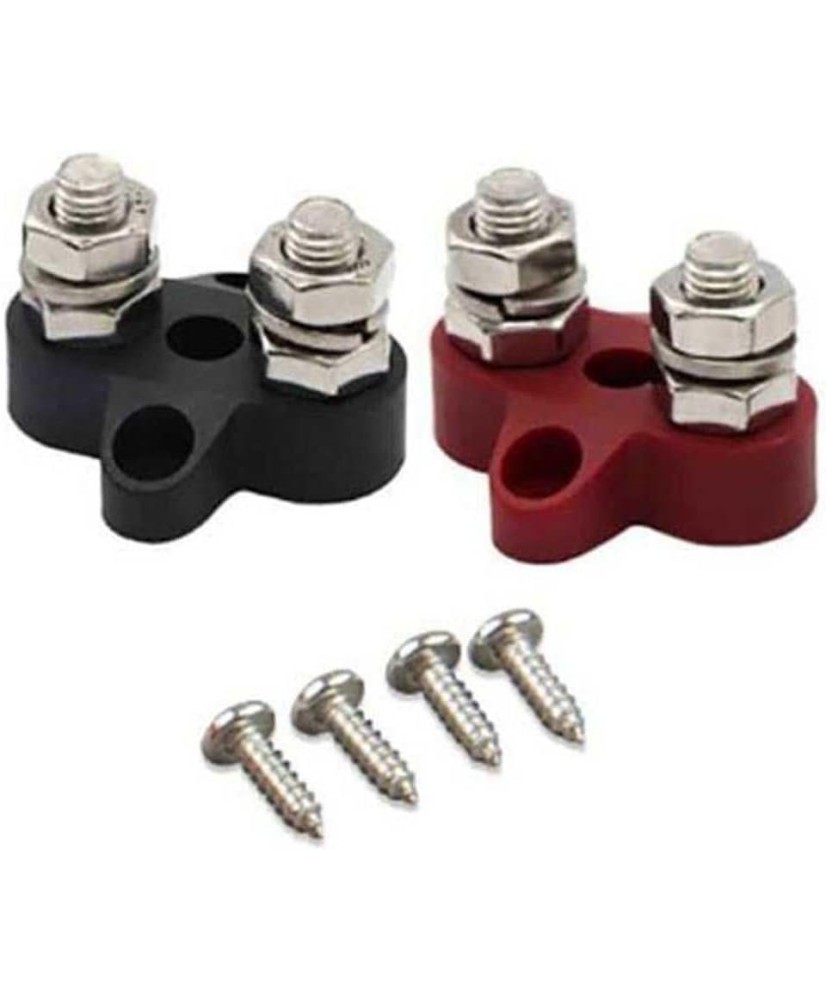

Dual Terminal Stud M8 Linked Set (1 Red/1 Black) contains two M8 dual terminal studs, one red and one black, linked with tin-plated copper, for DC connections up to 150 A and 70 V.

Main features:

• Rating: 150 A / 70 V DC
• Terminals: M8, stainless steel
• Contents: 1 red + 1 black
• Tightening torque: 10 N·m

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

• 150A / 70V - 4 high current connections
• 150A / 70V - 6 high current connections
• 150A / 70A - 2P with 10 screws +cover
• 150A / 70A - 2P with 20 screws +cover

• 250A / 70V - 4 high current connections
• 250A / 70V - 6 high current connections
• 250A / 70A - 2P with 6 screws +cover
• 250A / 70A - 2P with 12 screws +cover
• 600A / 70V - 4 high current connections and 8 low current connections
• 600A / 70V - 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.
