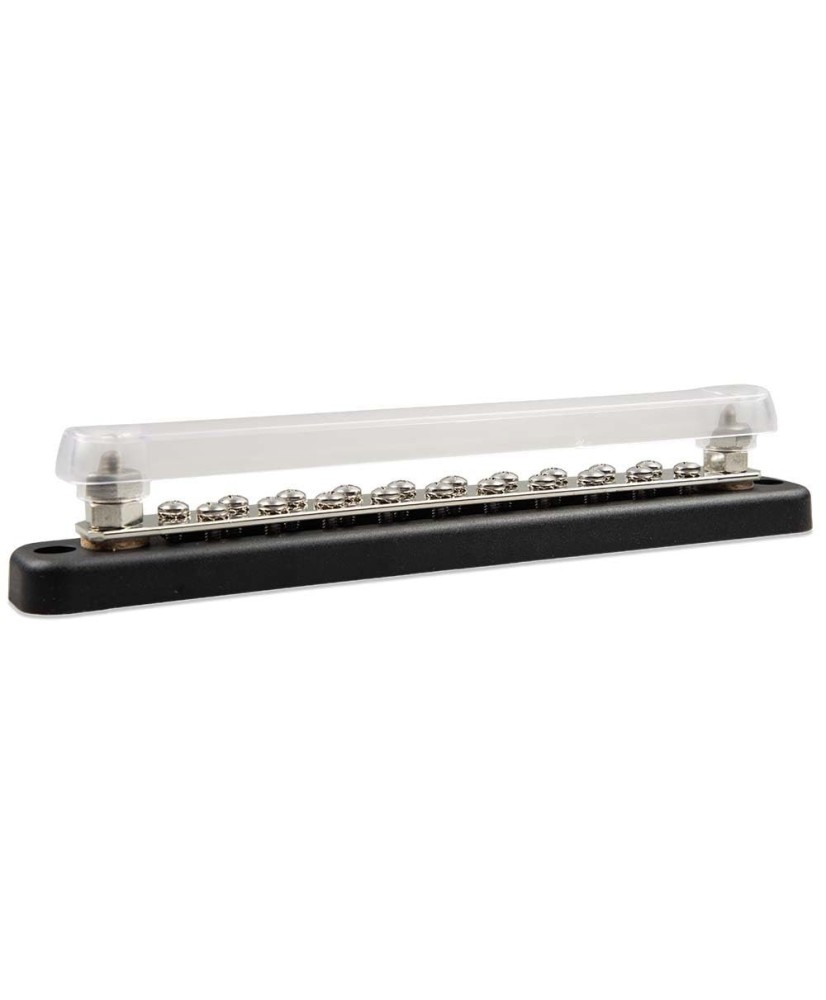

Busbar 150A 2P with 20 Screws and Cover Victron Energy

Busbar 150A 2P with 20 Screws and Cover - DC distribution up to 70V

Busbar 150A 2P with 20 Screws and Cover is a tin-plated copper busbar for current distribution in DC systems up to 70 V and 150 A. It has 20 connection screws and a removable clear cover.

Main features:

• Rating: 150 A / 70 V DC
• Connections: 2P, 20 × 4.2 mm screws, 6.35 mm studs
• Material: tin-plated copper, polycarbonate cover
• Base: flame-retardant ABS, UL 94 V-0

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

• 150A / 70V - 4 high current connections
• 150A / 70V - 6 high current connections
• 150A / 70A - 2P with 10 screws +cover
• 150A / 70A - 2P with 20 screws +cover

• 250A / 70V - 4 high current connections
• 250A / 70V - 6 high current connections
• 250A / 70A - 2P with 6 screws +cover
• 250A / 70A - 2P with 12 screws +cover
• 600A / 70V - 4 high current connections and 8 low current connections
• 600A / 70V - 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.
