A2000-OMNI is a 20 ft Pylontech storage container with a system capacity of 2069.76 kWh and two integrated 500 kW converters, 1000 kW in total, with a 400 V AC (±15 %) output, air cooling (40 kW HVAC), IP55 protection and RS485, CAN and Ethernet communication. The configurations in the datasheet range from 1207 to 2070 kWh.

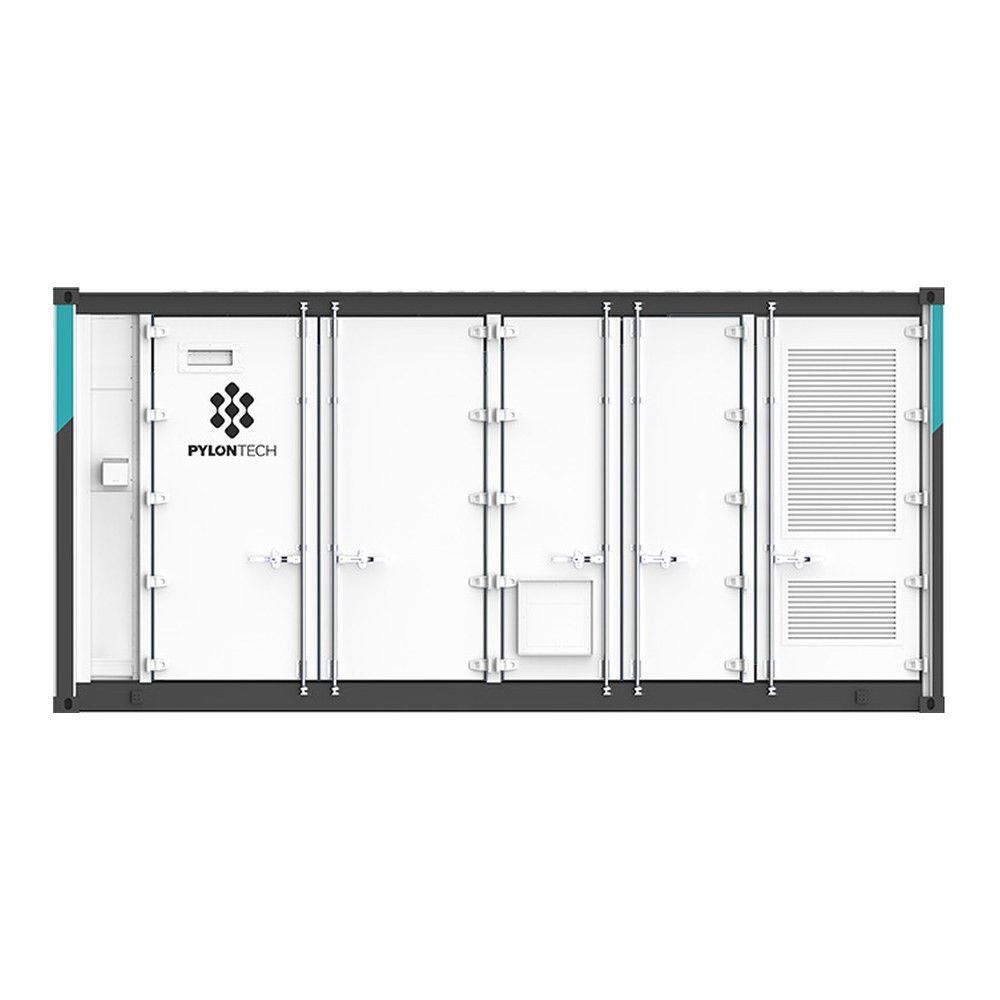

A2000-OMNI 1000 kW / 2069.76 kWh is a 20 ft energy storage container from the Pylontech range, with two integrated 500 kW power conversion systems (PCS). It has a system capacity of 2069.76 kWh with lithium iron phosphate batteries, in an all-in-one air-cooled solution.
The datasheet gives a depth of discharge of 98 % for a single string, a cycle life above 7000, an AC current of 0-720 A, an overload of 125-150 % for 200 ms, a power factor of 0.8-1 (leading or lagging) and a CEC efficiency of 97 %.
The listed functions are peak shaving, energy shifting and self-consumption. The auxiliary consumption is 30 kW, the anti-corrosion class is C3H (C5 optional) and fire extinguishing uses perfluoro agent. The dimensions are those of the container without inverter.
| System capacity | 2069.76 kWh |
|---|---|
| Depth of discharge | 98 % (single string) |
| Cycle life | >7000 |
| DC voltage range | 638-781 V (single string) |
| PCS number | 2 |
| Rated AC power | 500 kW per PCS, 1000 kW in total |
| Rated AC output voltage | 400 V ±15 % |
| Maximum AC output current | 0-720 A |
| Overload capacity | 125-150 % for 200 ms |
| Power factor | 0.8-1 (leading or lagging) |
| CEC efficiency | 97 % |
| Isolation type | Non-isolated |
| Communication | RS485, CAN, Ethernet |
| System configuration | Configurations: 1207-2070 kWh; 250-1000 kW |
| Operation logic | Peak shaving, energy shifting, self-consumption |
| Working temperature range | -20 ... 50 °C (derating below 10 °C and above 40 °C) |
| Protection class | IP55 |
| Altitude | 4000 m |
| Humidity | 5-95 % |
| Fire extinguishing | Perfluoro |
| Cooling system | Air cooling, HVAC 40 kW |
| Auxiliary power consumption | 30 kW (incl. HVAC) |
| Anti-corrosion | C3H (C5 optional) |
| Certification | UN38.3, UN 3480, IEC 62619, IEC 62040-1, CE, UKCA (EMC/RED), VDE 2510-50, UL 1973, UL 9540A, CE LVD, IEC 62477, CE EMC, IEC 61000, EN 50549-1:2019, G99, AS4777 |
| Dimension (W x D x H) | 6058 x 2438 x 2896 mm (without inverter) |
| Weight | 28000 kg |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
