44 € Sin impuestos

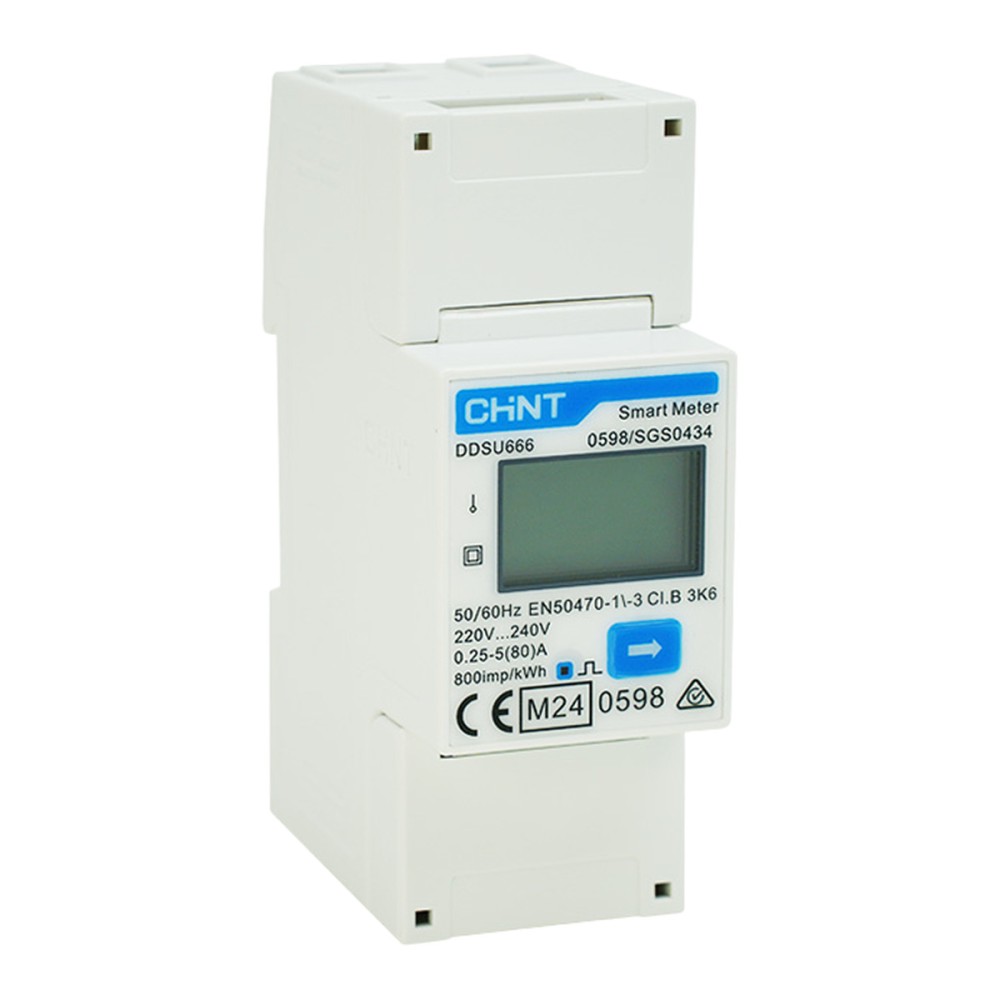

DDSU666 is a CHINT single-phase (1P2W) energy meter, with direct measurement up to 80 A. It measures active and reactive energy in both directions, has accuracy class b (1.0), a current range of 0.25-5(80) A and communicates over RS485 Modbus-RTU. It mounts on a DIN rail and is used for feed-in limitation and consumption monitoring.
DDSU666 is a CHINT single-phase (1P2W) smart energy meter for DIN-rail mounting, with direct measurement up to 80 A. It measures imported and exported active and reactive energy, communicates over RS485 Modbus-RTU and has an LCD display.
SOFAR manuals for the HYD LS1 hybrid inverters show the DDSU666 DIN-rail meter, in the version with a current transformer.
The meter is wired directly into the measured circuit, without external current transformers; the maximum current is 80 A.
The meter measures energy and power (kW, kvar, kVA), current, voltage, frequency and power factor. The RS485 baud rate can be set from 1200 to 19200 bps (default 9600 bps); it operates from -25 to 55 °C, with IP20 protection.
| Manufacturer | CHINT |
|---|---|
| Model | DDSU666 |
| Type | Smart energy meter, single-phase |
| Connection type | 1P2W |
| Measurement | direct |
| Current range | 0.25-5(80) A |
| Accuracy class | Class B (1.0) |
| Constant | 800 imp/kWh |
| Nominal voltage | 220 V ... 240 V |
| Operating range (voltage) | 0.9 Un ... 1.1 Un |
| Frequency | 50 Hz or 60 Hz |
| Communication | RS485, Modbus-RTU |
| Baud rate | 1200, 2400, 4800, 9600 (default), 19200 bps |
| Measured values | import/export active and reactive energy (kWh, kvarh), instantaneous power (kW, kvar, kVA), current, voltage, frequency, power factor |
| Display | 6 characters, 7 segments, digit size 5.9 x 12.4 mm |
| Pulse output | LED pulse indication |
| Compliance | EN 50470-1/-3, MID B+D certified |
| Operating temperature | -25 ... 55 °C |
| Storage temperature | -35 ... 70 °C |
| Maximum relative humidity | 95 %, non-condensing |
| Ingress protection | IP20 |
| Mounting | DIN rail |
| Dimensions (height x width x depth) | 100 x 36 x 65.5 mm |
| Weight | 0.22 kg (approx.) |
Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
