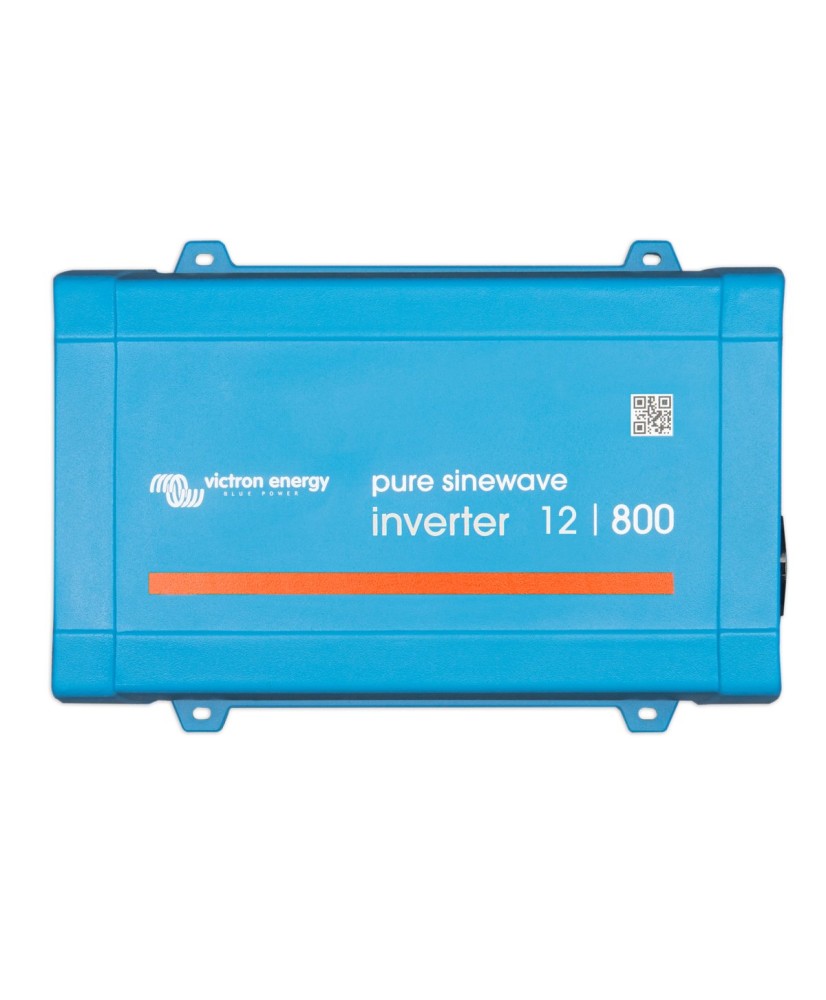

Inverter 12/800 230V VE.Direct IEC - Inverter 12 V to 230 V, 800 VA
The Inverter 12/800 230V VE.Direct IEC powers 230 V household equipment from 12 V leisure or automotive batteries, delivering 650 W continuous and 1,500 W peak power. It features a VE.Direct port, an ECO mode drawing only 1 W and an IEC-320 output socket. It is short-circuit proof and protected against overheating.
Main features:
- Battery voltage: 12 V (9.2-17 V)
- Continuous power: 800 VA / 650 W at 25 °C
- Peak power: 1,500 W, for LED converters, halogen lamps, power tools
- AC output: 230 V, 50 Hz, adjustable 210-245 V
- Maximum efficiency: 90 %
- Communication port: VE.Direct
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| Continuous output power at 25 °C (VA) | 800 VA |
|---|
| Continuous output power at 25 °C (W) | 650 W |
|---|
| Continuous output power at 40 °C | 560 W |
|---|
| Peak power | 1500 W |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50 Hz |
|---|
| DC input voltage range | 9.2 … 17 V |
|---|
| DC low shutdown | 9.3 V |
|---|
| DC low restart and alarm | 10.9 V |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Battery charged detection voltage | 14 V |
|---|
| Maximum efficiency | 90 % |
|---|
| Zero load power | 6.5 W |
|---|
| Zero load power in ECO mode | 1 W |
|---|
| ECO mode retry interval | 2.5 s |
|---|
| ECO mode stop/start power setting | Adjustable |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Protections | Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Maximum humidity | 95 % |
|---|
| Power derating | 1.25 % |
|---|
| AC outlet socket | IEC-320 (male plug included) |
|---|
| Battery connection terminals | Screw terminals 25 mm² (4 AWG) |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Steel chassis and plastic cover |
|---|
| Protection category | IP21 |
|---|
| Weight | 5.5 kg |
|---|
| Height | 105 mm |
|---|
| Width | 230 mm |
|---|
| Depth | 325 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
|---|
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-4 |
|---|
